Description
Product Overview

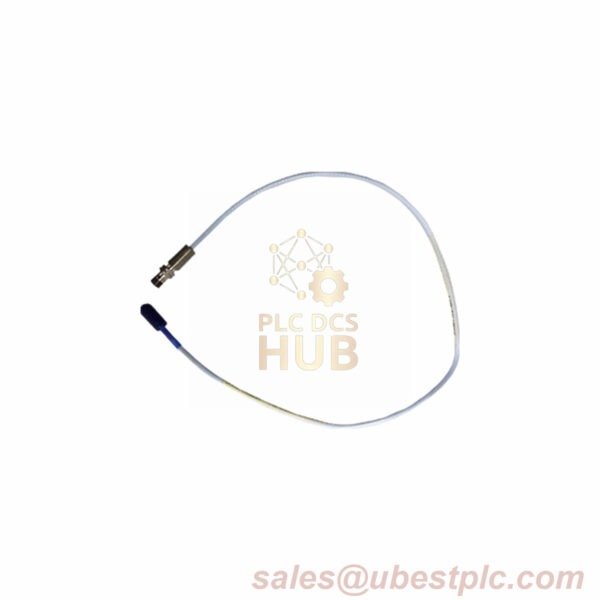

The Bently Nevada 330141-08-10-12-05 is an ATEX/CSA/IECEx-certified armored probe with FluidLoc™ leak-proof technology. Featuring a 1.0m armored cable and 0.8″ stainless steel housing, it operates from -52°C to +260°C, designed for extreme conditions in hazardous areas like offshore platforms and chemical plants.
Technical Specifications
Manufacturer/Model: Bently Nevada 330141-08-10-12-05
Configuration Code:
– 08: 20.3mm (0.8″) armored case
– 10: 1.0m (3.3ft) total length
– 12: FluidLoc cable + ClickLoc connector
– 05: CSA/ATEX/IECEx certifications
Core Performance:
DC Resistance: 7.59Ω ±0.5 @ 1.0m
Measurement Range: 0.25-1.75mm (±0.025mm)
Frequency Response: 0.5Hz-10kHz (±3dB)
Temperature Limits:
– Probe Tip: -52°C to +218°C
– Cable Assembly: -51°C to +260°C
Armor Material: AISI 302 SST with FEP jacket
Industrial Applications
- Offshore oil & gas compressors (Zone 1)
- Chemical processing reactors
- Steam turbine vibration monitoring
Contact Information
For COO requests and technical documents:
Email: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
