Bently Nevada – 330141-08-20-11-05 3300 XL 8 mm Proximity Probes

Description

Overview

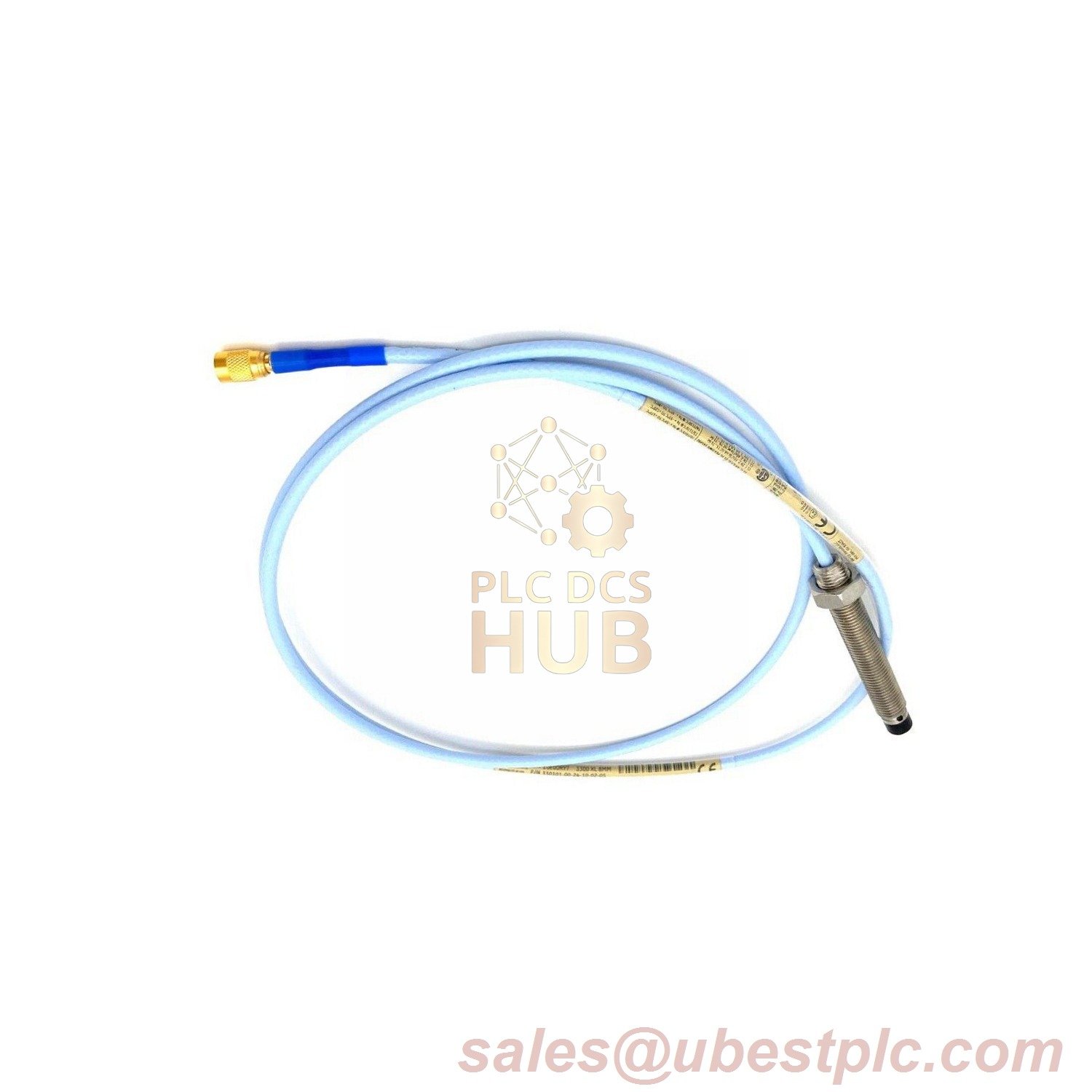

The Bently Nevada 3300 XL 8 mm Armored Probe (Model 330141-08-20-11-05) is a certified, heavy-duty sensor designed for hazardous and fluid-prone industrial environments. Featuring CSA, ATEX, and IECEx approvals, this probe combines explosion-proof compliance with rugged FluidLoc cable technology to prevent fluid ingress. Its 2.0-meter armored cable with a ClickLoc connector protector ensures secure connectivity in high-vibration machinery, while the 8 mm PPS plastic tip and stainless steel armor resist mechanical stress.

Technical Specifications

• Brand: Bently Nevada
• Model: 330141-08-20-11-05
  • Suffix Breakdown:
    • 08: 0.8-inch case length
    • 20: 2.0-meter cable (6.6 feet)
    • 11: ClickLoc connector with protector + FluidLoc cable
    • 05: CSA, ATEX, IECEx certifications
• Probe Tip: Polyphenylene sulfide (PPS)
• Armor Material: 316L stainless steel braid (0.5 mm thickness)
• Fluid Resistance: IP67-rated (submersion up to 1 meter for 30 minutes)
• Shock Resistance: 75 g peak (6 ms, IEC 60068-2-27)
• Cable Shielding: Double-layer copper braid for EMI/RFI protection (90% coverage)
• Torsional Flexibility: ±180° twist tolerance without signal degradation
• UV Resistance: UV-stable jacket (MIL-STD-810G, 1,000 hours xenon arc testing)
• Response Time: <0.8 ms for high-speed monitoring
• Installation Options: M12x1 threaded mount or flange bracket (included)
• Mean Time Between Failures (MTBF): 100,000 hours under operational stress

Contact Information

For certification documents and technical support:
Email: sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
