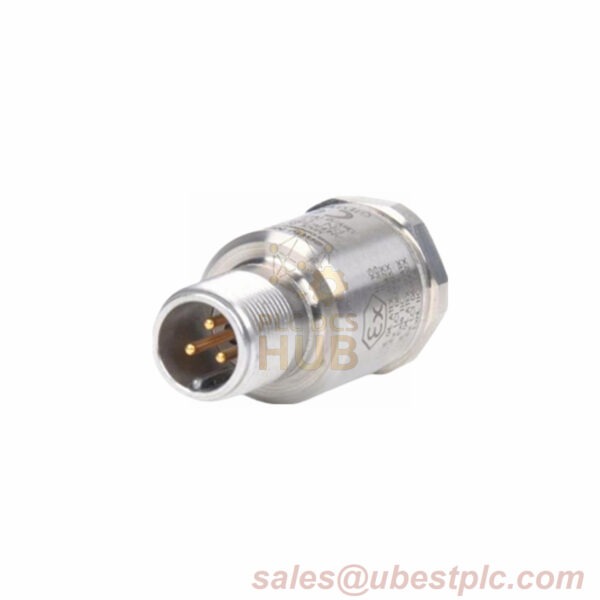

Bently Nevada 330425-02-CN | Accelerometer Acceleration Transducer

Description

Description

The Bently Nevada 330425-02-CN Accelerometer is a high-precision, CN-certified industrial sensor engineered for rigorous environments. With a sensitivity of 10.2 mV/m/s² ±5% and a robust 316L stainless steel housing, this accelerometer excels in extreme conditions, operating from -55°C to +121°C and surviving shocks up to 5000 g. Its IP68-rated sensor body ensures dust/water resistance, while the M8 threading and MIL-C-5015 connector guarantee secure installations. Optional Certificate of Origin (COO) available.

Technical Specifications

• Model: 330425-02-CN
• Certifications: CN Country Specific
• Mounting: M8 × 1 integral stud
• Electrical:
  • Sensitivity: 10.2 mV/m/s² ±5% (100 mV/g)
  • Acceleration Range: 50 g peak (10 Hz–15 kHz)
  • Noise Floor: 0.004 g rms
  • Frequency Response: 10 Hz–15 kHz (±3dB)
• Environmental:
  • Temperature Range: -55°C to +121°C (-67°F to +250°F)
  • Shock Survivability: 5000 g peak
  • Humidity: 100% condensing (IEC 68-2-3 tested)
  • IP Rating: 68 (sensor body only)
• Physical:
  • Weight: 100 g (3.5 oz)
  • Dimensions: 23mm diameter × 59mm height
  • Mounting Torque: 4.1 N·m (3.0 ft·lb)
  • Connector: 3-pin MIL-C-5015
