Description

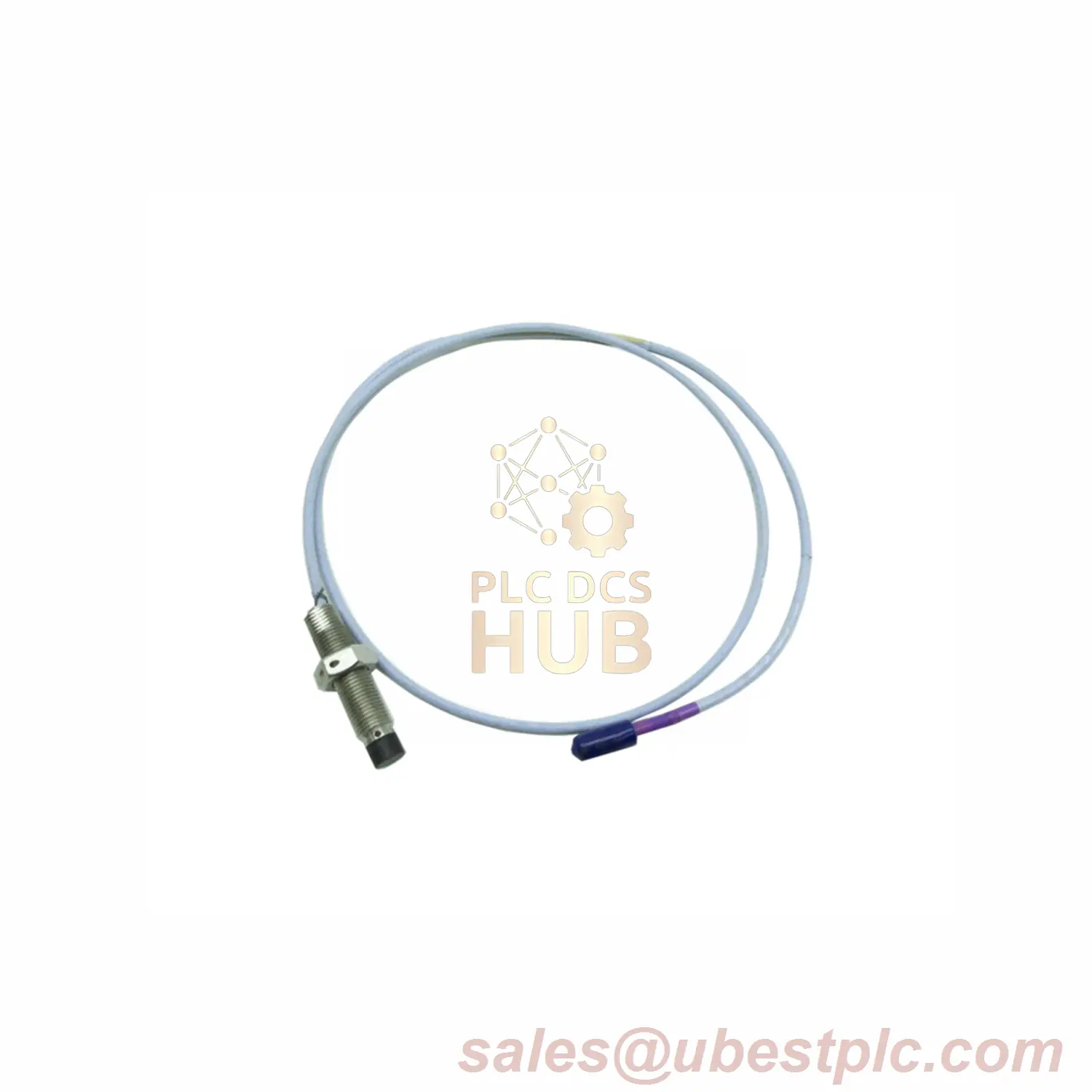

Bently Nevada Long-Reach Vibration Sensor
5-meter industrial-grade probe for critical machinery monitoring. Made in USA. 12-month warranty. Ships via FedEx/UPS/DHL.
Product Configuration
- Base: 330701 (11mm probe)
- Unthreaded: 00 = 0 inches
- Case: 20 = 2.0 inch length
- Cable: 50 = 5.0 meters
- Connector: 02 = Standard ClickLoc
- Approvals: 00 = Not required
Key Specifications
- Electrical Resistance: 7.2Ω ±0.8
- Thread Size: 1/2-20 UNF
- Thread Engagement: Max 0.750 inch
- Cable Type: Standard triaxial
- Min Bend Radius: 25.4mm
- Shipping Weight: 0.17kg
Performance Data
- Temp Range: -51°C to +177°C
- Recommended Torque: 15.2 N•m
- Max Torque: 45.2 N•m
- Connector Torque: Finger tight only
- Seal Material: Viton O-ring
Installation Guide
- Must connect to 5m Proximitor sensors only
- Allow cable slack near connection points
- Use torque wrench for proper installation
- Keep storage temp above -34°C
- Check resistance before operation
Compatibility Notes
- Bently Nevada 3300 monitoring systems
- ClickLoc connector interfaces
- 5-meter compatible equipment only
- Not for short-range sensors
Certifications
- No special approvals required
- Optional Certificate of Origin
- Industrial standard compliance
Package Contents
- Vibration probe with 5m cable
- ClickLoc connector
- Installation guide
- 12-month warranty card
Support & Delivery
- 12-month product warranty
- Express global shipping options
- Tracking with all carriers
- Light protective packaging
Frequently Asked Questions
Q: Can I use this with 1m sensor systems?
A: No – requires matching 5m Proximitor
Q: How to test before installation?
A: Measure resistance between center and outer conductor
Q: Is extra cable length available?
A: Standard lengths only – no extensions
Q: Can it monitor high-speed equipment?
A: Yes – designed for RPM monitoring
