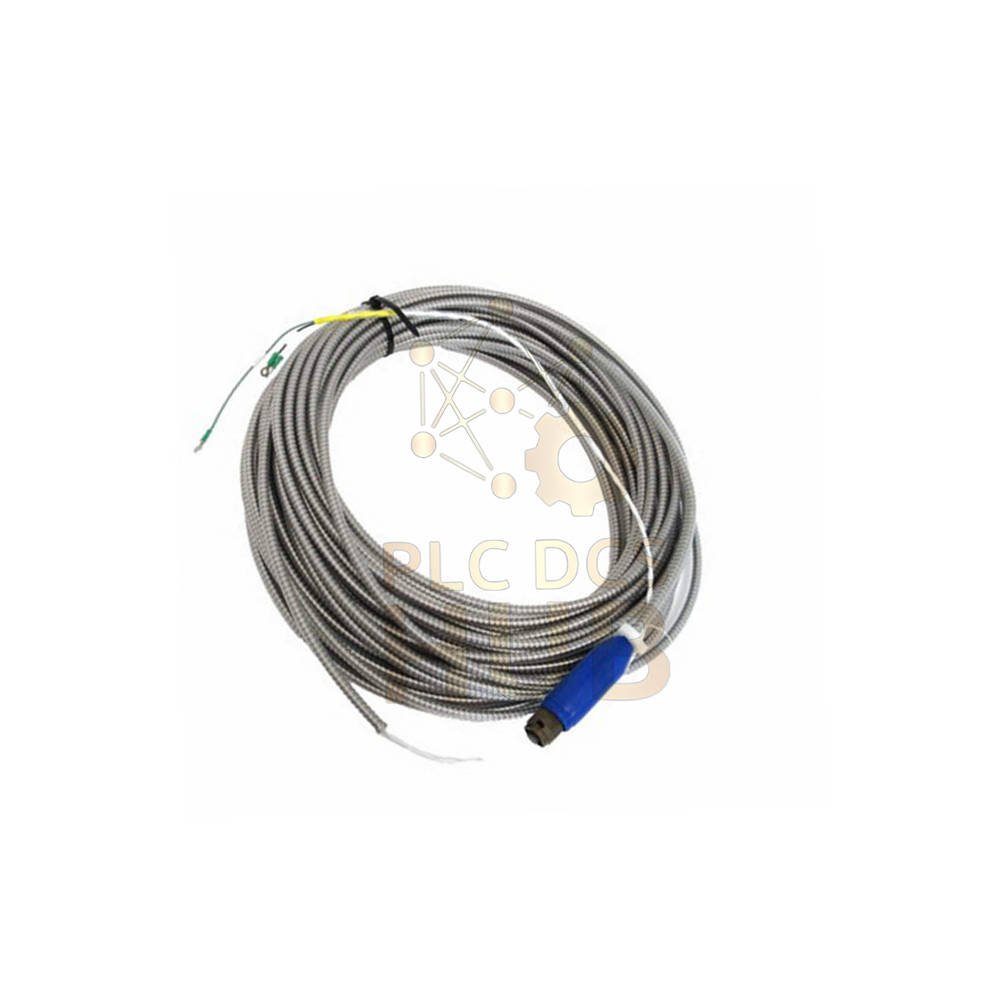

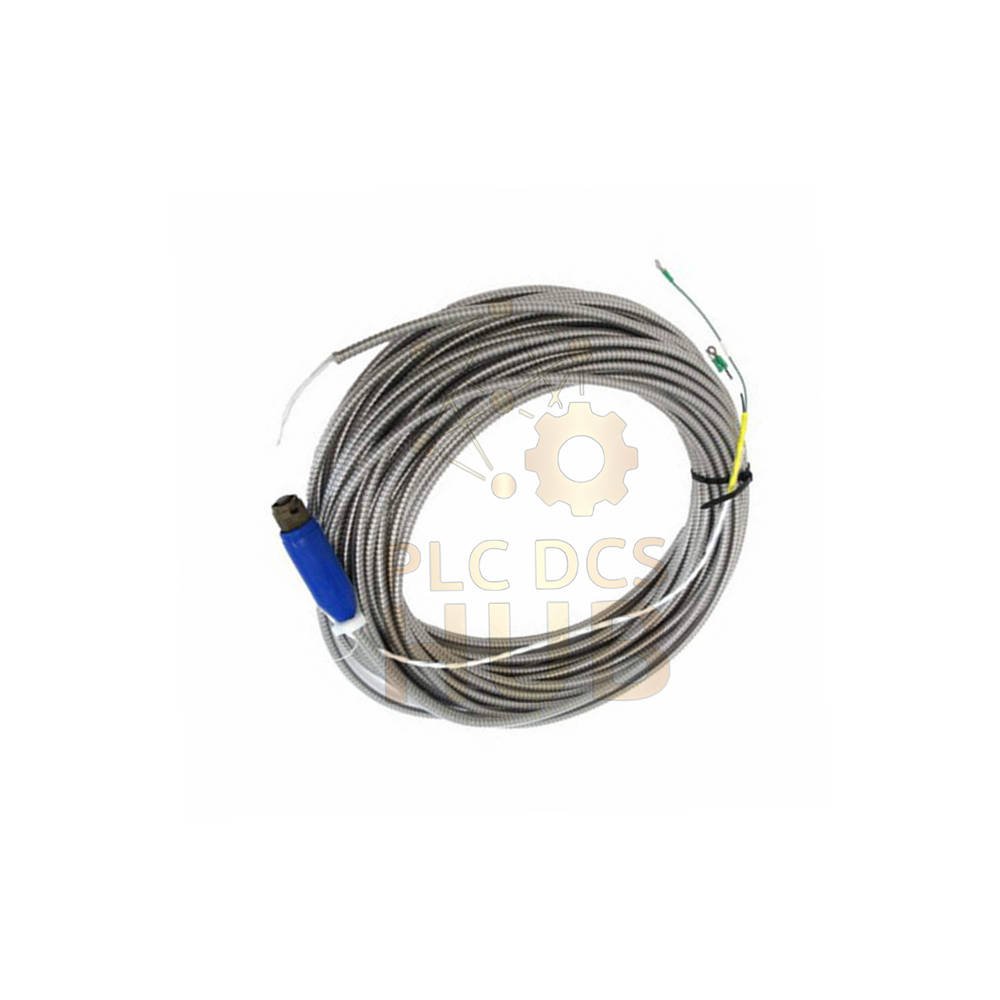

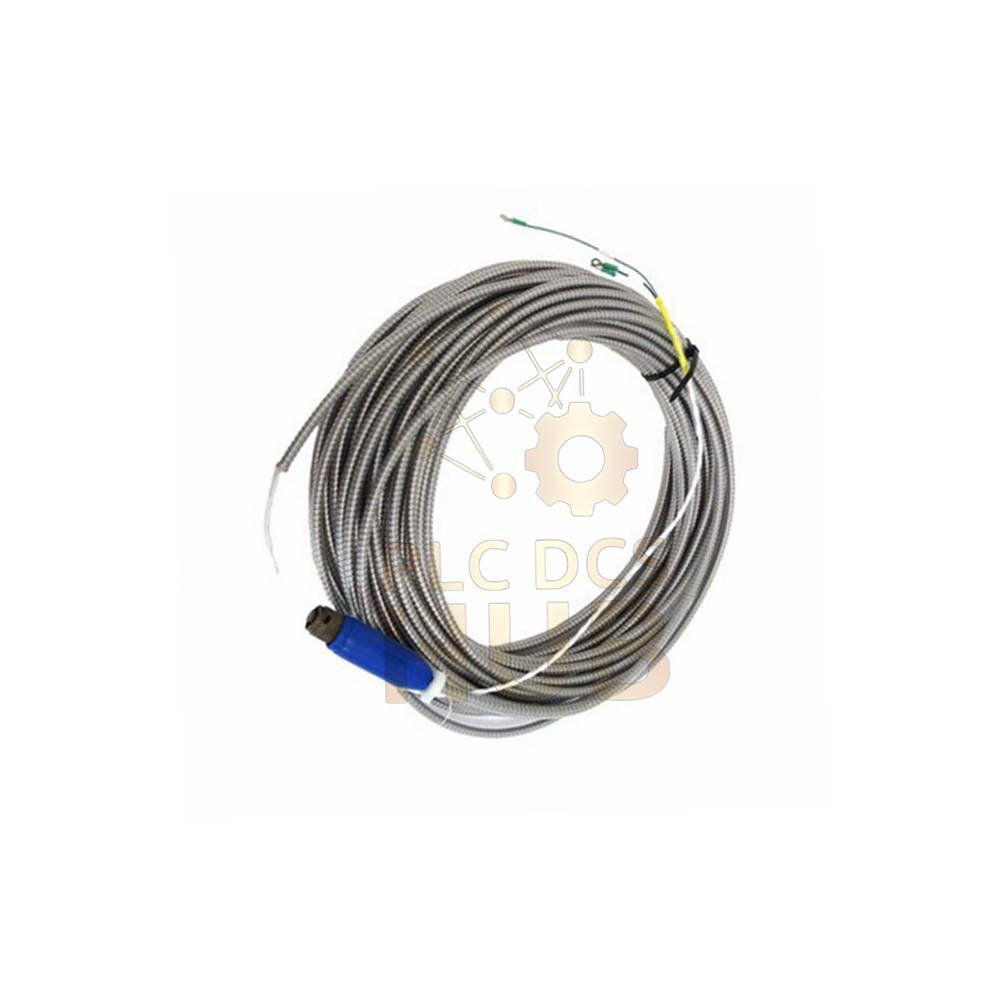

Bently Nevada 330706 3300 XL 11 mm Reverse Mount Probe

Description

Product Overview

The 3300 XL 11 mm Proximity Probes series includes this reverse mount model. Bently Nevada makes this 330706-005-046-10-00-00 probe. It fits tight spaces where standard probes cannot go. The design mounts from behind the target. You get reliable vibration and position data.

Model Number Breakdown

• 330706-005-046-10-00-00
• 330706 = 3300 XL 11 mm Reverse Mount Probe, M10 x 1 thread
• 005 = Unthreaded length option (5 mm typical for reverse mount)
• 046 = Overall case length (46 mm)
• 10 = Total length 1.0 meter (3.3 feet)
• 00 = Miniature ClickLoc coaxial connector
• 00 = Agency approval not required

Quick Specs

• Brand: Bently Nevada
• Model: 330706-005-046-10-00-00
• Type: 3300 XL 11 mm Reverse Mount Probe
• Thread size: M10 x 1
• Total probe length: 1.0 meter (3.3 feet)
• Connector type: Miniature ClickLoc coaxial
• Weight: 0.07 kg
• Made in: U.S.A.

Technical Data

• Probe DC resistance (RPROBE): 5.9 ± 0.5 ohms for 1.0m length
• Probe tip material: Polyphenylene sulfide (PPS)
• Probe case material: AISI 304 stainless steel (SST)
• Cable specification: 75 ohm triaxial FEP insulated
• Operating & storage temperature: -51°C to +177°C (-60°F to +351°F)
• Caution: Below -34°C (-30°F) may damage pressure seal
• Connector-to-connector torque: Finger tight recommended, max 0.565 N•m (5 in•lb)
• Minimum bend radius: 25.4 mm (1.0 inch)
• Maximum rated probe case torque: 22.6 N•m (200 in•lb)
• Recommended probe case torque: 7.5 N•m (66 in•lb)
• Pressure sealing: Viton O-ring, not pressure tested before shipment

Installation Notes

• Use M10 x 1 threaded holes only.
• Tighten case to 7.5 N•m (66 in•lb).
• Do not exceed 22.6 N•m (200 in•lb).
• Keep bend radius above 25.4 mm (1.0 inch).
• Finger tighten the connector only.
• Contact our custom design team if you need pressure seal testing.
• Need help? +86 158 8020 0923 (WhatsApp)

Maintenance & Care

• Check DC resistance between center and outer conductor.
• Expected value: 5.9 ± 0.5 ohms for 1m probe.
• Look for cuts or kinks in the cable.
• No routine calibration needed.
• Wipe tip with a soft dry cloth.

Compatibility

• Works with Bently Nevada Proximitor Sensors.
• Fits most industrial vibration monitors.
• Best paired with 3300 XL 11 mm systems.

Certifications

• Agency approval: Not required (00).
• Materials meet industrial SST and PPS standards.
• Made in U.S.A.

What’s in the Box

• One 3300 XL 11 mm reverse mount probe (1m cable with ClickLoc connector)
• No printed manual – available online

Warranty & Delivery

• 12-month warranty from shipment date.
• Covers factory defects only.
• Shipping via FedEx, UPS, or DHL.

Common Uses & Fault Detection

• Measure vibration in steam turbines.
• Check rotor position in compressors.
• Monitor thrust in pumps.
• Find unbalance, misalignment, and rubbing.
• Works with online systems for instant warnings.

Professional FAQ

• Is this probe different from a standard 11 mm probe? Yes. This is a reverse mount design. It installs from behind the target. Use it when front access is blocked.
• Can I pressure test this probe myself? Bently Nevada does not test it before shipping. Contact their custom design department if your job needs a test.
• What happens if I overtighten the connector? The max torque is 0.565 N•m (5 in•lb). Overtightening can break the connector.
• Experience: The cable is too short. Can I extend it? No. Use a 5m or 9m probe instead. Extending the cable changes resistance and causes errors.
• Selection guide: Which thread should I pick – M10 or M16? Pick M10 for small machines with tight mounting space. Pick M16 for larger industrial frames.
