Bently Nevada 330730-040-01-05 | 3300 XL Extension Cable

Description

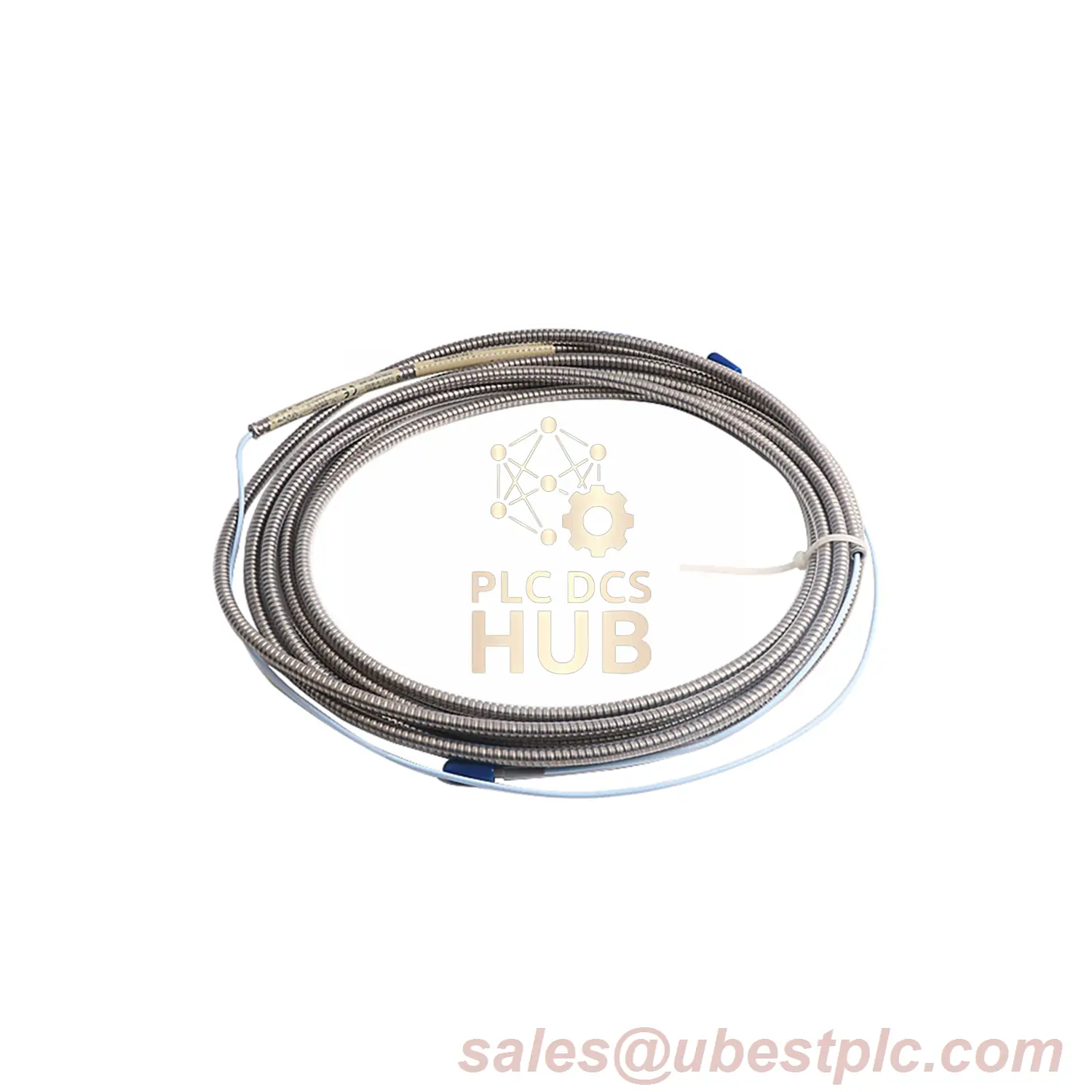

Bently Nevada 3300 XL Extension Cable: Heavy-Duty Armored Connection Solution

4.0 meter armored triaxial cable with multiple international approvals for industrial vibration monitoring. Rated for -52°C to +177°C. Made in USA.

Download product information:

• Installation Guide (PDF)
• Technical Specifications Sheet

Product Identification

• Part Number: 330730-040-01-05
• Configuration Code:
  • 040 → 4.0 meter length (13.1 feet)
  • 01 → Stainless steel armored cable
  • 05 → Multiple agency approvals

Technical Specifications

• Temperature Range: -52°C to +177°C (-62°F to +351°F)
• Cable Type: 75Ω triaxial
• Capacitance: 69.9 pF/m (21.3 pF/ft)
• DC Resistance:
  • Core-to-core: 1.0Ω ±0.25
  • Shield-to-shield: 0.3Ω ±0.1
• Armor Material: AISI 302 stainless steel
• Insulation: FEP fluoropolymer
• Weight: 140 g/m (0.56kg total)
• Tensile Strength: 330N (75 lbs)

Shipping & Support

• 12-month warranty
• Worldwide shipping via FedEx/UPS/DHL
• Includes silicone sealing tape
• Technical support available

Technical Questions

• Q: What approvals does option 05 include?
  A: Meets multiple international industrial standards
• Q: Can this cable be used outdoors?
  A: Yes, with proper weather protection
• Q: Minimum bend radius?
  A: Minimum 5x cable diameter
• Q: Is the armor flexible?
  A: Yes, designed for industrial flexibility
• Q: Can I order custom lengths?
  A: Standard lengths only to maintain performance

Product Highlights

4m Armored
Multi-Approved
-52°C to +177°C
Gold Connectors
