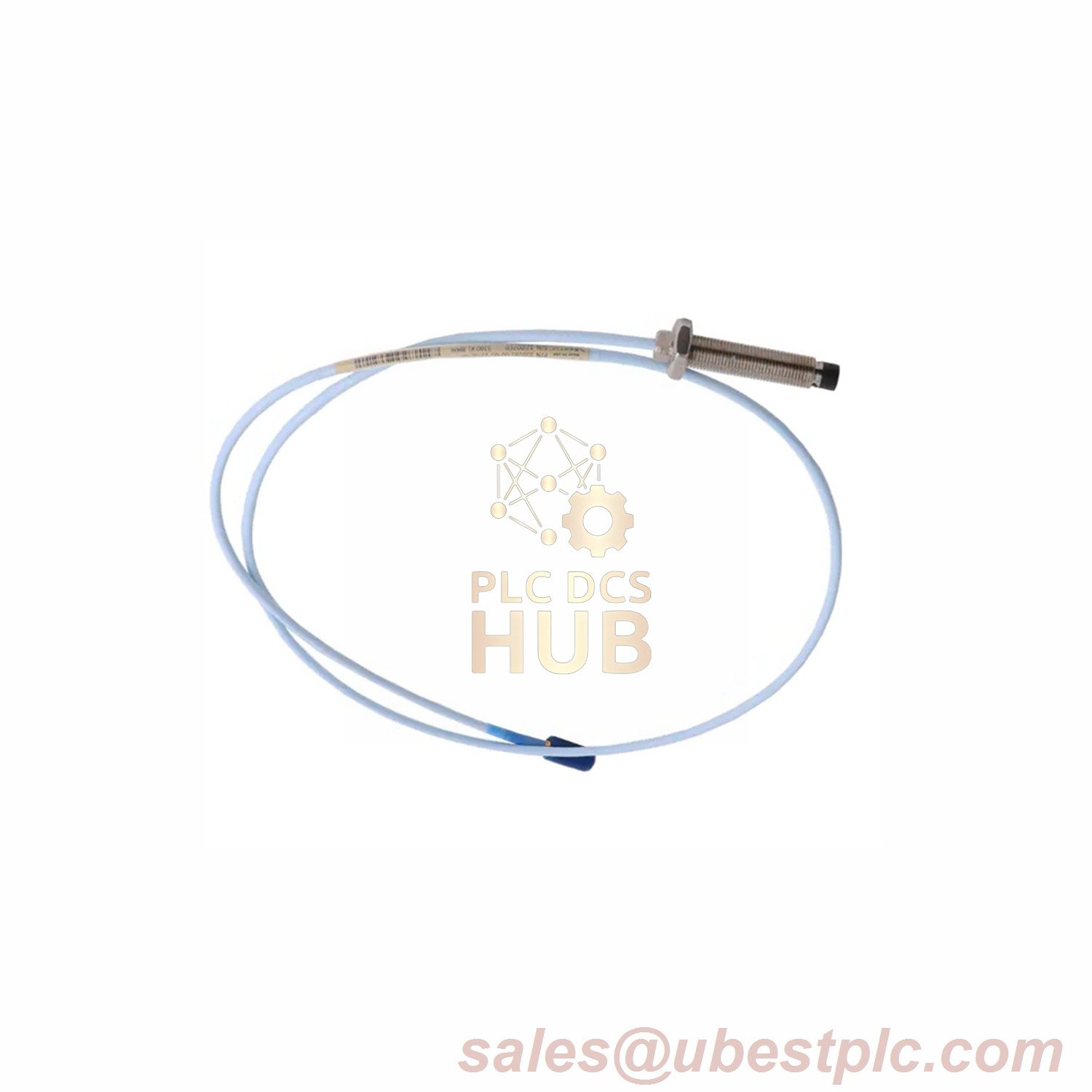

Bently Nevada – Proximity Probes 330141-08-50-01-00 With Armor

Description

Product Overview

The Bently Nevada 3300 XL 8 mm Armored Probe (Model 330141-08-50-01-00) is engineered for industrial applications requiring extended cable reach and rugged durability. Featuring a 5.0-meter armored cable with a ClickLoc connector protector, this probe ensures reliable performance in high-vibration and mechanically demanding environments. Its stainless steel armor and 8 mm PPS plastic tip provide exceptional resistance to physical stress, while optional FluidLoc technology prevents fluid ingress.

Technical Specifications

• Brand: Bently Nevada
• Model: 330141-08-50-01-00
  • Suffix Breakdown:
    • 08: 0.8-inch case length
    • 50: 5.0-meter cable (16.4 feet)
    • 01: ClickLoc connector with protector + standard cable
    • 00: No agency certifications required
• Probe Tip: Polyphenylene sulfide (PPS)
• Armor Material: 304 stainless steel braided shielding (0.5 mm thickness)
• Temperature Range:
  • Standard: -62°F to +350°F (-52°C to +177°C)
  • Extended: Tip up to +425°F (+218°C); cable/connector up to +500°F (+260°C)
• DC Resistance: 8.73 Ω ±0.50 (5.0-meter length)
• Scale Factor: 7.87 V/mm ±5% (1/5m systems)

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
