Description
Description

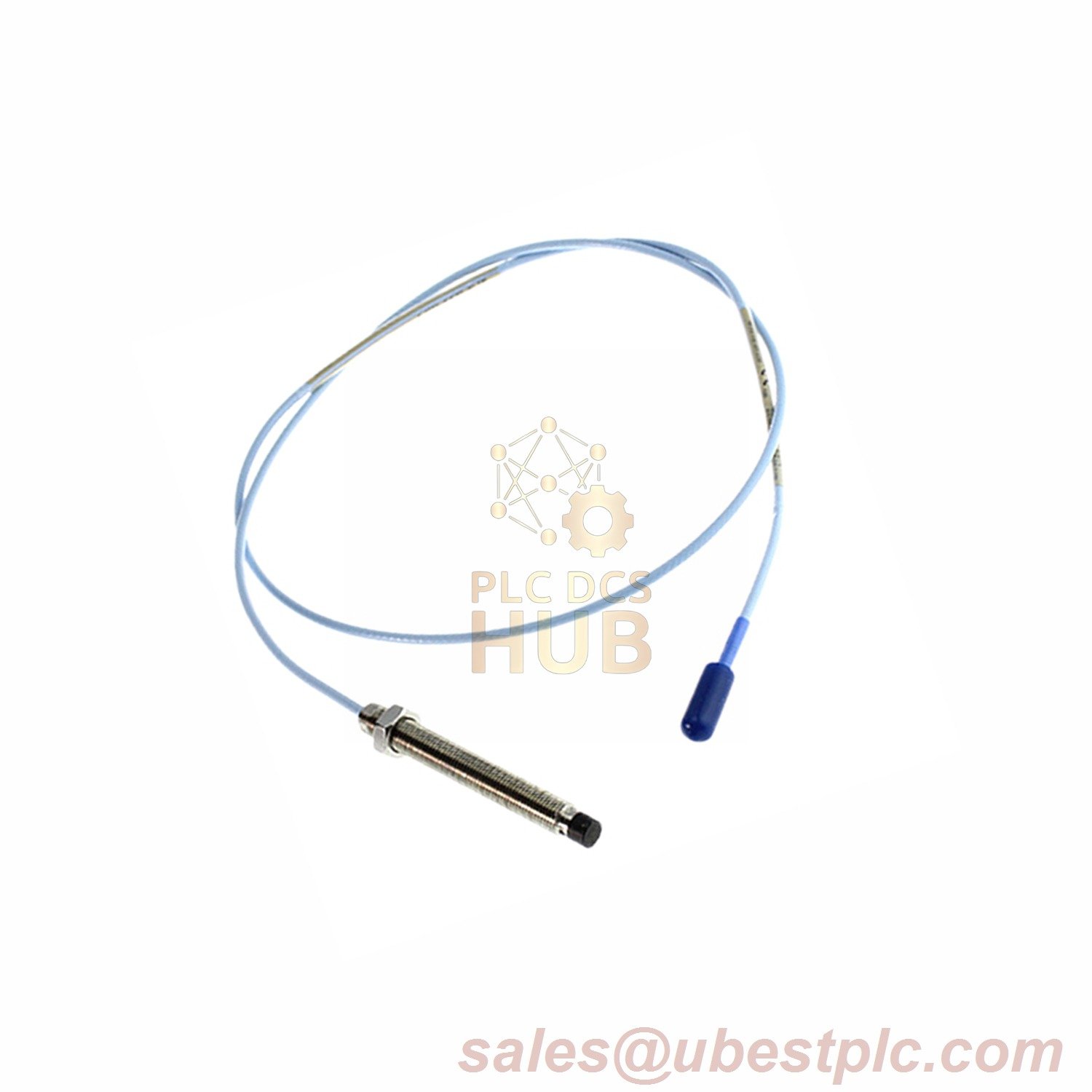

The Bently Nevada 3300 XL 8mm Probe with Armor (Model 330141-08-30-12-05) is a high-performance proximity sensor designed for industrial applications requiring ruggedness and precision. Featuring patented TipLoc and CableLoc technologies, it ensures superior durability with a robust bond between the probe tip and body, along with 330 N (75 lbf) pull strength for secure cable attachment. The optional FluidLoc cable prevents fluid ingress, enhancing reliability in oil-rich environments. Encapsulated in PPS plastic and housed in AISI 303/304 stainless steel, the 8mm design offers exceptional physical resistance, making it ideal for harsh operating conditions.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model Number | 330141-08-30-12-05 |
| Suffix Information | -08: 0.8″ overall case length -30: 3.0m total cable length -12: Miniature coaxial ClickLoc connector with FluidLoc cable -05: CSA, ATEX, IECEx certifications |
| Nominal DC Resistance | 8.17 ± 0.50 Ω (3.0m length) |
| Incremental Scale Factor | 7.87 V/mm ±5% (Standard 5/1m systems) ±6.5% (9m/ETR systems) |
| Deviation from DSL | ±0.025 mm (Standard 5/1m) ±0.038 mm (9m/ETR) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Temperature Range | Standard: -52°C to +177°C ETR Probe Tip: -52°C to +218°C |
| Weight | 323 g/m (11.4 oz) |
| Agency Approvals | CSA, ATEX, IECEx |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
