Description
Overview

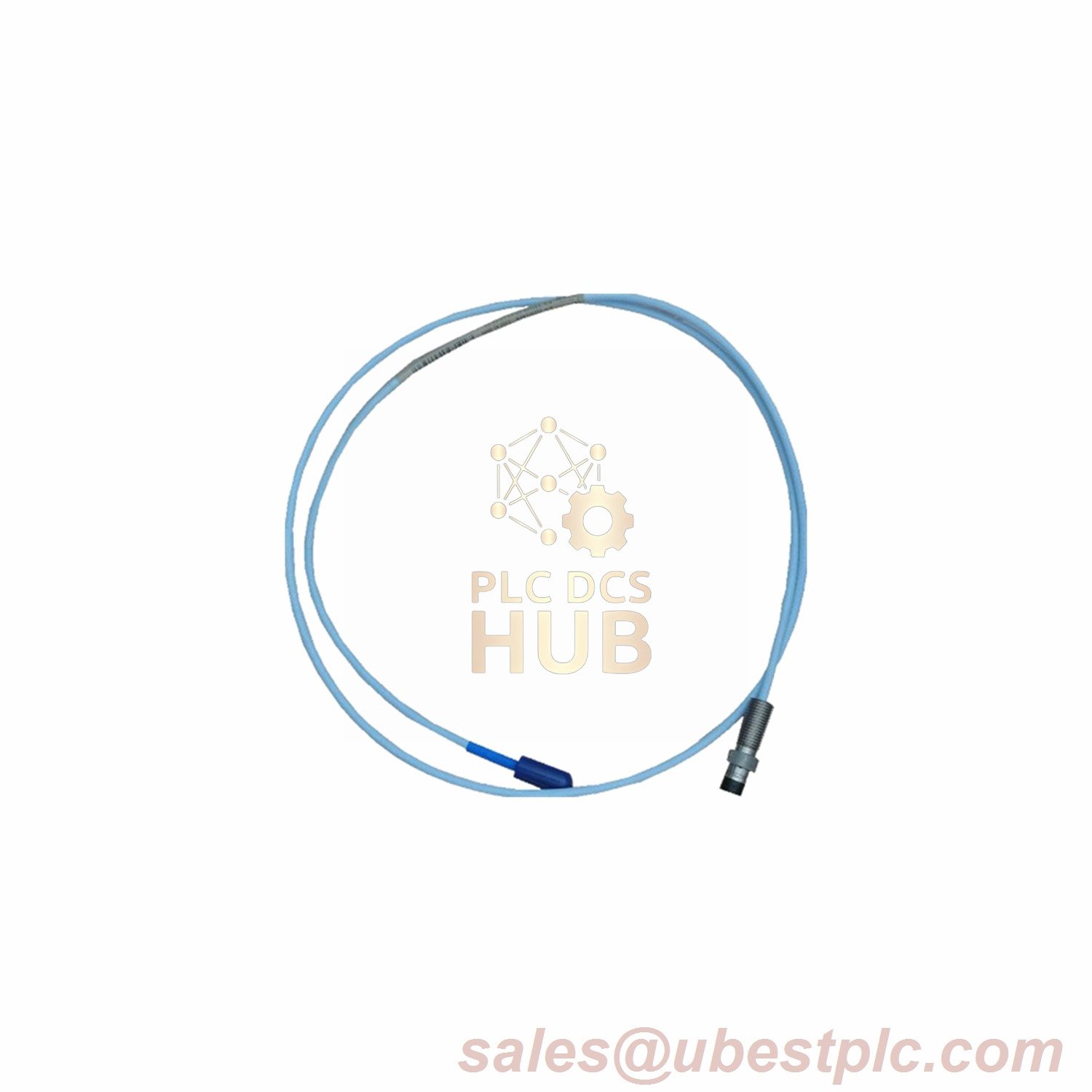

The Bently Nevada 3300 XL 8 mm Probe (Product No. 330140-08-30-11-00) is designed for extended-reach, fluid-prone industrial environments. Featuring a 3.0-meter FluidLoc cable and ClickLoc connector with protector, it ensures secure connections while preventing oil and liquid ingress. Built with a rugged PPS plastic tip and stainless steel casing, this probe excels in harsh conditions, supported by patented TipLoc and CableLoc technologies.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Probe
- 330140-08-30-11-00 Suffix Breakdown:
- 08: 0.8-inch case length
- 30: 3.0-meter cable (9.8 feet)
- 11: ClickLoc connector with protector + FluidLoc cable
- 00: No certifications required
- DC Resistance: 8.18 Ω ±0.48 (3.0m cable)
- Scale Factor (ISF):
- Standard (1/5m): 7.91 V/mm ±4.6%
- Extended (9m): 7.91 V/mm ±6.2%
- Materials: PPS tip, AISI 321 stainless steel case
- Temperature Range:
- Standard: -53°C to +188°C (-63°F to +370°F)
- Extended: -53°C to +235°C (tip); -56°C to +275°C (cable/connector)
- Weight: 340 g/m (12.0 oz/ft)
- Pull Strength: 360 N (81 lbf) via CableLoc
Contact Information
For inquiries or custom configurations, email sales@ubestplc.com. Our team will gladly assist with technical details or order processing.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
