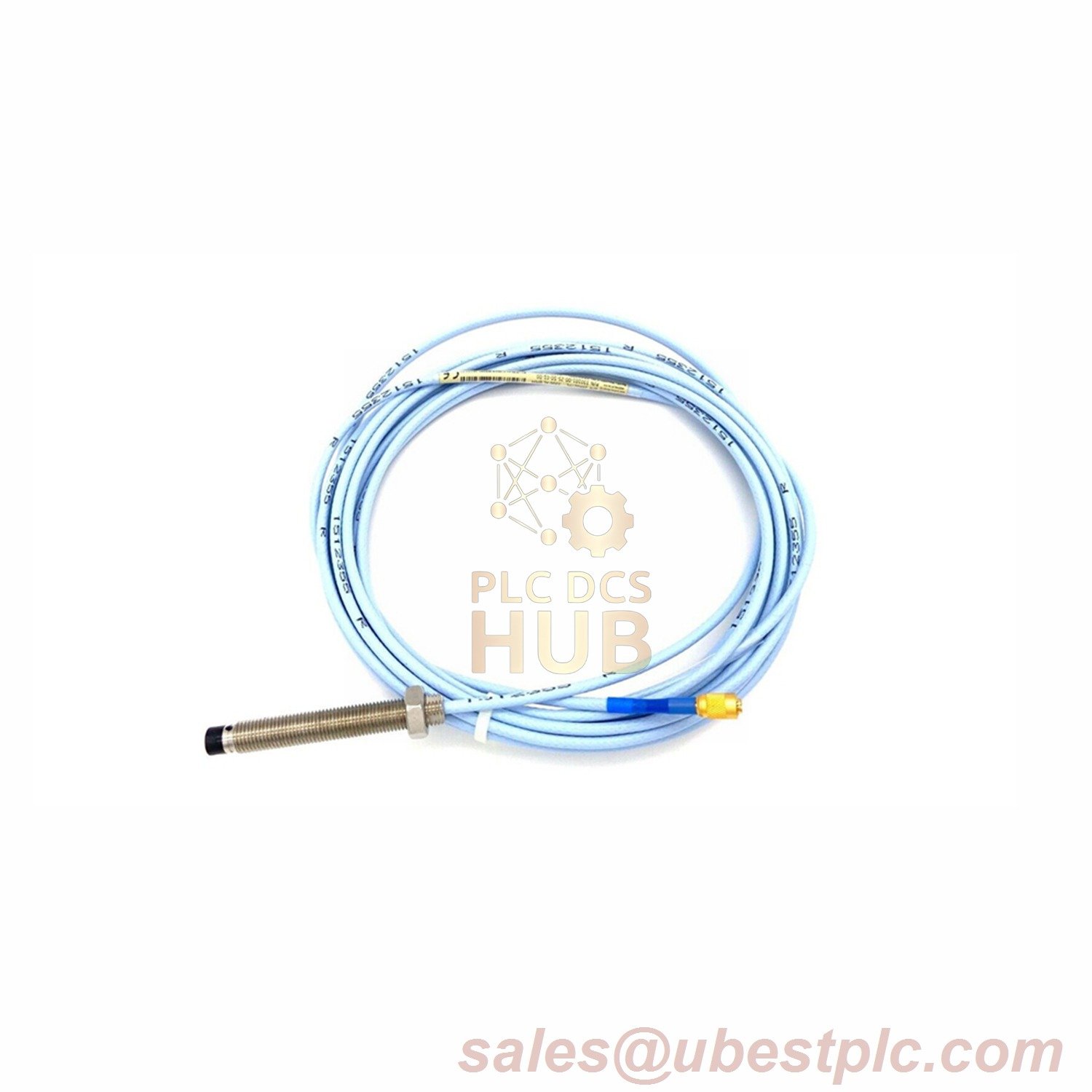

The Bently Nevada 330141-08-20-02-05 is an 8 mm armored proximity probe engineered for precision vibration monitoring in hazardous and demanding industrial environments. Featuring CSA, ATEX, and IECEx certifications, this probe meets global safety standards. Its patented TipLoc™ and CableLoc™ technologies ensure exceptional durability, 330 N (75 lbf) pull strength, and reliable performance under extreme conditions. The standard cable with ClickLoc connector offers flexibility, while the PPS plastic tip and stainless steel casing deliver unmatched resistance to wear and corrosion.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model/Suffix | 330141-08-20-02-05 (08: 0.8″ Case Length; 20: 2.0m Cable; 02: Standard Cable; 05: CSA/ATEX/IECEx Certified) |
| Agency Approvals | CSA, ATEX, IECEx (Hazardous Environment Compliance) |
| Probe Material | PPS Tip, AISI 303/304 Stainless Steel Case |
| Cable Type | Standard Coaxial with ClickLoc Connector |
| Temperature Range | -52°C to +177°C (Standard Probe Tip); -51°C to +260°C (Cable/Connector) |
| Linear Range | 0.25 mm increments (10 mils) over 2.03 mm (80 mils) |
| Frequency Response | 10 Hz to 10 kHz (±3 dB) |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Shock Resistance | 100 g Peak (11 ms Duration) |
| Vibration Resistance | 15 g RMS (10 Hz to 2 kHz) |
| Humidity Resistance | <3% ASF Variation (93% RH, 56 Days per IEC 68-2-3) |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
