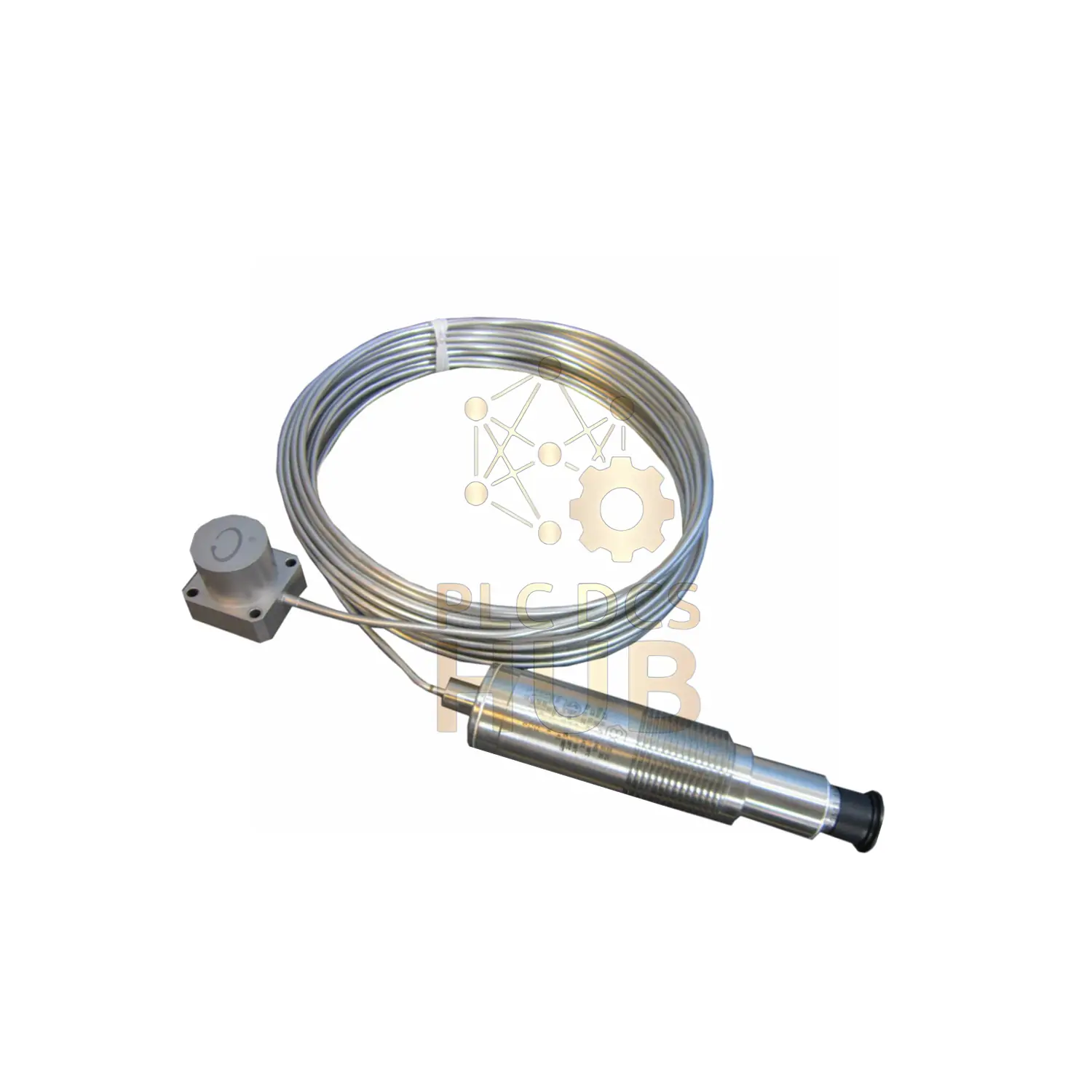

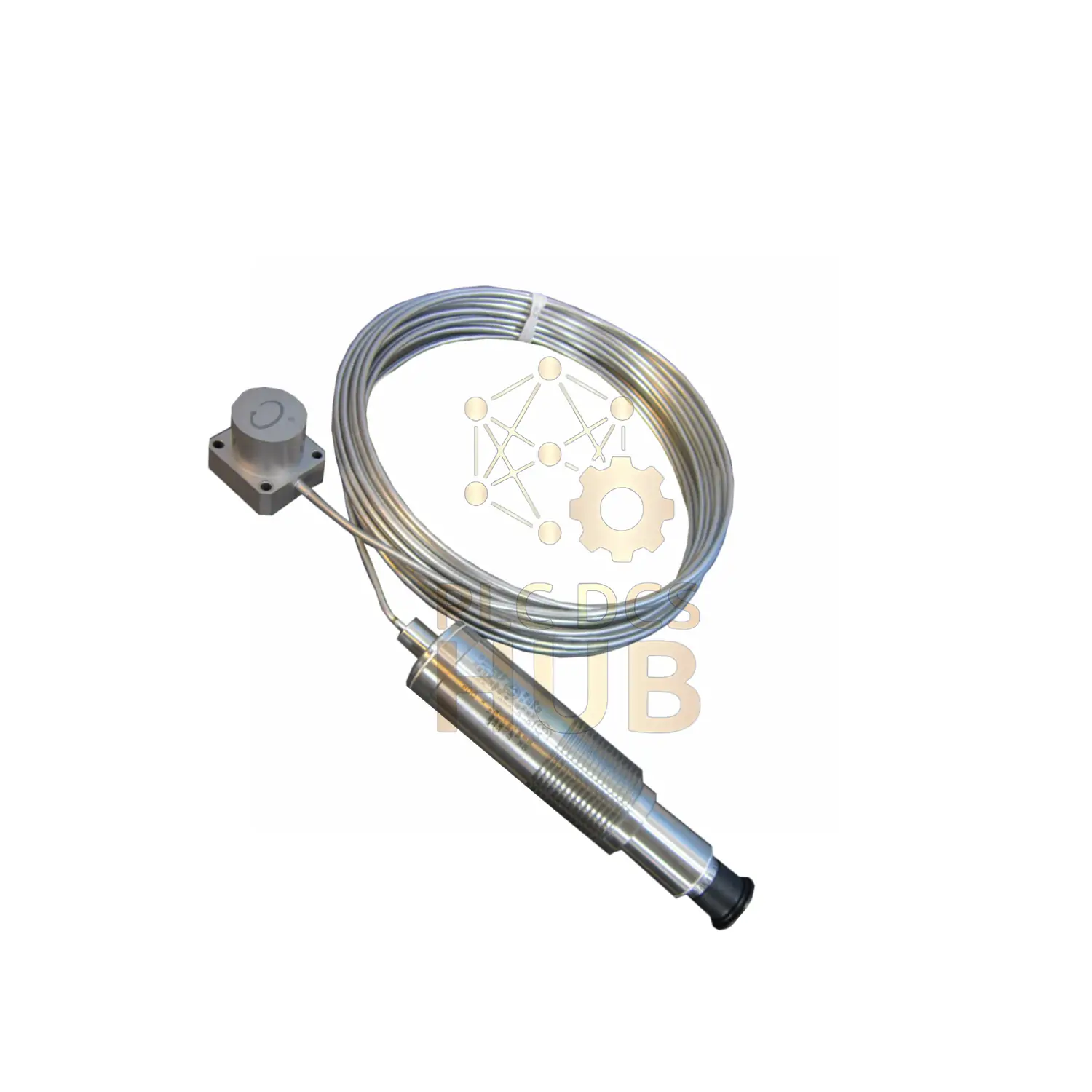

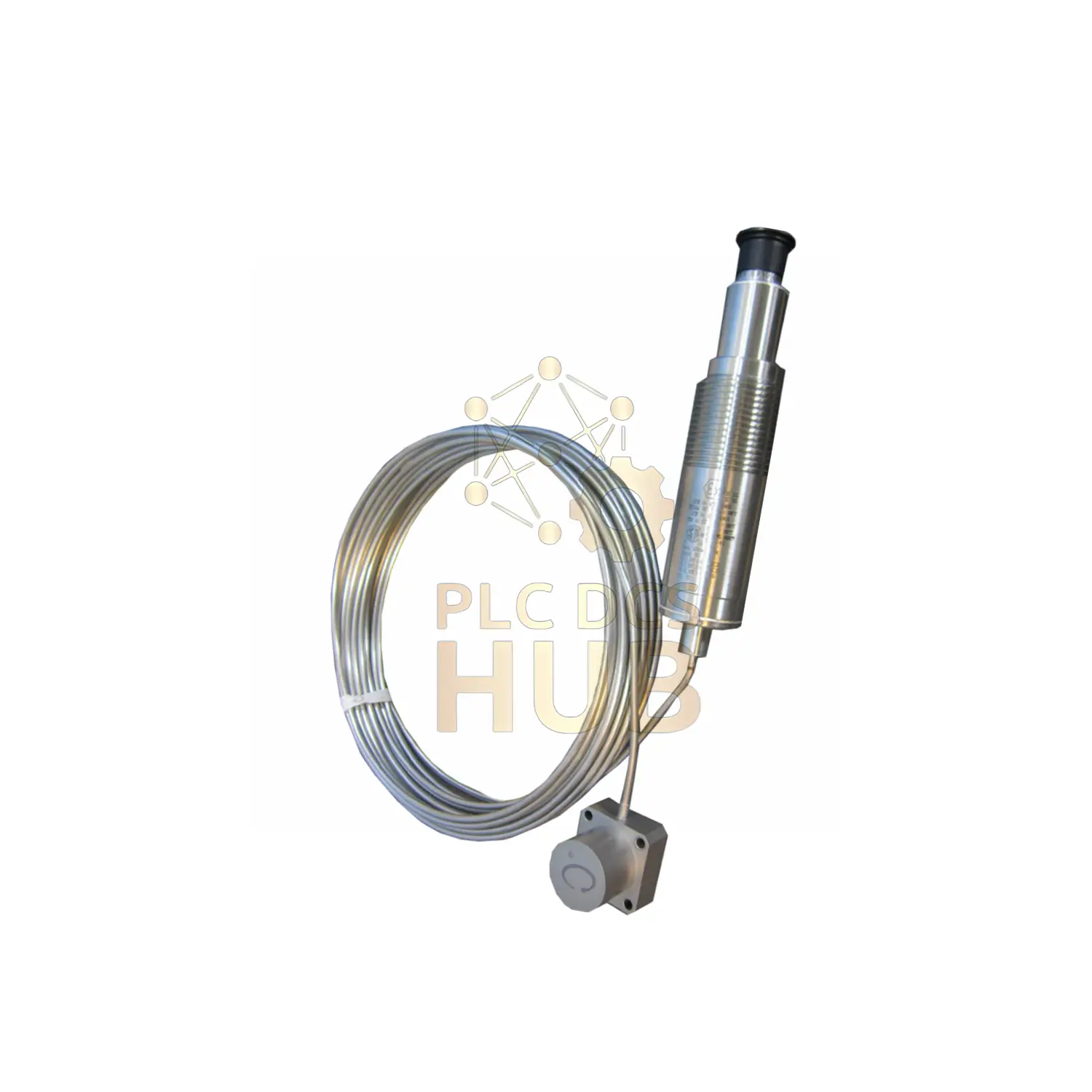

Bently Nevada 330750-60-05 Velomitor System | High Temperature

Description

Product Overview

• Brand: Bently Nevada
• Model: 330750-60-05
• Series: 330750
• Type: High Temperature Velomitor System
• Origin: Made in U.S.A.
• This system measures vibration velocity directly.
• It works well in high heat locations.
• The design supports long cable runs.

Model Structure Explanation

• 330750
  • Velomitor system platform
• -60
  • Standard cable length: 6 meters
• -05
  • Global approvals: CSA, ATEX, IECEx

Core Technical Performance

• Maximum cable length: 305 meters
• Signal quality stays stable at long distance.
• Mounted resonant frequency: 5 kHz
• Velocity output type: True velocity signal
• Transient temperature sensitivity: Less than 5 percent
• Accuracy stability within ±2 percent
• Peak velocity range: Up to 152 mm/s
• Response optimized for rotating machines.

Additional Technical Characteristics

• Operating temperature suited for hot zones.
• Low noise output improves trend quality.
• Fast response to vibration change.
• Minimal phase shift at working frequency.
• High resistance to electrical interference.

Mechanical and Physical Data

• System weight: 953 grams
• Rugged metal housing design.
• Built for continuous industrial duty.

Replacement and Upgrade Path

• Replaces legacy model 330750-60-00.
• 330750-60-05 offers wider approvals.
• No system redesign needed.

Installation and Use

• Mount directly on machine casing.
• Follow standard vibration mounting rules.
• Long cables reduce junction box needs.
• Startup requires no field calibration.

Typical Application Areas

• Gas turbines
• Steam turbines
• Hot zone compressors
• Boilers and kilns
• Critical rotating assets

Key Selling Advantages

• Designed for high heat environments.
• True velocity output improves diagnostics.
• Long cable support lowers installation cost.
• Global certifications ease project approval.

Certifications and Compliance

• CSA approved
• ATEX certified
• IECEx compliant

Packaging and Warranty

• Factory sealed original package.
• Includes one complete Velomitor system.
• Warranty: 12 months.

Shipping Options

• Fast global delivery available.
• Carriers supported: FedEx, UPS, DHL.

Frequently Asked Questions

• Can this system replace older Velomitor versions?
• Yes. It fits existing mounts and wiring paths.
• Is the output suitable for protection systems?
• Yes. The signal works with monitoring and trip systems.
• Does heat affect signal accuracy over time?
• No. The design controls temperature drift.
• Is special cable required for long runs?
• No. Standard approved cable is sufficient.
• What maintenance is needed?
• Only visual checks during planned shutdowns.
