Description
Product Overview

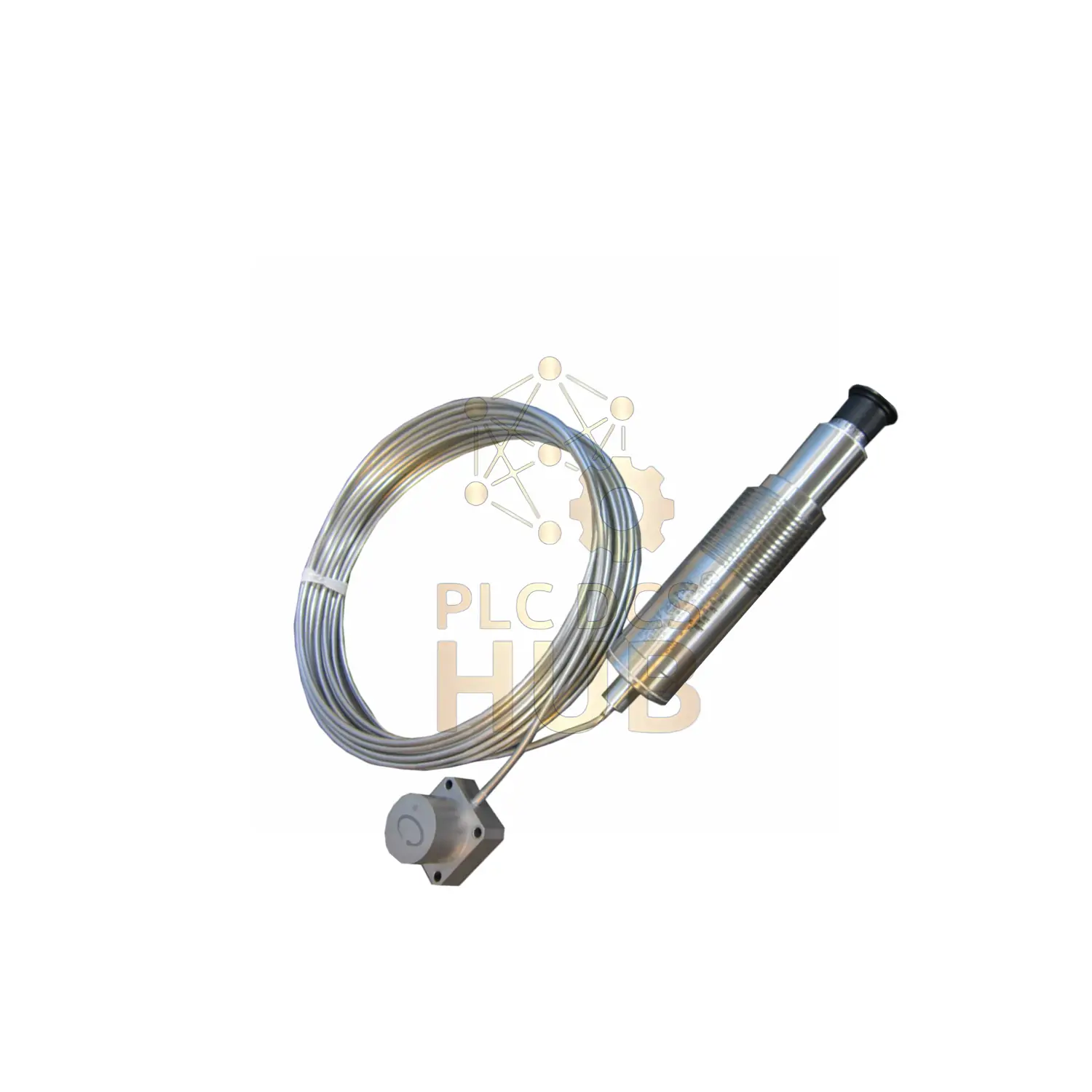

- Brand: Bently Nevada
- Series: 330750-40-05
- Product Type: Temperature Velomitor System Sensor
- Designed for velocity-based vibration monitoring.
- Stable operation in extreme heat environments.
- Sealed construction for long-term reliability.
Key Selling Points
- Wide frequency coverage for rotating machines.
- High shock resistance in harsh duty service.
- Long cable support without signal loss.
- Low noise output improves diagnosis accuracy.
- Certified for hazardous industrial zones.
Technical Specifications
- Electrical Performance
- Sensitivity: 5.7 mV per mm/s.
- Sensitivity Tolerance: ยฑ5 percent.
- Frequency Range:
- 15 to 2000 Hz within ยฑ3.0 dB.
- 20 to 1000 Hz within ยฑ0.9 dB.
- Output Bias Voltage: -12 VDC nominal.
- Noise Floor: 0.127 mm/s rms typical.
- Grounding: Case isolated design.
- Maximum Cable Length: 305 meters.
- Dynamic Measurement
- Amplitude Linearity: ยฑ2 percent up to 152 mm/s.
- Peak Velocity Limit: 635 mm/s below 680 Hz.
- Peak Acceleration Limit: 300 g above 680 Hz.
- Mounted Resonance: Above 5 kHz.
- Cross Axis Response: Less than 5 percent.
- Thermal Transient Drift: 0.0762 mm/s per ยฐC.
- Environmental Capability
- Sensing Surface Temperature: -55ยฐC to +400ยฐC.
- Integral Hardline Cable Range: -55ยฐC to +400ยฐC.
- Electronics Temperature: -55ยฐC to +121ยฐC.
- Shock Endurance: 2500 g peak.
- Humidity: 100 percent, non-submerged.
- Housing: Hermetically sealed.
- Physical Data
- Typical Weight: 794 grams.
- Rigid hardline cable reduces motion noise.
- Designed for permanent machine mounting.
Ordering Structure
- 330750-40-05
- 330750: Temperature Velomitor sensor body.
- -40: Standard 4 meter cable length.
- -05: Multiple approvals option.
Certifications & Compliance
- CSA certified for industrial use.
- ATEX approved for hazardous areas.
- IECEx compliant for global projects.
Typical Applications
- High-temperature turbine casings.
- Boilers and thermal process equipment.
- Compressors in hot environments.
- Critical balance-of-plant machinery.
Logistics & Warranty
- Warranty Coverage: 12 months.
- Worldwide delivery via FedEx.
- Optional shipping with UPS or DHL.
- Protective packaging for export transport.
Professional FAQ
- Is this sensor suitable for continuous high heat?
- Yes. It operates safely up to 400ยฐC at the sensing head.
- How does long cable routing affect accuracy?
- The design supports 305 meters without signal loss.
- Can this replace piezo velocity sensors?
- Yes. It offers stable output without charge amplifiers.
- What mounting practice improves data quality?
- Use solid metal contact and clean surfaces.
- What is a common field lesson?
- Avoid routing near high-current power cables.
