Overview

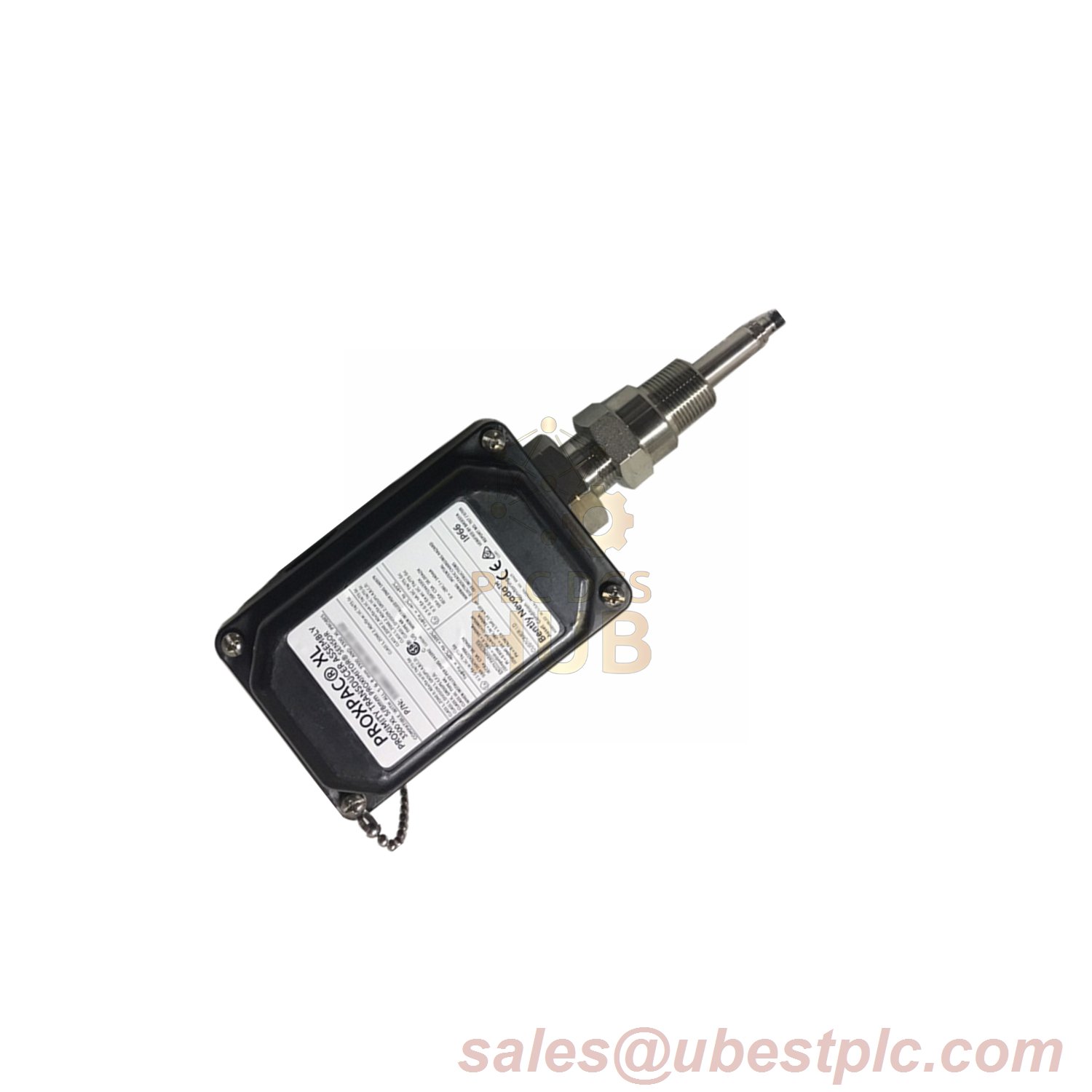

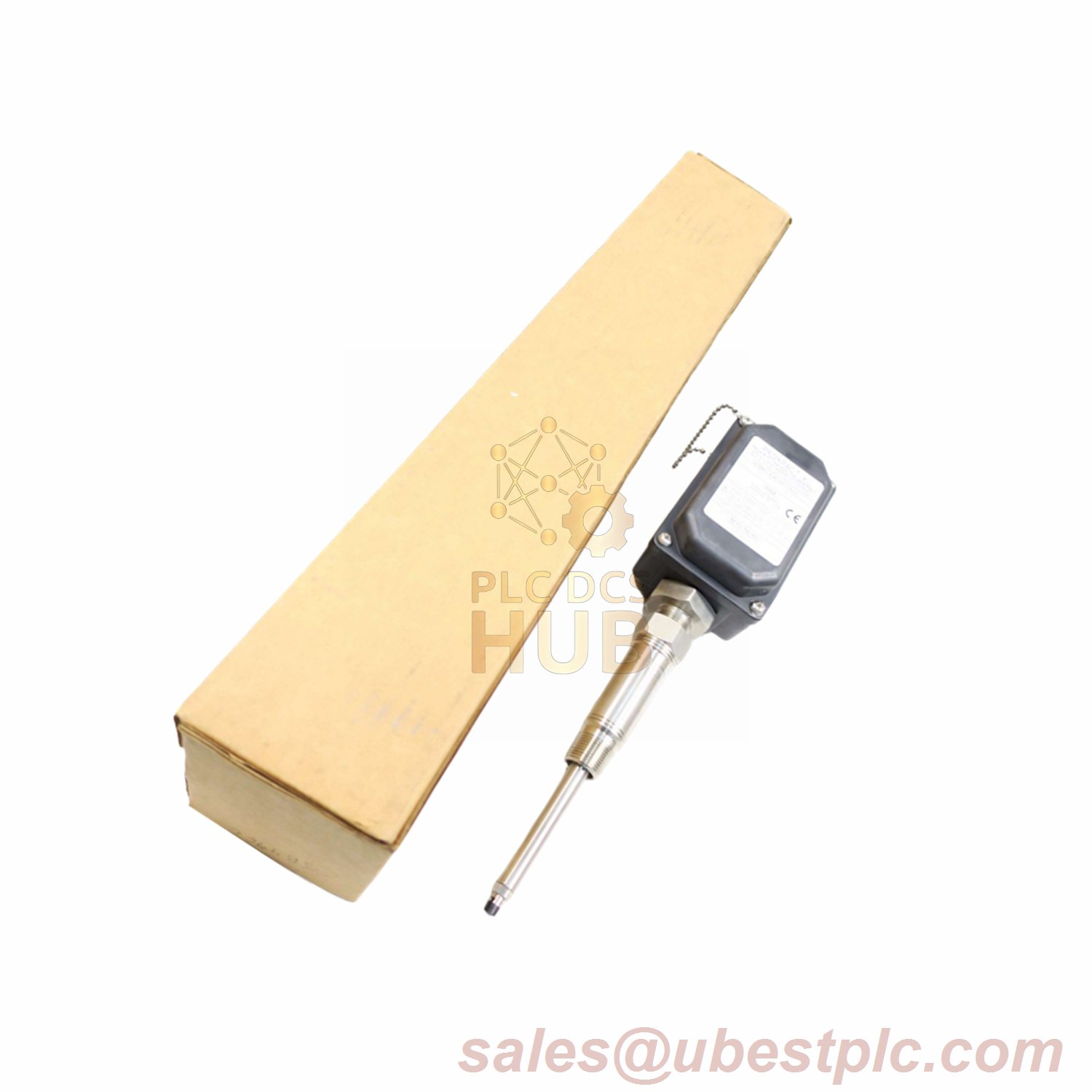

The Bently Nevada 330880-16-40-037-03-02 PROXPAC XL is a robust and high-performance proximity transducer designed for vibration monitoring and machinery protection applications. It integrates advanced proximity sensing technology with a rugged housing to ensure long-term reliability in industrial environments. This model includes a 3300 XL 8 mm probe and is built to withstand harsh conditions, making it ideal for critical rotating machinery.
330880-16-40-037-03-02 Technical Specifications
Mechanical
- Housing Rating: IP66 (verified by BASEEFA)
- Housing Material: UV-resistant, glass-reinforced polyphenylene sulfide (PPS)
- Probe Case Material: AISI 304 stainless steel
- Probe Connector: Gold-plated brass ClickLoc® connector
- Probe Cable: 1-meter, 75 Ω triaxial, FEP-insulated
- Mounting Thread Option: 3/4-14 NPT
- Fittings Included:
- One 3/4-14 NPT fitting
- One 3/4-14 NPT to 1/2-14 NPT stainless steel reducer
- Two plugs
- Weight: 1.44 kg (3.2 lbm)
Electrical
- Power Supply: -17.5 Vdc to -26 Vdc
- Output Resistance: 50 Ω
- Linear Range: 2 mm (80 mils), from 0.25 mm to 2.3 mm (10 mils to 90 mils)
- Recommended Gap Setting: 1.27 mm (50 mils)
- Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5%
- Deviation from Best Fit Straight Line (DSL): ±0.025 mm (±1 mil)
