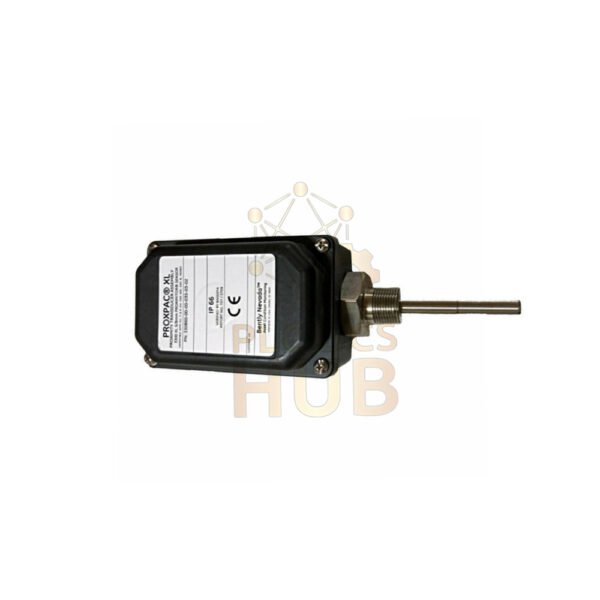

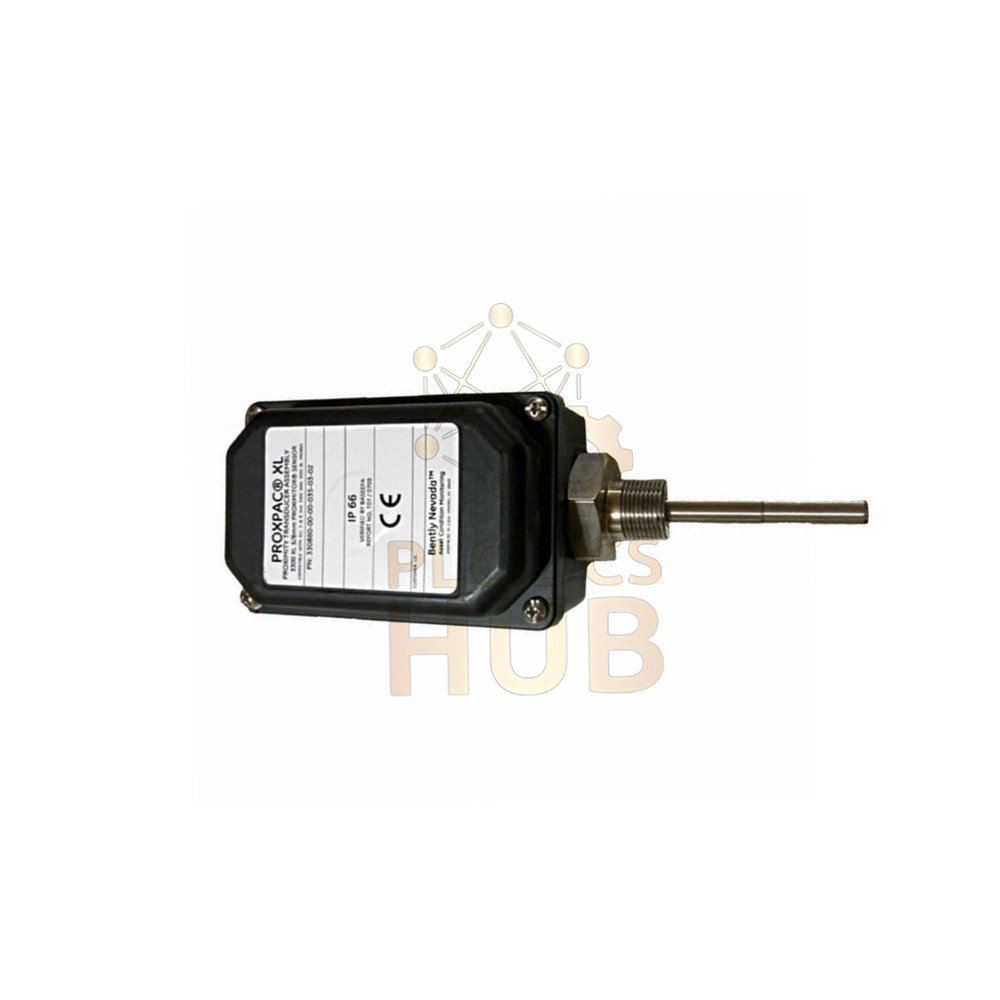

Bently Nevada 330881-16-00-060-01-02 PROXPAC XL Transducer Kit

Description

Complete Ready-to-Install Vibration Monitoring System

Get a brand new original Bently Nevada 330881-16-00-060-01-02. This is a full PROXPAC XL Proximity Transducer system. It ships in factory packing with a 12-month warranty. We deliver worldwide via FedEx, UPS, and DHL.

This kit has everything you need. It includes a probe, armored cable, and a sturdy housing. Perfect for quick and reliable installation on critical machinery. Made in the USA for top quality.

Get a quick quote or technical help: +86 158 8020 0923 (WhatsApp)

System Configuration & Kit Contents

• Product Type: Bently Nevada Proximity Transducer System
• Your Complete Kit Number: 330881-16-00-060-01-02
  • Base Model: 330881 (PROXPAC XL System)
  • Probe & Approval: -16 (3300 XL 8 mm probe, no approvals)
  • Adapter: -00 (No standoff adapter)
  • Probe Depth: -060 (60 mm probe penetration)
  • Fittings: -01 (One 3/4-14 NPT fitting, two plugs)
  • Mounting: -02 (3/4-14 NPT mounting thread)
• Ready to Use: The kit is fully assembled and tested as a complete system.

Core System Specifications

• Measurement Performance:
  • Linear Range: 2.0 mm (80 mils).
  • Recommended Gap: Set to 1.27 mm (50 mils).
  • Sensitivity (ISF): 7.87 V/mm (200 mV/mil) ±5%.
  • Accuracy (DSL): Better than ±0.025mm (±1 mil).
  • Frequency Response: 0 to 10 kHz.
  • Min Target Size: 15.2 mm diameter (flat surface).
  • Min Shaft Diameter: 50.8 mm (2.0 inches).
• Electrical & Power:
  • Power Supply: Needs -17.5 Vdc to -26 Vdc.
  • Output Resistance: 50 Ω.
  • Field Wiring: Use 3-conductor shielded triax cable. Max 305 meters.
  • Probe Cable: 1-meter length, 75 Ω triaxial with FEP insulation.
• Robust Construction:
  • Housing: UV-resistant, conductive PPS plastic. IP66 rated.
  • Internal Parts: AISI 304 & 303 stainless steel.
  • Seals & Isolation: Neoprene O-rings and silicone vibration isolators.
  • Impact Strength: Certified to withstand heavy physical impacts.
  • Probe Tensile Strength: 330 N (75 lb) between cable and case.
• Environmental Limits:
  • Operating Temperature: -51 °C to +177 °C (-60 °F to +350 °F).
  • Caution: Do not expose probe below –34 °C (-29 °F) to protect the seal.
  • Total System Weight: 1.44 kg (3.2 lb) typical.
• Installation Torque:
  • Retaining Nut: 29.5 N·m (260 in·lb).
  • Probe Sleeve Locknut: 39.3 N·m (350 in·lb).

Frequently Asked Questions (FAQ)

System Overview & Benefits

• What is the main advantage of this 330881-16-00-060-01-02 PROXPAC system?It saves time and ensures compatibility. You get a pre-configured, ready-to-mount kit with probe, housing, and all fittings in one box.
• Is this just a probe or a full sensor?This is a complete transducer system. It includes the sensing probe, armored cable, connector, and a protective outdoor-rated housing.

Installation & Application

• What does “60 mm probe penetration” mean?This is how far the probe tip sticks out from the housing’s mounting face. It determines how close you can mount it to your target shaft.
• What size mounting thread does the housing have?The housing has a 3/4-14 NPT thread. This is a standard pipe thread for industrial installations.
• What is the minimum shaft size I can monitor with this system?The system is designed for best accuracy on shafts 50.8 mm (2.0 inches) in diameter or larger.

Ordering & Support

• What is your shipping and warranty policy for this item?Every 330881-16-00-060-01-02 system is new and comes with a 12-month factory warranty. We ship quickly worldwide using FedEx, UPS, or DHL.
• Can I get this system with a different probe penetration depth?Yes. The PROXPAC XL series offers many options. Contact us to configure a system with the exact dimensions you need for your machine.
