Description

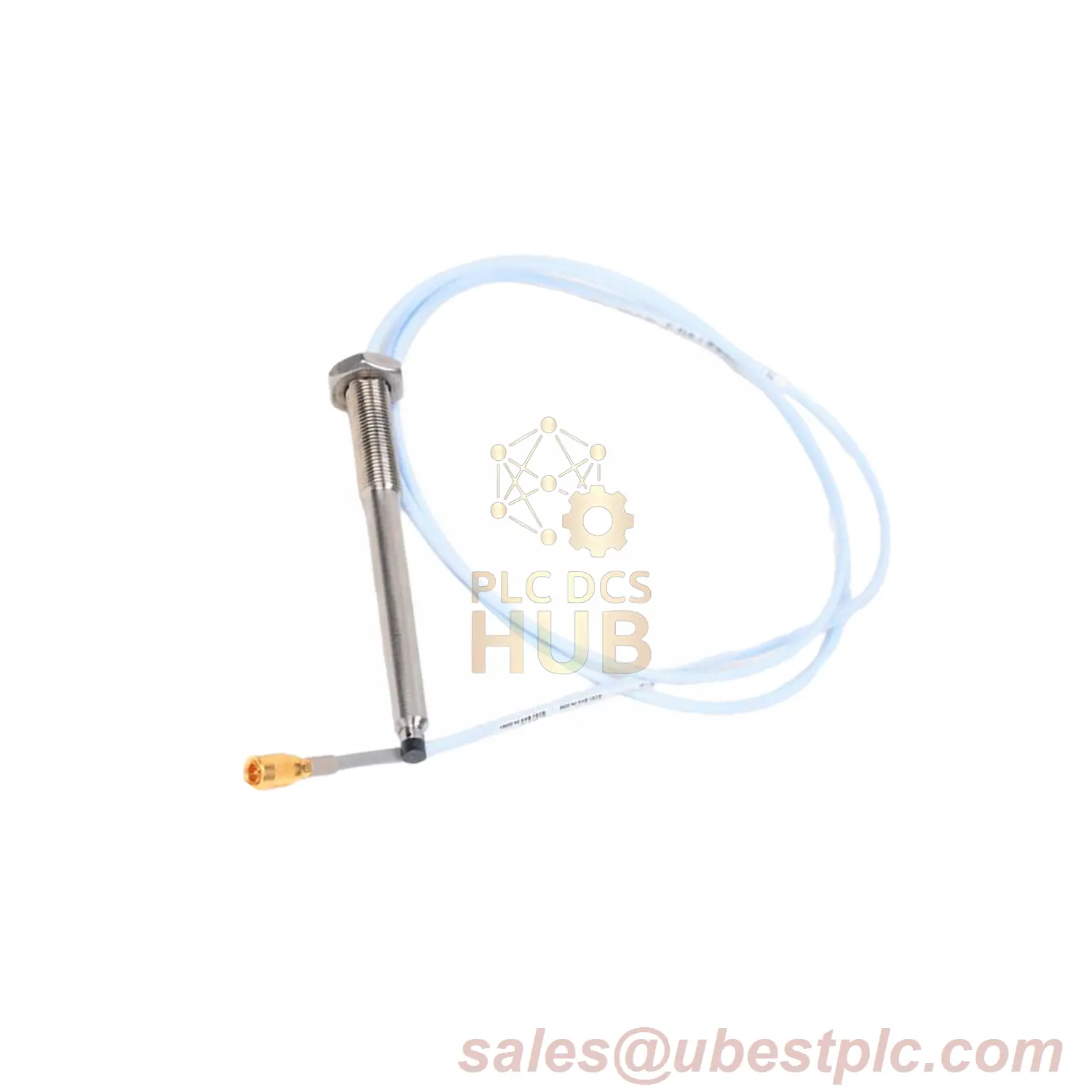

Product No: 330902-05-45-10-02-00 | Type: 3300 NSv Proximity Probe | 1-Year Warranty | Made in USA
Industrial sensor with 4.5″ stainless steel case and 1/4-28 UNF armored thread. Configuration code: 05 (0.5″ unthreaded) / 45 (4.5″ case) / 10 (1m cable) / 02 (click-lock connector) / 00 (no certs).
Main Features
- Installation: Max 0.375″ thread depth | Use 45 in•lb torque (5.1 N•m)
- Temp Range: Works from -62°F to +351°F | Do not store below -30°F
- Cables: 0.5m, 1m, 5m or 7m options
Durable Design
- Case: Stainless steel | Tip: Heat-resistant plastic (PPS)
- Seal: Viton O-ring | Weight: 0.5-5.3 oz (like a smartphone)
- Electrical: 4.2Ω resistance ±0.5 | 75Ω standard cable
Warranty: Covers factory defects for 12 months. Does not cover physical damage or wrong installation.
Contact Support:
