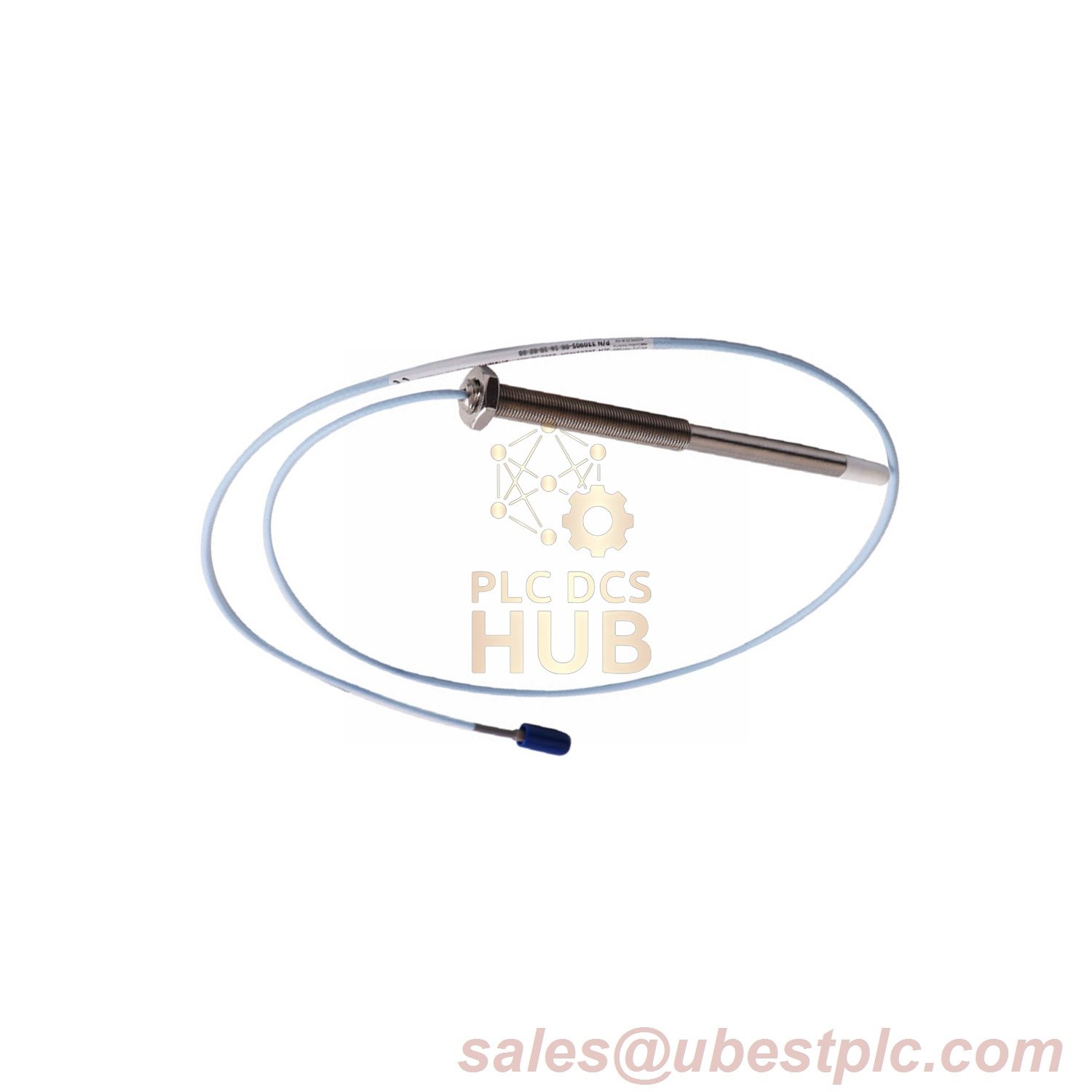

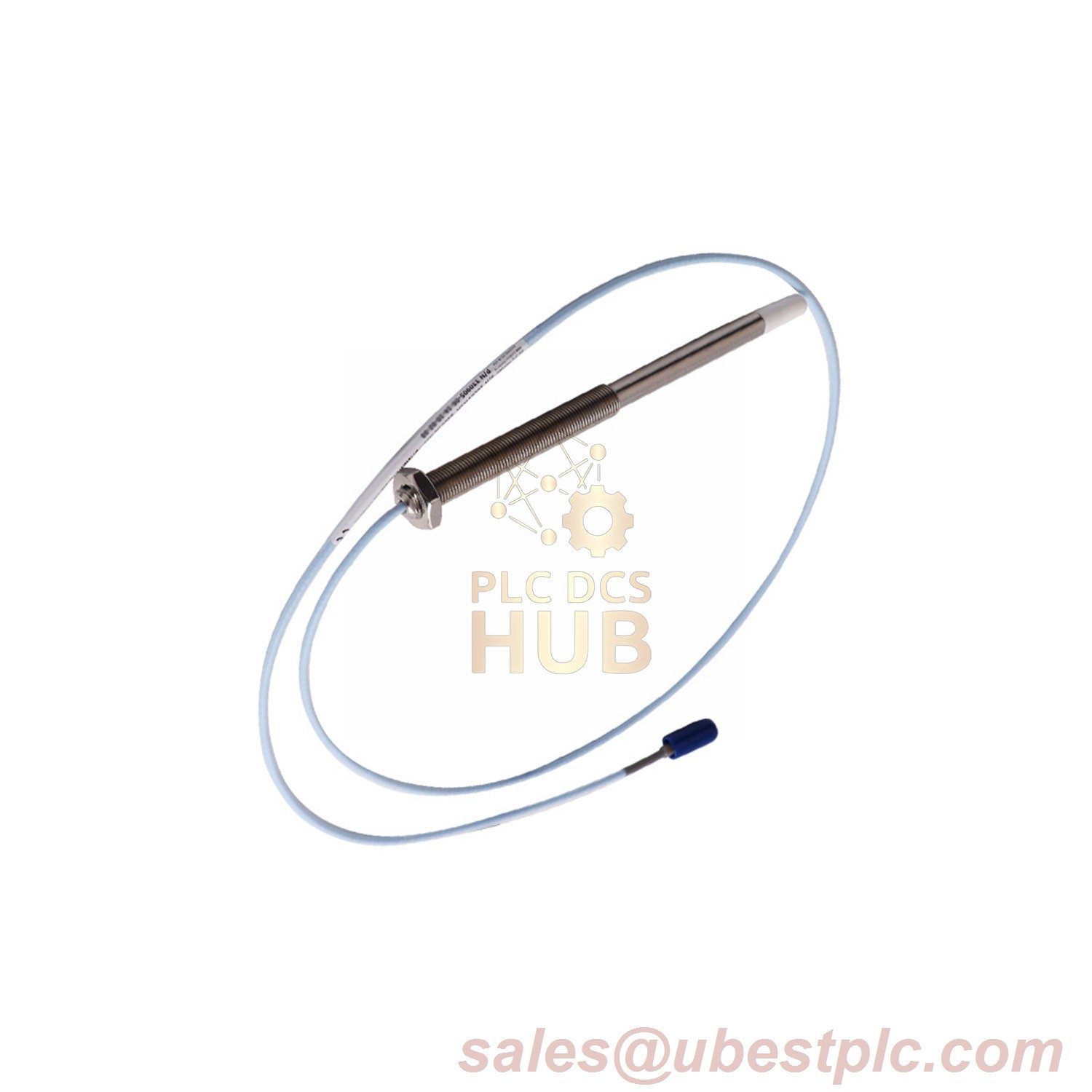

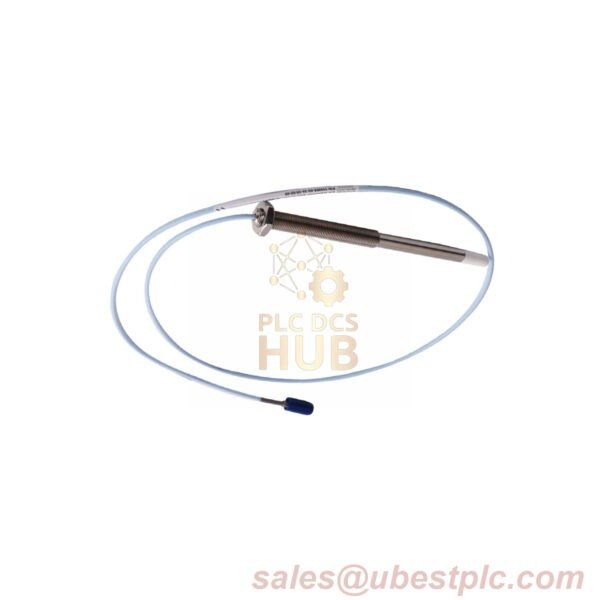

Bently Nevada 330905-00-05-10-12-CN 3300 NSv Probe

Description

Product Description

The Bently Nevada 330905-00-05-10-12-CN is a China-certified industrial vibration probe featuring FluidLoc™ armored cable and M10x1 threading. Designed for harsh chemical environments, this 1.0-meter cable probe operates across -52°C to +177°C with GB3836 explosion-proof certification, ideal for critical infrastructure monitoring.

Technical Specifications

Brand/Model: Bently Nevada 330905-00-05-10-12-CN
Configuration Code: 00(Full Thread)-05(50mm Case)-10(1.0m)-12(FluidLoc)-CN
DC Resistance: 4.2Ω ±0.5 @ 1.0m
Measurement Range: 0.25–1.75mm (-1 to -13 Vdc)
Frequency Response: 0-10 kHz (±3dB)
Housing Material: AISI 304 Stainless Steel
Seal Rating: Viton® O-ring (10 bar)

Industrial Applications

• Offshore oil/gas compressors
• Chemical plant reactor monitoring
• High-pressure pump systems

Key Advantages

• 50% better chemical resistance than standard probes
• FluidLoc™ cable resists hydraulic fluids & acids (pH 2-12)
• GB3836-2010 Ex d IIC T4 certified for Zone 1 hazardous areas
