Product Overview: 330908-00-46-05-02-00

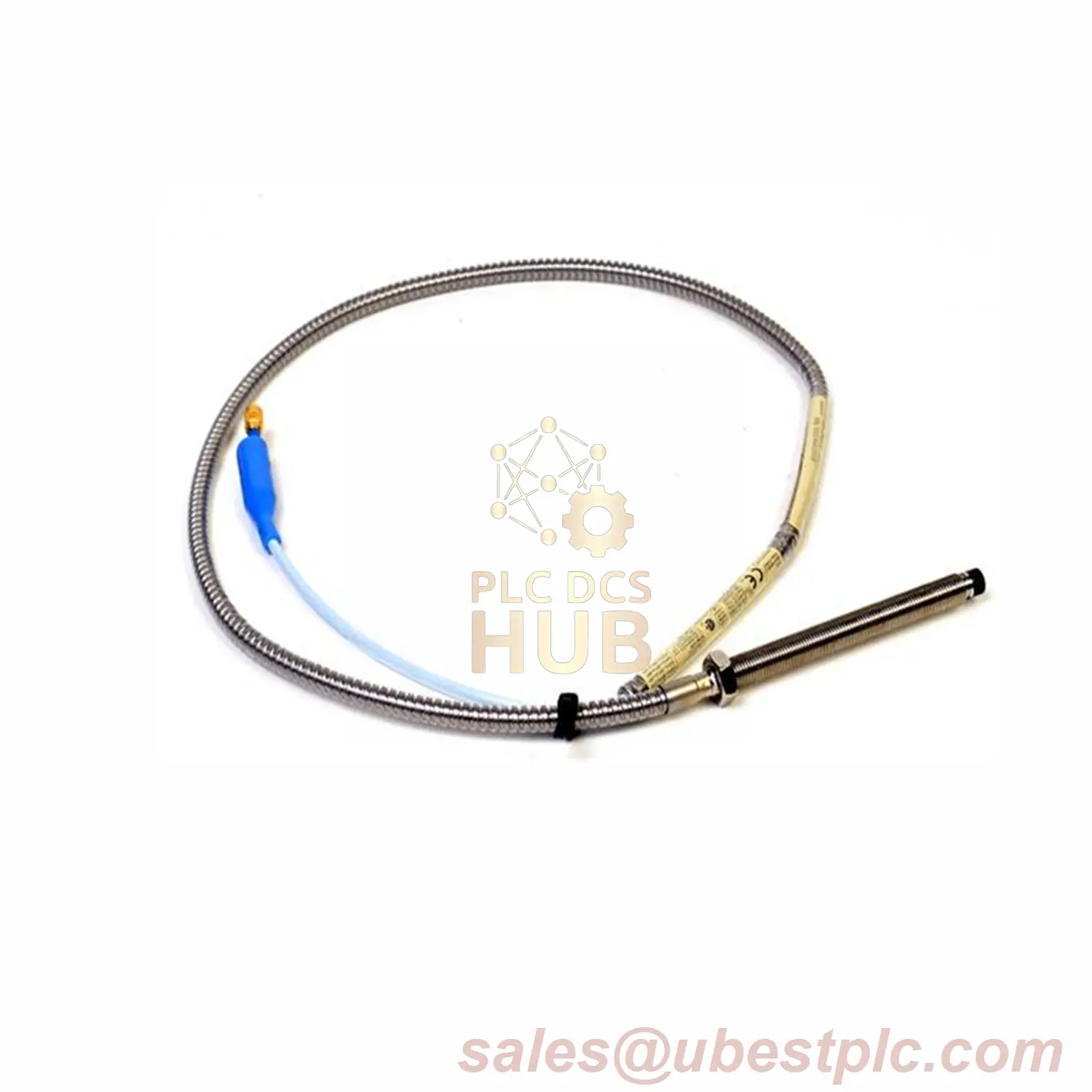

The 3300 NSv Proximity Probe is a rugged industrial sensor made in the U.S.A, featuring a 3/8-24 UNF thread and AISI304 stainless steel case. Designed for precision measurements, its PPS tip ensures resistance to harsh chemicals and extreme temperatures.
???? Key Configuration
- Unthreaded Length: 0.0 in (Code 00)
- Case Length: 4.6 in (Code 46)
- Total Length: 0.5 meters/20 in (Code 05)
- Connector: ClickLoc miniature coaxial (Code 02)
- Agency Approval: None required (Code 00)
⚡ Critical Performance Data
- DC Resistance: 4.0Ω ±0.5Ω at 0.5m
- Max Torque: 33.9 N•m | Safe Limit: 11.3 N•m
- Thread Engagement: Do not exceed 0.563 in
- Weight: 14–150g (0.5–5.3 oz)
????️ Environmental Limits
- Operation: -52°C to +177°C (-62°F to +351°F)
- Storage: -52°C to +177°C
- ⚠️ Critical Note: Avoid continuous use below -34°C (-30°F) to prevent seal damage.
???? Warranty & Support
- Coverage: 1-year limited warranty
- Cable Specs: 75Ω FEP-insulated coaxial (0.5/1/5/7m options)
⚠️ Pressure & Safety
- Seal Material: Viton O-ring (not factory pressure-tested)
- Design Purpose: Seals differential pressure between tip and case.
