Description
Product Overview

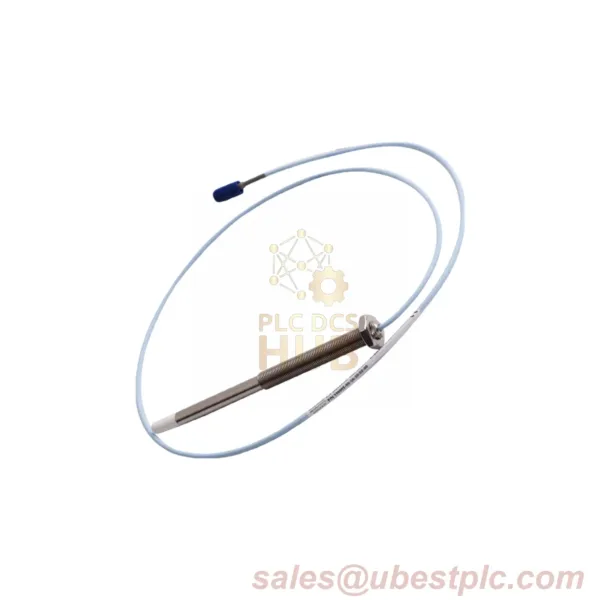

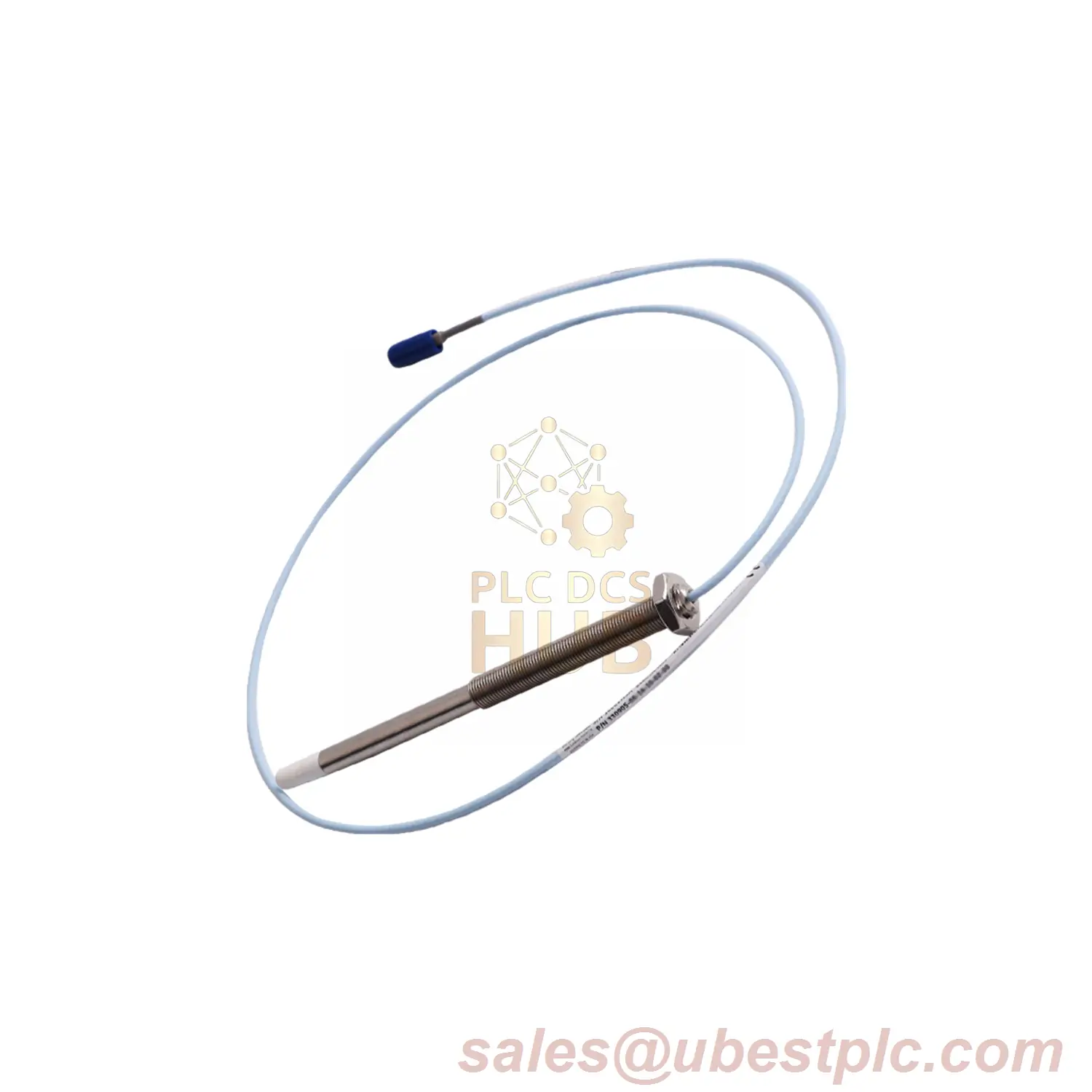

3300 NSv Proximity Probe (Model: 330908-12-31-05-02-00) is a high-precision U.S.-made industrial sensor. Built with a 3/8-24 UNF thread and AISI304 stainless steel case for extreme durability. No armor included.
Key Specifications
Dimensions:
• Unthreaded: 1.2 in
• Case: 3.1 in
• Total: 0.5 m (20 in)
Cable Features:
• 75 Ω coaxial with FEP insulation
• 4.0 ± 0.5 Ω resistance (0.5 m length)
• Available in 0.5, 1, 5, 7 m lengths
Performance & Safety
Temperature Range:
• Works in: -52°C to +177°C
• Avoid: Below -34°C (-30°F) for long periods
Installation Limits:
• Max thread engagement: 0.563 in
• Torque: 33.9 N·m max, 11.3 N·m recommended
Additional Details
Weight: 14–150 g (0.5–5.3 oz)
Seal: Viton O-ring (not pressure-tested pre-shipment)
Warranty: 1-year coverage
