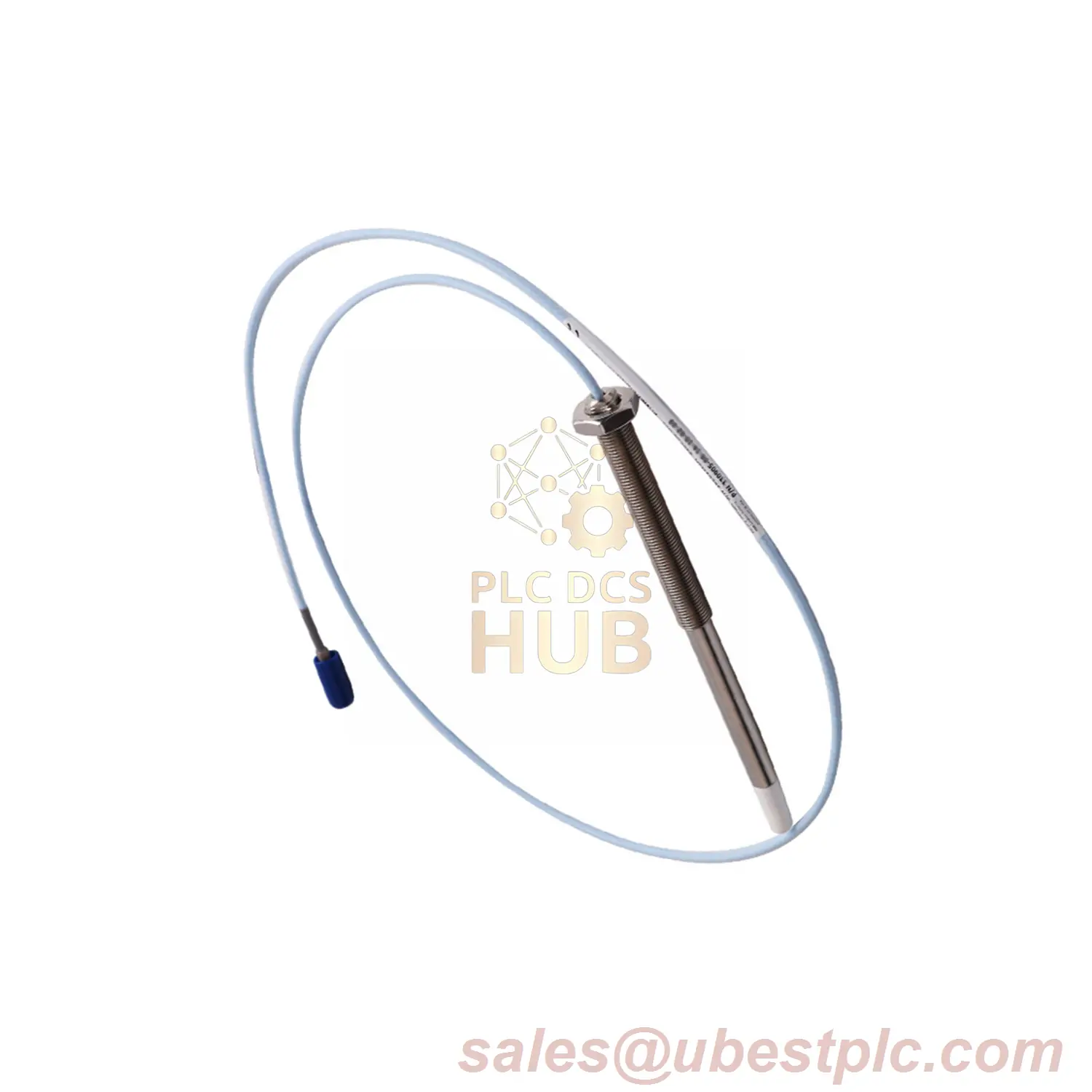

Bently Nevada 330908-12-46-05-02-05 Proximity Probe Without Armor

Description

3300 NSv Proximity Probe | Precision Measurement Solution

Core Specifications

Product No: 330908-12-46-05-02-05
Thread Type: 3/8-24 UNF (Unthreaded Length: 1.2″)
Case Material: AISI304 Stainless Steel
Tip Material: Polyphenylene Sulfide (PPS)

Suffix Decoding

• 12: Unthreaded length 1.2″ (30.5mm)
• 46: Case length 4.6″ (117mm)
• 05: Total length 0.5m/20″
• 02: ClickLoc connector + standard FEP cable
• 05: Multiple agency approvals

Enhanced Technical Parameters

Torque Limits:
✓ Maximum: 33.9 N•m (300 in•lb)
✓ Recommended: 11.3 N•m (100 in•lb)
Thread Engagement: Max 0.563″ (14.3mm)
Pressure Seal: Viton® O-ring (-26°C to +205°C operational range)
Weight Range: 14-150g (0.5-5.3oz)

Performance Assurance

• DC Resistance: 4.0Ω ±0.5Ω @0.5m length
• Cable Impedance: 75Ω coaxial with FEP insulation
• Thermal Stability: Operates from -52°C to +177°C
• Warranty: 12-month quality guarantee

Critical Notes

▲ Avoid sustained exposure below -34°C (-30°F)
▲ Differential pressure sealing capability
▲ Not pressure-tested before shipment
