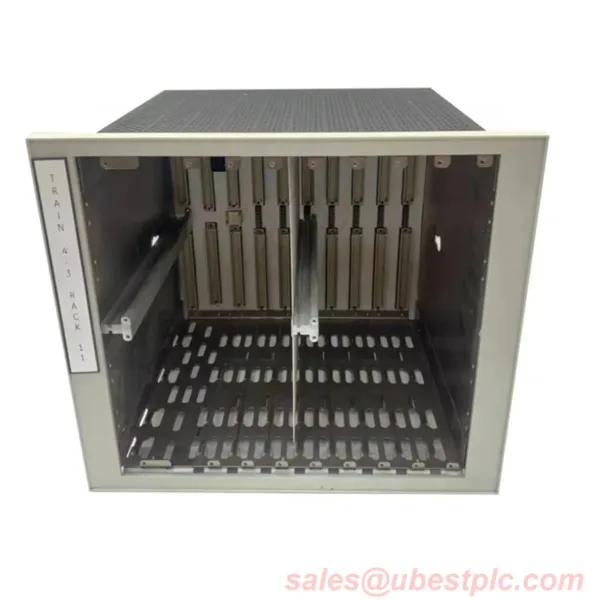

Bently Nevada 3500/05-01-01-00-00 System Rack

Description

Bently Nevada 3500 System Racks

3500/05-01-01-00-00 is modular solutions for industrial monitoring systems, offering flexible configurations and mounting options. Available in Full-Size (19-inch) and Mini-Rack (12-inch) formats, these racks support vibration, temperature, and speed monitoring modules for critical machinery protection.

Technical Data

• Brand: Bently Nevada
• Model Example: 3500/05-01-01-00-00
• Suffix Breakdown:
  • 3500/05: Rack Series
  • -01: 19-Inch Full-Size (14 slots)
  • -01: Panel Mount
  • -00: No Agency Approval
  • -00: Reserved Field
• Full-Size Dimensions: 482.6mm (W) x 349.25mm (H) x 265.94mm (D)
• Mini-Rack Slots: 7 modules
• Mounting Options: Panel, Rack, or Bulkhead Mount (Bulkhead excluded for Mini-Rack)
• Weight: ~10 kg

Installation & Compatibility

• Panel Mount: Secured via clamps to rectangular cutouts; rear wiring access.
• Rack Mount: Fits 19-inch EIA rails; rear wiring access.
• Bulkhead Mount: Front access for restricted spaces (Full-Size only).
• Compatibility: Supports all 3500 Series monitoring modules (e.g., vibration sensors, transmitters).

Certifications

• Agency Approval: Customizable options available (e.g., ATEX, IECEx) based on suffix code.

Applications

Used in oil refinery compressor stations to integrate vibration and temperature monitoring systems. Case Study: Installed in a chemical plant’s gas turbine control room, enabling centralized data collection and reducing system downtime by 25%.

Contact: For customization or bulk orders, email sales@ubestplc.com.
