Product Summary: The Core Frame for Protection Systems

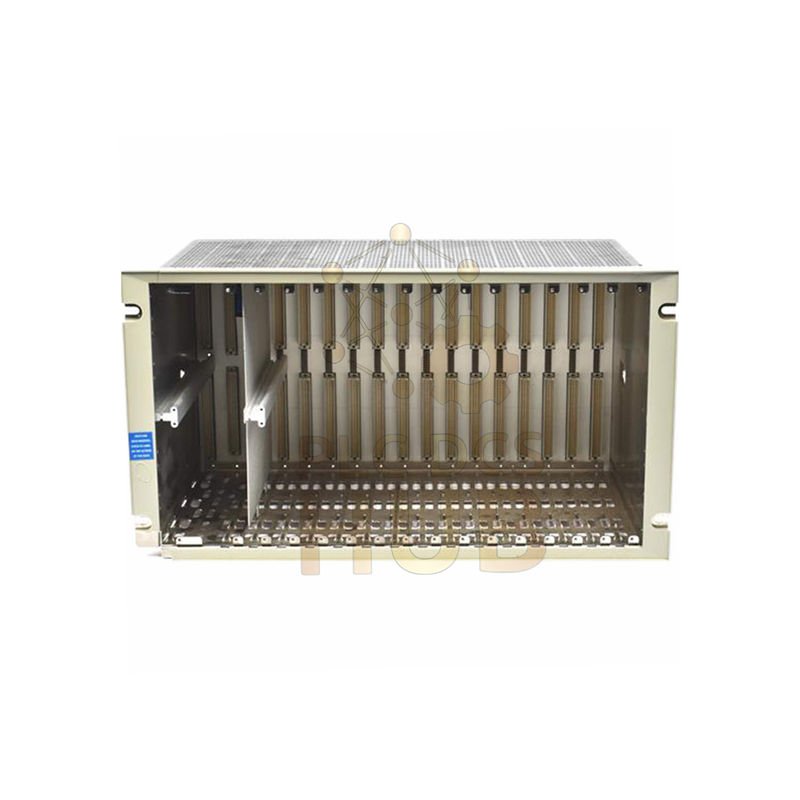

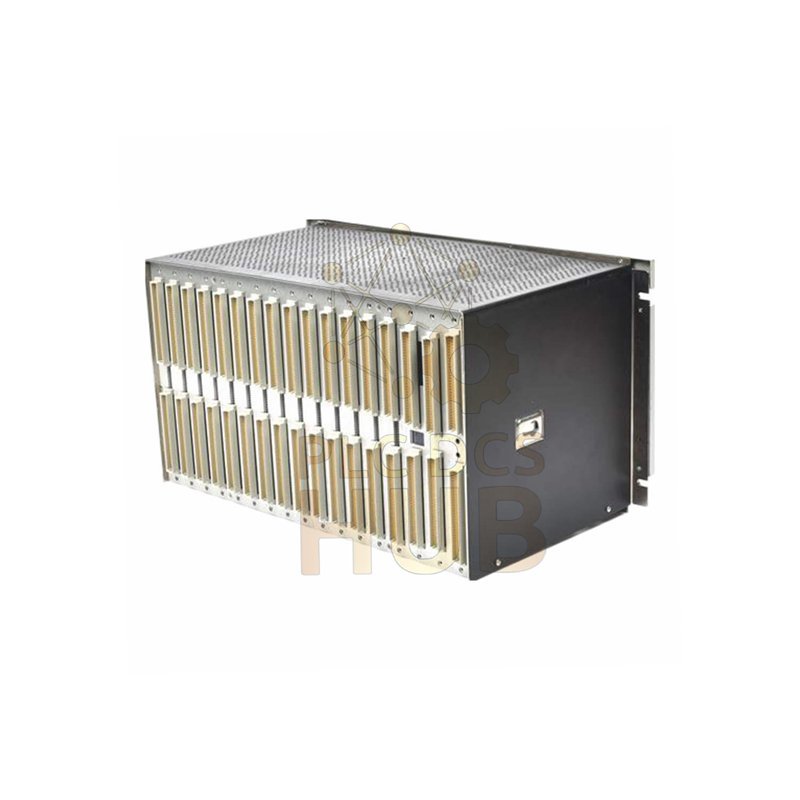

This is the Bently Nevada 3500/05-01-02-00-00-01 system rack. It is the backbone for machine monitoring. This sturdy frame holds 14 electronic modules. It is a standard 19-inch size. You install it in a control cabinet. Then add your monitoring cards. It creates a complete protection system for your equipment.
Main Benefits of This Rack
- High Capacity: Offers space for 14 monitoring modules. Supports complex machinery protection plans.
- Industrial Standard: Built to 19-inch EIA rack specifications. Fits easily into most control room panels.
- Ready for Modules: Pre-wired backplane inside. Just slide in your Bently Nevada 3500 series cards.
- Strong and Secure: Made from heavy-gauge steel. Protects sensitive electronics from dust and damage.
- Globally Compliant: Includes CE marking. Meets key standards for European and international markets.
Complete Product Specifications
- Basic Information
- Brand: Bently Nevada
- Full Model: 3500/05-01-02-00-00-01
- Product Name: 3500/05 System Rack (Frame)
- Manufacturing Country: United States
- Model Number Breakdown
- Base: 3500/05 System Rack
- Suffix -01: 19-Inch Width, 14 Slot Capacity
- Suffix -02: Includes EIA 19″ Rack Mount Hardware
- Suffix -00: No Extra Agency Approvals
- Suffix -00: Standard Feature (Reserved)
- Suffix -01: Certified for CE Compliance
- Base: 3500/05 System Rack
- Physical Details
- External Height: 19.0 inches (482.6 mm)
- External Width: 13.75 inches (349.25 mm)
- External Depth: 10.47 inches (265.94 mm)
- Unit Weight: 14.33 lbs (6.5 kg)
- Construction Material: Powder-coated steel
- Slot Count: 14 vertical slots for modules
- Operating Specifications
- System Power: Connects to 24 VDC or 125/250 VAC (via power supply modules)
- Backplane Speed: Supports high-speed communication between all slots
- Ambient Temperature: 32°F to 140°F (0°C to 60°C) for operation
- Storage Temperature: -40°C to 85°C
- Humidity Rating: 5% to 95%, non-condensing
Package & Service Information
- Included Items: One 3500/05-01-02-00-00-01 rack frame, mounting brackets, screws, manual.
- Warranty Coverage: Protected by a 12-month manufacturer’s warranty against defects.
- Shipping Methods: Available for express delivery via FedEx, UPS, and DHL worldwide.
Frequently Asked Questions (FAQ)
General Use Questions
- Does this rack come with any modules installed?
No. This product is the empty rack only. You must purchase 3500 series monitoring modules separately and install them. - What is the purpose of the backplane?
The backplane is like a motherboard. It provides power and allows the modules to talk to each other inside the rack.
Technical & Installation Questions
- How do I provide power to the rack?
You must install one or two 3500/15 Power Supply Modules into the rack’s slots. Then wire AC or DC power to those modules. - Can I mix different 3500 module types in one rack?
Yes. You can install vibration monitors, temperature monitors, and relay modules together in any slot order.
Purchasing Guidance
- Is this the only rack size available?
No. Bently Nevada offers other rack sizes (like 4-slot or 8-slot). This 3500/05-01-02-00-00-01 model is the largest standard frame with 14 slots.
