Description
Product Overview

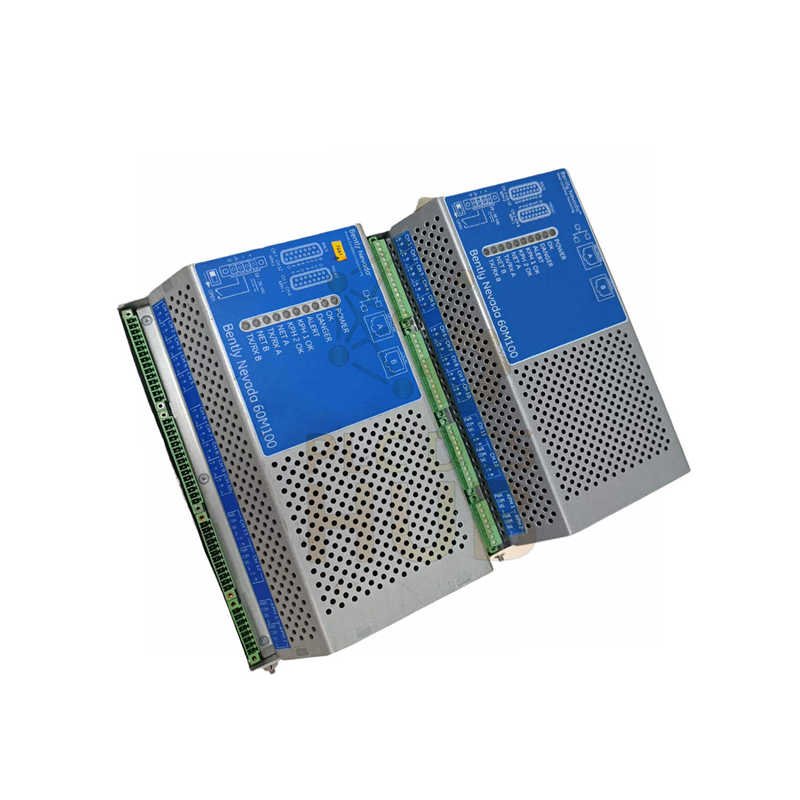

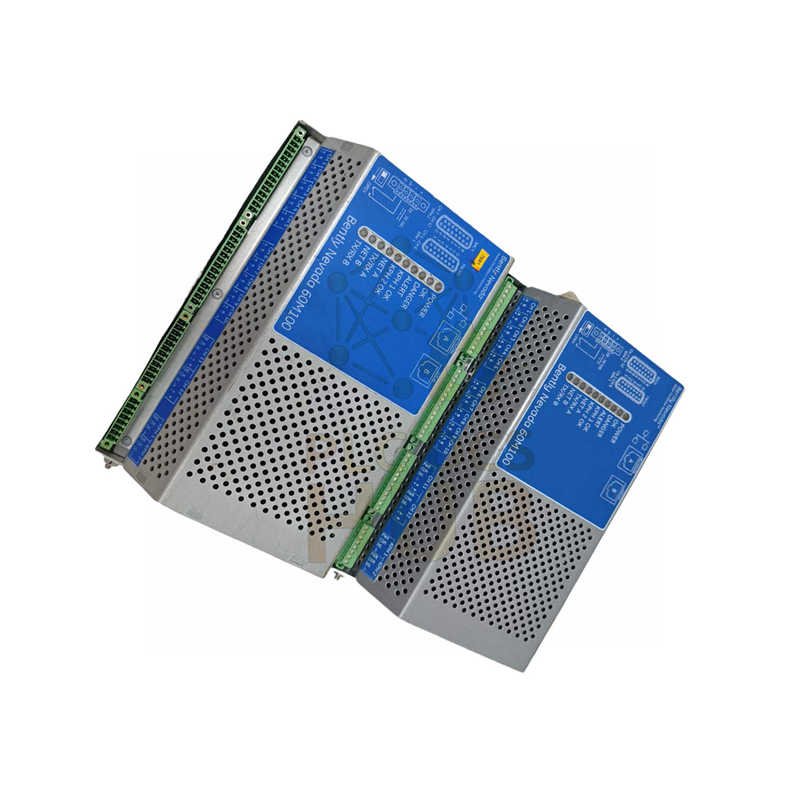

- Bently Nevada 60M100 is a permanent condition monitoring system.
- Designed for wind turbine drive trains.
- Detects faults months before failure.
- Supports condition-based maintenance.
- Helps reduce downtime and revenue loss.
Core Value
- Early warning improves maintenance planning.
- Reduces unplanned shutdowns.
- Lowers crane and labor costs.
- Improves turbine availability.
- Supports long-term asset health.
System Configuration Options
- Standalone operation for single turbines.
- Networked setup for wind farms.
- Integrated use with OEM control systems.
Monitoring Coverage
- Tower sway movement.
- Main rotor behavior.
- Main bearing condition.
- Gearbox bearings and gear mesh.
- Metal debris detection.
- Generator bearings.
- Generator grounding health.
Electrical Specifications
- Input voltage range: 18 to 36 VDC.
- Typical operating voltage: 24 VDC.
- Maximum current draw: 1.7 A.
- Short inrush peak: 2.7 A under 5 ms.
Signal Processing Performance
- Dynamic signal inputs: up to 12 channels.
- Keyphasor inputs: 2 channels.
- Sampling rate: 102.4 kS/s.
- Dynamic range: 110 dB.
- Signal to noise ratio: 110 dB.
- Bandwidth: DC to 40 kHz.
- A/D resolution: 24-bit Sigma-Delta.
Measurement Accuracy
- Amplitude accuracy within 1 percent.
- Stable frequency tracking for gears.
- Reliable bearing fault detection.
- Consistent tower motion readings.
- Low bias drift over time.
Communication and Outputs
- Two independent Ethernet ports.
- DHCP port for plant network.
- Static IP port for local access.
- Buffered analog outputs via DSUB.
Status Indicators
- Power and system health LEDs.
- Alert and danger alarm LEDs.
- Keyphasor signal indicators.
- Network link and traffic LEDs.
Mechanical Information
- Compact housing for cabinet mounting.
- DIN rail installation.
- Lightweight aluminum enclosure.
- Weight approximately 1.4 kg.
Environmental Suitability
- Designed for continuous operation.
- Resists vibration and electrical noise.
- Suitable for offshore and onshore turbines.
Warranty and Logistics
- Standard warranty period: 12 months.
- Carefully packed for industrial transport.
- Shipping options: FedEx, UPS, DHL.
Typical Use Cases
- Utility-scale wind farms.
- Remote turbine monitoring.
- High-value turbine assets.
- Predictive maintenance programs.
Professional FAQ
- Is this system suitable for large wind farms?
- Yes. It supports distributed and networked setups.
- Can it help reduce maintenance costs?
- Yes. Early alerts reduce emergency repairs.
- Is it difficult to integrate?
- No. It works with existing turbine controls.
- What should be checked before purchase?
- Confirm signal count and network needs.
- Is it useful for aging turbines?
- Yes. It extends service life with early insight.
