Description

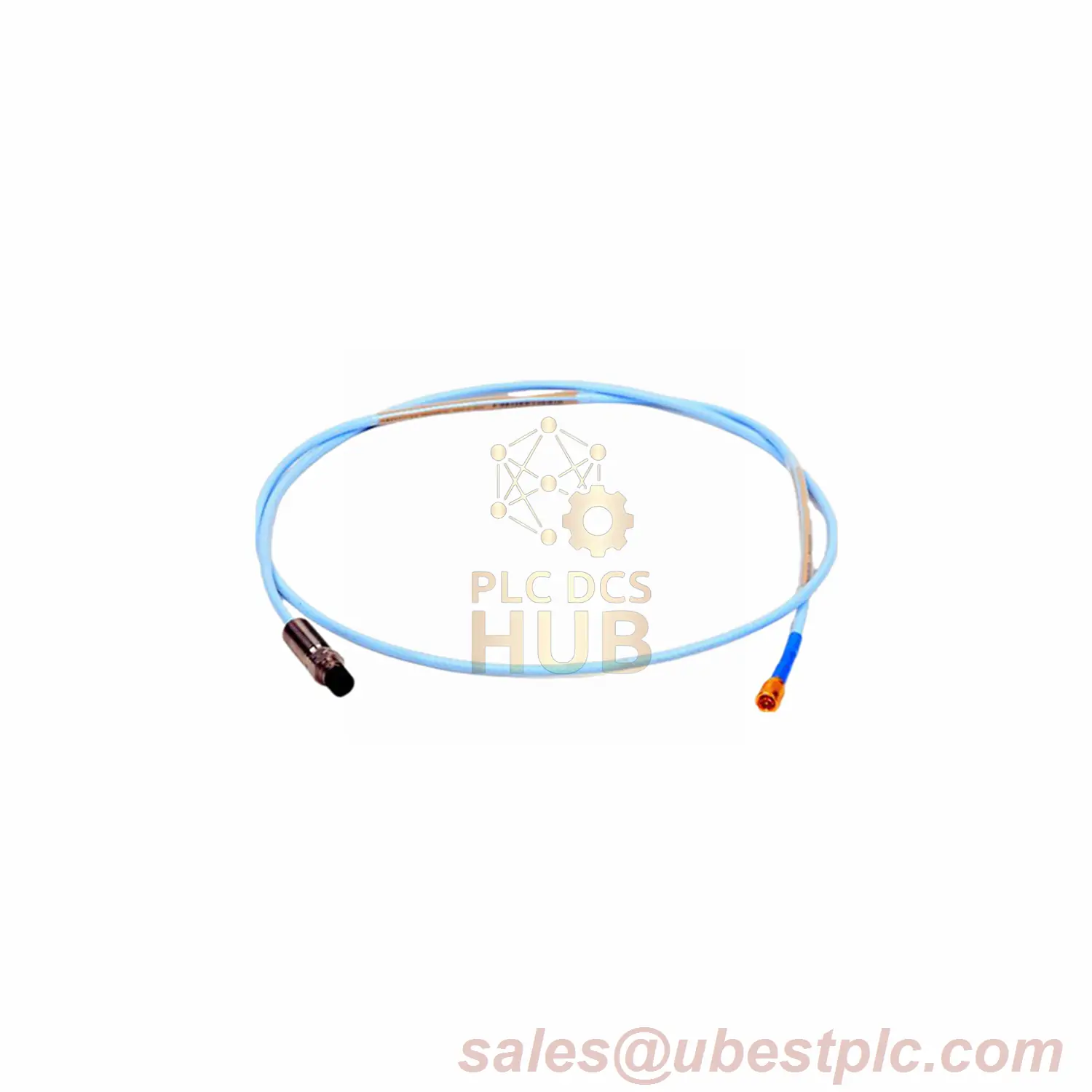

Bently Nevada 330101-00-75-15-02-05 – Heavy-Duty 8mm Vibration Sensor with Industrial-Grade Precision
Key Configuration
- Compact Design: 7.5-inch case length with 1.5m (4.9ft) total cable reach
- Secure Connection: ClickLoc-02 connector ensures 75 lbf retention force
- Resistance Stability: 7.73Ω ±0.50 DC resistance for precise signal transmission
Technical Advancements
- Coil Protection: 8mm PPS tip with 2.3mm linear range (10-90 mils)
- Wiring Capacity: Supports 24 AWG shielded triad cables up to 305m (1,000ft)
- Temperature Resilience: Maintains ±5% ISF accuracy from -62°F to +500°F
Material Integrity
- AISI 304 SST housing: 323g/m density
- Viton® O-ring seals at 93% RH conditions
- PPS tip withstands 425°F continuous operation
Certification & Compliance
- ATEX/IECEx certified for hazardous zones
- IEC 68-2-3 humidity tested 56 days
- CSA-approved 200mV/mil sensitivity
Technical Support Available:
???? sales@ubestplc.com | ???? +86 180 3000 5825
COO documentation available upon request
