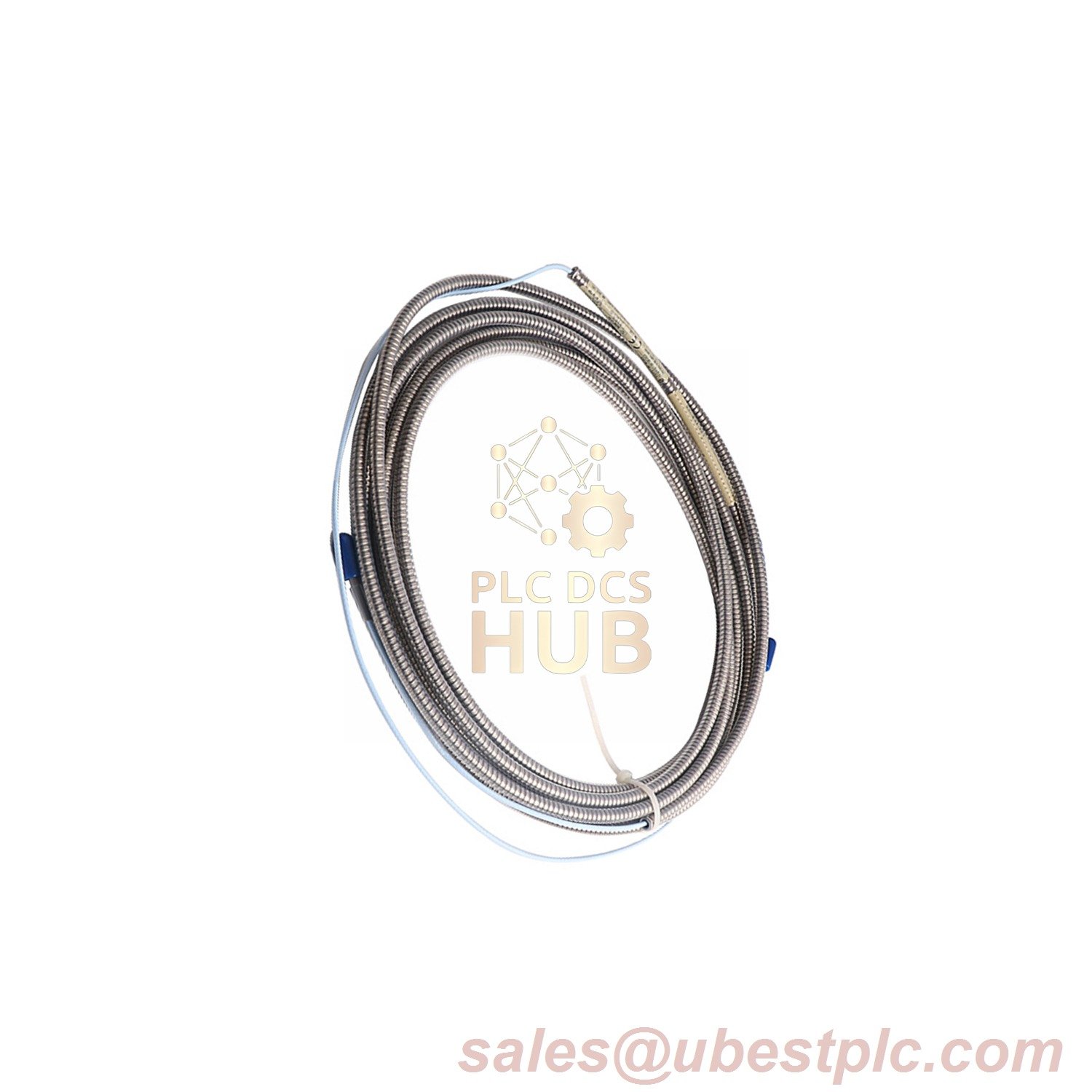

The Bently Nevada 330130-040-01-05 is a rugged armored extension cable designed for high-stress industrial applications. Featuring 4.0 meters (11.5 feet) of armored cable and CSA/ATEX/IECEx hazardous area certifications, this cable ensures reliable signal transmission in explosive atmospheres and mechanically demanding environments. Built with stainless steel braided armor and patented CableLoc technology, it withstands crush loads, abrasion, and 330 N (75 lbf) pull strength, making it ideal for oil & gas, mining, and heavy machinery.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330130-040-01-05 |
| Suffix Breakdown | -040 (4.0 m cable),
-01 (armored cable), -05 (CSA/ATEX/IECEx approvals) |
| Product Type | Armored Extension Cable |
| Cable Length | 4.0 meters (11.5 feet) |
| DC Resistance (RCORE) | 0.88 ± 0.13 Ω (center-to-center conductor) |
| DC Resistance (RJACKET) | 0.26 ± 0.05 Ω (outer-to-outer conductor) |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Armor Material | 304 Stainless Steel Braid (corrosion-resistant) |
| Crush Resistance | 2,000 N/cm² (per IEC 61034-2) |
| Bend Radius | 10x cable diameter (dynamic), 15x diameter (static) |
| Temperature Range | -55°C to +150°C (continuous operation) |
| Torsional Strength | ±180°/m (max allowable twist under load) |
Contact Information
For pricing or customization, email sales@ubestplc.com
Check official datasheet for more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
