Description
Description

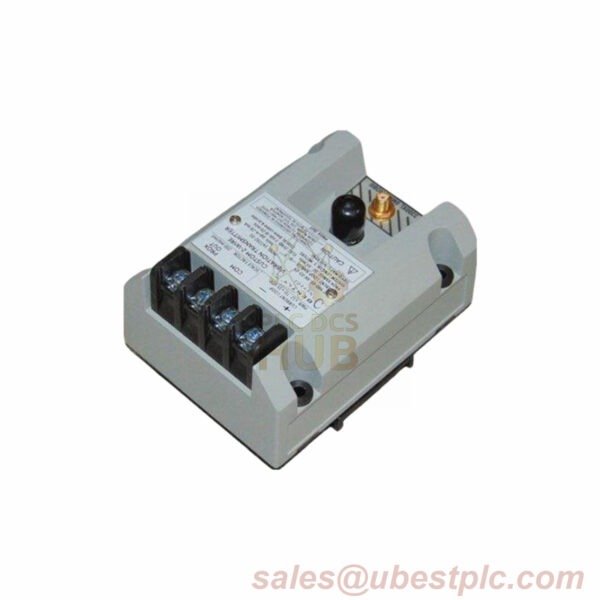

The Bently Nevada 990-08-XX-03-00 Vibration Transmitter is designed for monitoring vibration levels in industrial environments. With its non-contacting 3300 NSv Proximity Probe, this transmitter offers high precision and reliability. It is an essential tool for predictive maintenance and condition monitoring of machinery. Ideal for applications where accurate vibration readings are critical, this transmitter provides real-time data with 4-20 mA output. Built to withstand harsh industrial conditions, it is well-suited for non-hazardous, Zone 2 or Div 2 hazardous area locations.
Technical Data
| Feature | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 990 Vibration Transmitter |
| Product No. | 990-08-XX-03-00 |
| Made in | U.S.A. |
| Full-Scale Option | 08: 0-8 mils pp (0-200 μm pp) |
| System Length Options | XX 50: 5.0 meters (16.4 feet) 70: 7.0 meters (23.0 feet) |
| Mounting Option | 03: DIN clips and screws |
| Agency Approval Option | 00: Not required |
| Input | Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable |
| Minimum Target Size | 9.5 mm (0.375 in) diameter |
Frequency & Temperature Specifications
- Frequency Response: 5 Hz to 6,000 Hz +0, 3 dB
- Operating Temperature: -35°C to +85°C (-31°F to +185°F)
- Storage Temperature: -52°C to +100°C (-62°F to +212°F)
- Weight: 0.43 kg (0.9 lbs)
- Dimensions: 100 x 73.9 x 53.3 mm
