Description
Overview:

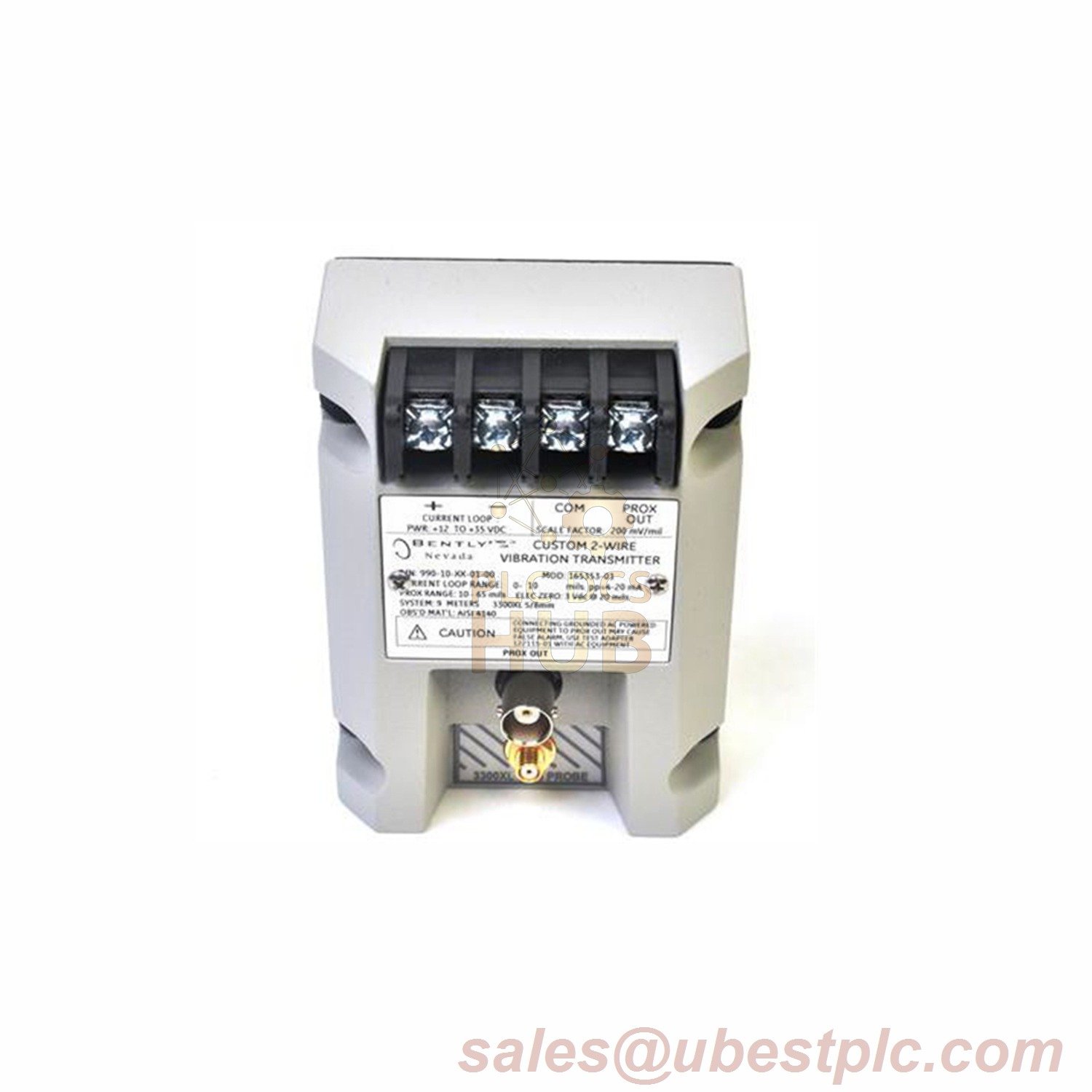

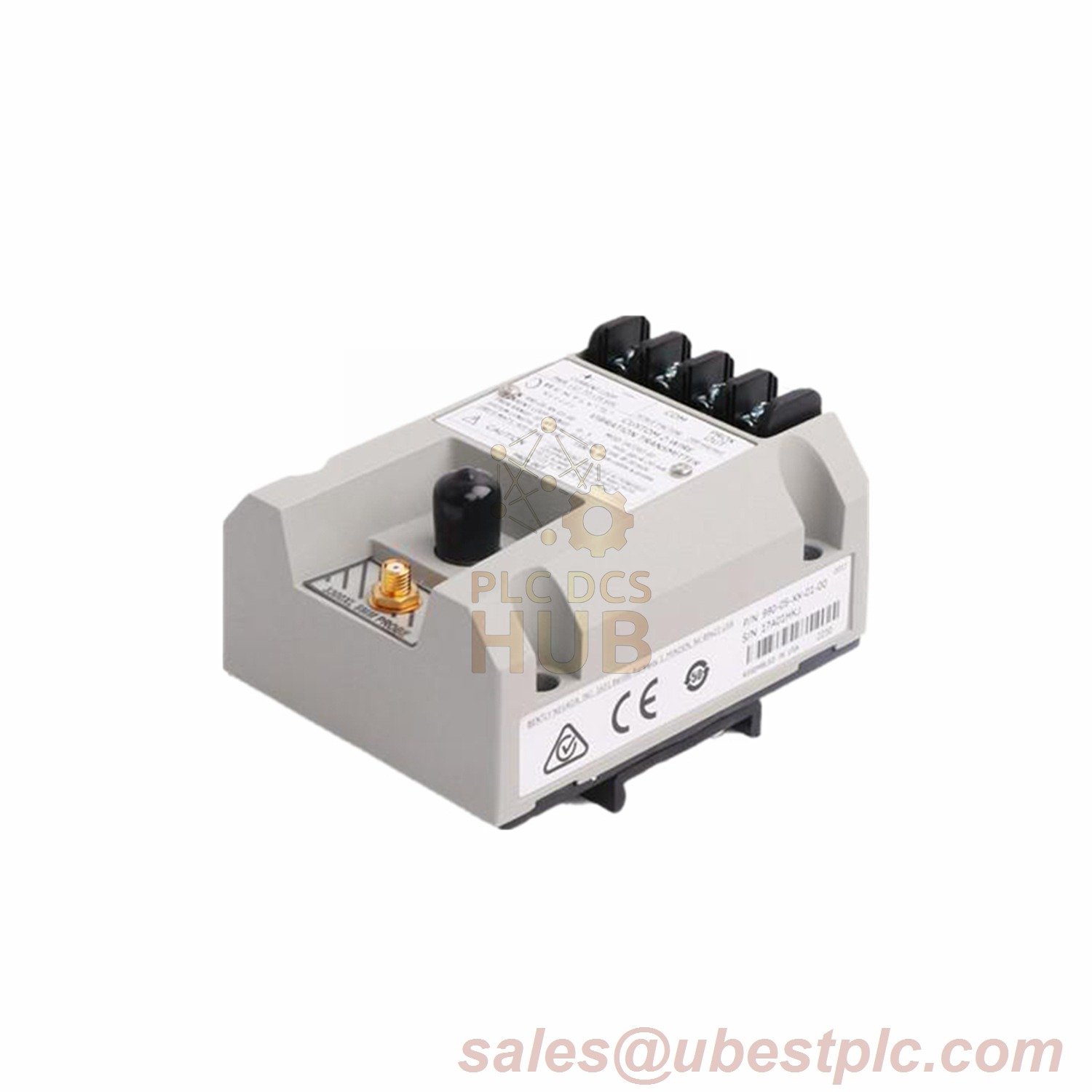

The Bently Nevada 990-05-70-02-05 Vibration Transmitter is a high-performance device designed for vibration monitoring in industrial applications. Made in the USA, this transmitter provides reliable performance in demanding environments. It features compatibility with a 3300 NSv Proximity Probe and extension cables, enabling precise vibration measurement. The transmitter is suitable for non-hazardous and hazardous areas, including CSA Division 2, ATEX Zone 0, and maritime environments.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 990 Vibration Transmitter 990-05-70-02-05 |
| Suffix Information | 05 = 0-5 mils pp, 70 = 7.0 meters, 02 = Bulkhead screws, 05 = CSA/ATEX approvals |
| Input | Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable. |
| Power | Requires +12 to +35 Vdc input. |
| Signal Output | 4 to 20 mA signal output. |
| Accuracy | Within ±1.5% over full-scale range. |
| Probe Gap | Between 0.5 and 1.75 mm (20 to 55 mils). |
| Temperature Stability | Scale factor remains within ±10% from 0°C to +70°C. |
| Operating Temperature | -35°C to +85°C (-31°F to +185°F). |
| Storage Temperature | -52°C to +100°C (-62°F to +212°F). |
| Weight | 0.43 kg (0.9 lbm). |
| Dimensions | 100 x 73.9 x 53.3 mm |
Contact Information
For inquiries, please contact:
Email: sales@ubestplc.com
