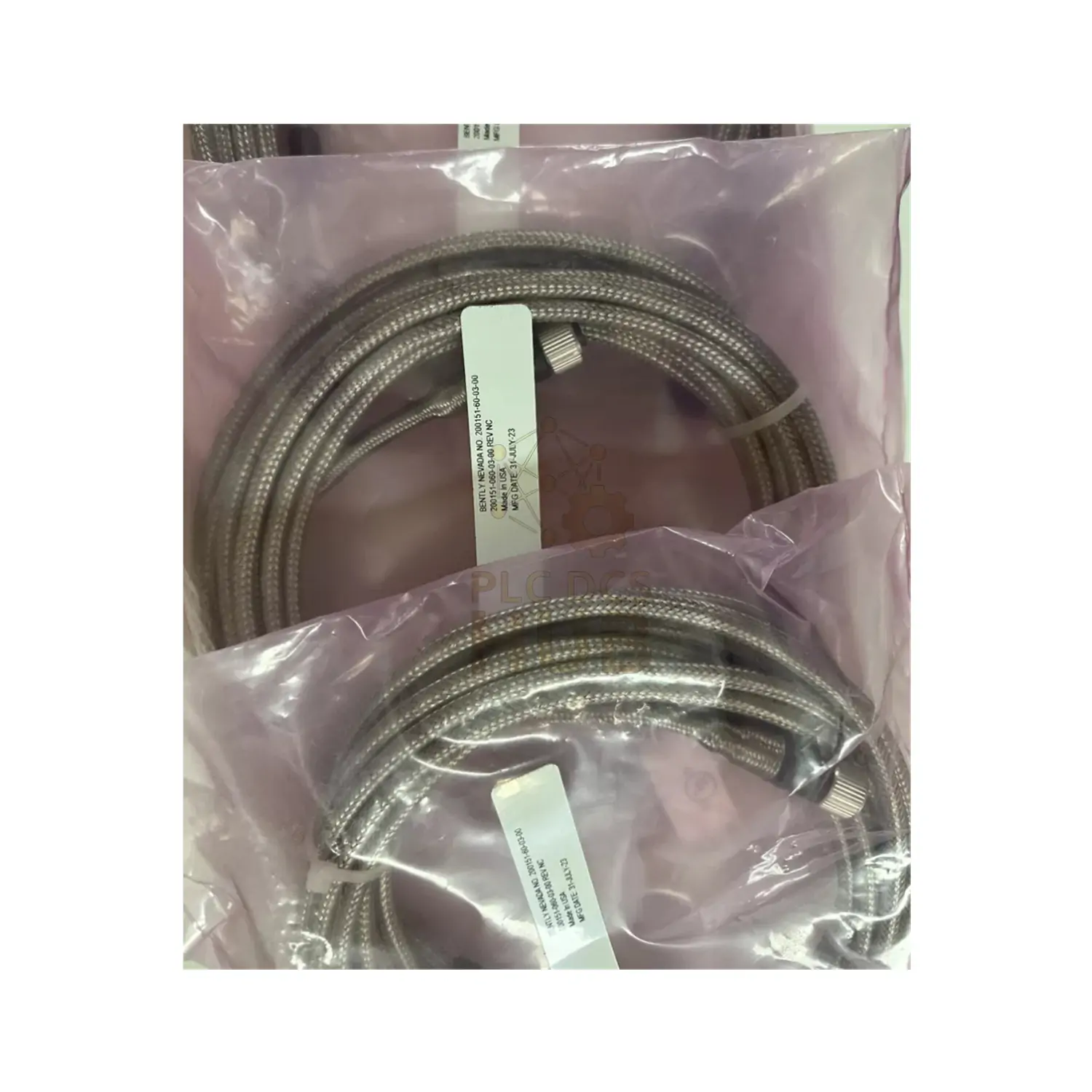

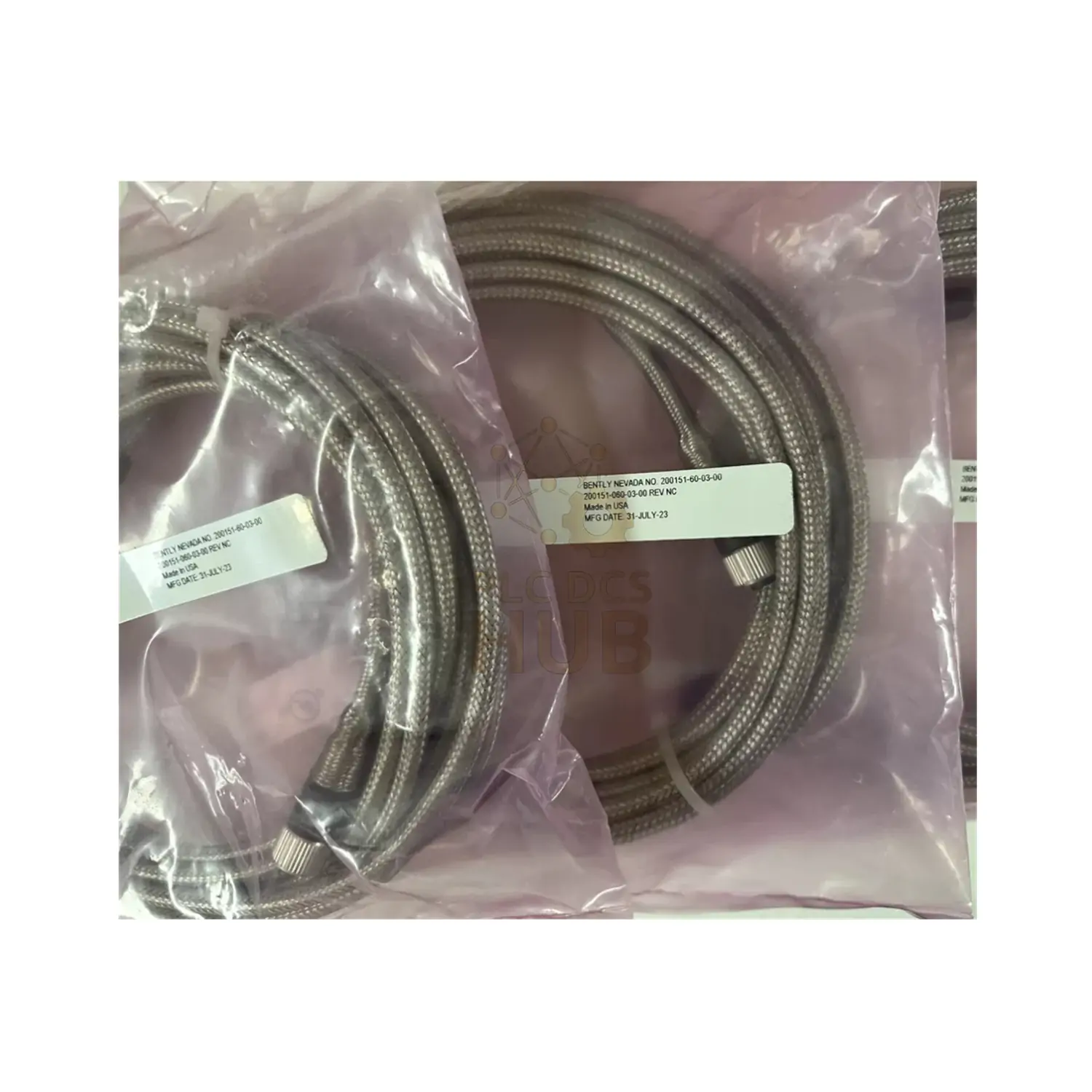

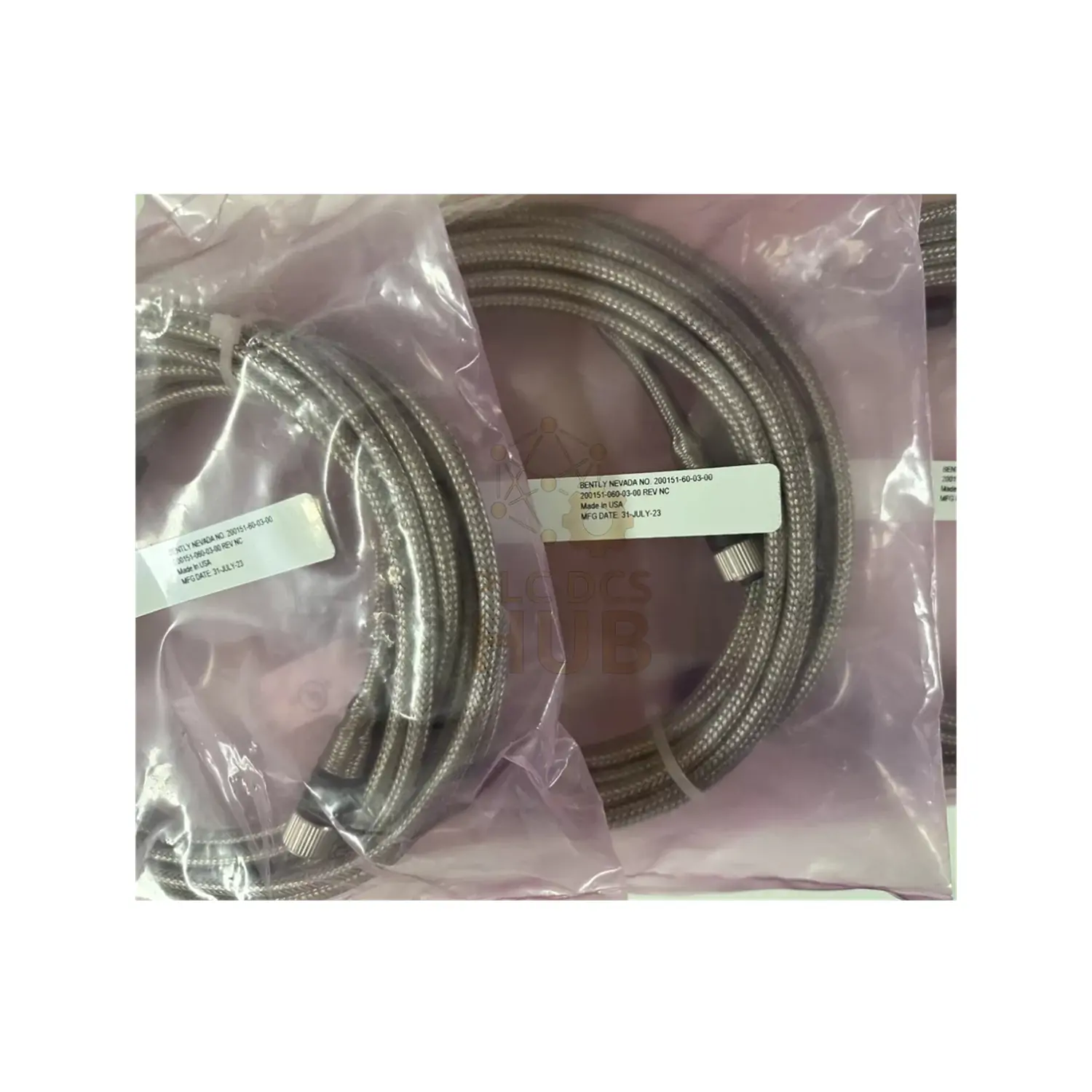

Bently Nevada 200151-20-03-02 Armored Accelerometer Cable
Industrial vibration monitoring cable with stainless steel armor and corrosion-resistant nylon coupling nuts. Ideal for chemical plants and marine applications where metal corrosion is a concern. Maintains signal accuracy in EMI-heavy environments.
Suffix Configuration Details
Full Model: 200151-20-03-02
Breakdown:
• -20 = 2.0 meter length
• -03 = Stainless steel armored blue cable
• -02 = Nylon coupling nuts (both ends)
Breakdown:
• -20 = 2.0 meter length
• -03 = Stainless steel armored blue cable
• -02 = Nylon coupling nuts (both ends)
Technical Performance Data
| Dielectric Strength | 1500V AC for 1 minute |
| Insulation Resistance | >1000 MΩ/km at 500V DC |
| Shield Effectiveness | >40 dB at 100 MHz |
| Conductor Resistance | ≤ 58 Ω/km (22 AWG) |
| Armor Thickness | 0.15mm stainless steel |
Environmental Specifications
- Chemical resistance: Withstands oils, acids, and alkalis (pH 3-11)
- UV stability: 2000+ hours sunlight exposure rating
- Vibration resistance: 5-2000 Hz at 10g acceleration
Model Comparison
| Model | Length | Armor | Coupling Nut | Best For |
|---|---|---|---|---|
| 200151-60-03-02 | 6 meters | Yes (-03) | Nylon (-02) | Long-distance runs |
| 200151-20-02-00 | 2 meters | No (-02) | Standard (-00) | Light-duty applications |
| This Model: 200151-20-03-02 | 2 meters | Yes (-03) | Nylon (-02) | Corrosive environments |
Nylon Nut Advantages
- 75% lighter than metal nuts
- Does not cold-weld in saltwater
- Insulating properties prevent galvanic corrosion
- Maintains torque at -40°C to +120°C
Installation Guidelines
- Hand-tighten plus 1/4 turn with wrench (3-5 Nm torque)
- Use dielectric grease on threads in marine environments
- Armor must be properly grounded at termination point
Technical FAQs
Q: Why choose nylon over metal coupling nuts?
A: Prevents galvanic corrosion when connecting to stainless steel sensors.
Q: Maximum pull tension during installation?
A: 250N (56 lbf) with armor engaged.
Q: Does nylon degrade in UV exposure?
A: UV-stabilized material maintains strength for 10+ years outdoors.
Q: Can I replace just the coupling nuts?
A: No, nuts are molded to cable during manufacturing.
Q: Difference between -00 and -02 suffix?
A: -00 = Metal nuts, -02 = Nylon nuts.
