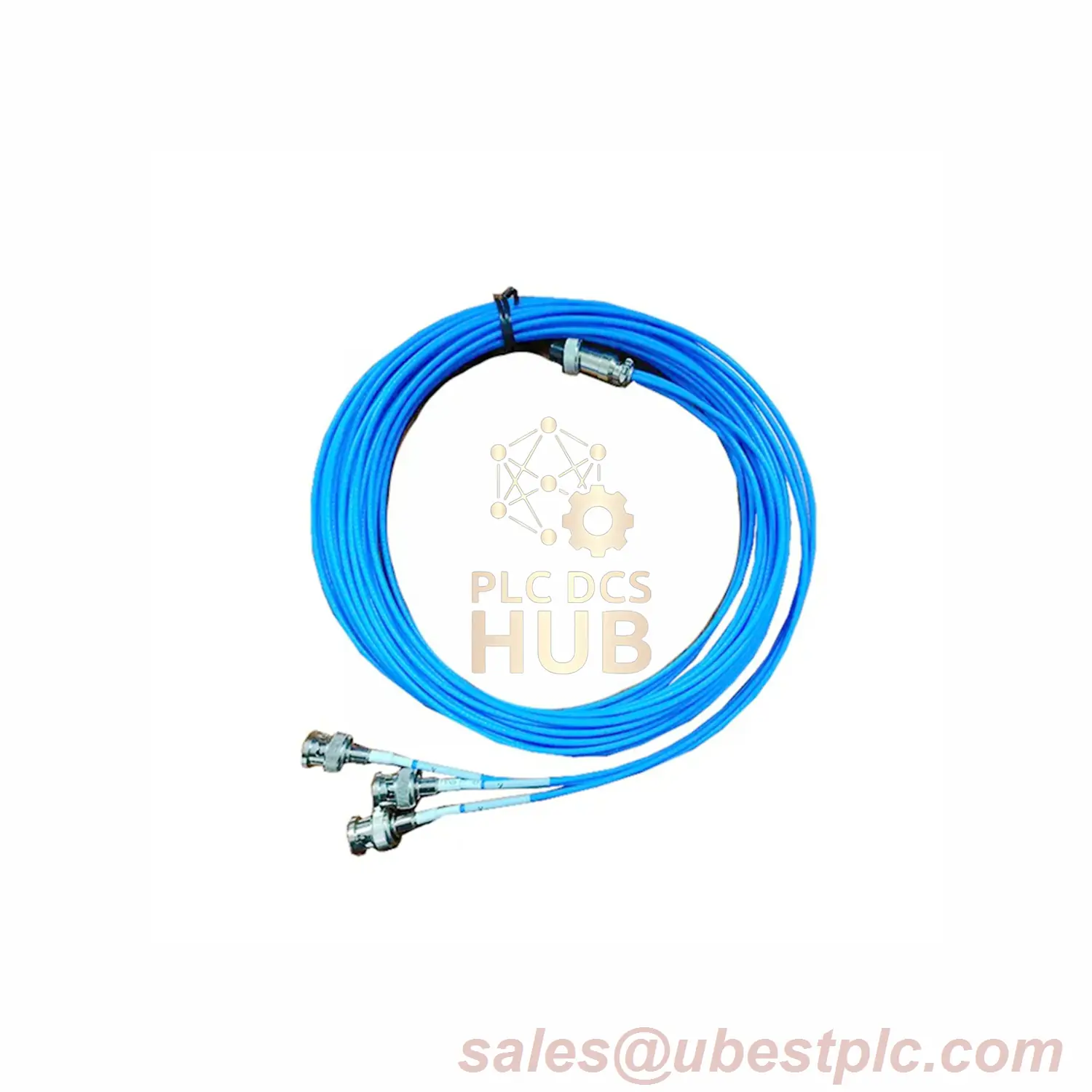

Bently Nevada 200151-40-02-00: Extended Length Accelerometer Cable
Product Highlights
4.0-meter industrial accelerometer cable with extended reach for flexible installations. Features IP67-rated connectors, standard nickel-plated nuts, and PVC jacket. Ideal for applications requiring longer sensor-to-monitor distances.
Technical Specifications
- Brand: Bently Nevada
- Full Model: 200151-40-02-00
- Suffix Configuration:
-40: Cable Length = 4.0 meters
-02: Armor Option = Blue non-armored cable
-00: Coupling Nut = Standard nickel-plated
- Key Parameters:
- Conductor: 4×22 AWG with braided shield (>85% coverage)
- Min. bend radius: 63.5 mm (2.5″)
- DC resistance: <0.1Ω/m (typical)
- Environmental Ratings:
- Operating temp: -20°C to +100°C
- Storage temp: -55°C to +121°C
- Sealing: IP67 with DC4 moisture protection
Comparison With Similar Models
| Feature | 200151-40-02-00 (Current Model) |
200151-20-02-10 |
|---|---|---|
| Length | 4.0 meters | 2.0 meters |
| Coupling Nut | Standard nickel-plated | Special high-temp variant |
| Best For | Long-distance installations | Compact spaces |
| Signal Loss | Compensated design | Minimal due to shorter length |
Installation Notes
Maintain 63.5mm minimum bend radius during installation.
Allow 24hr cure time for DC4 moisture protection. Avoid flexing below -20°C.
Protection Features
- IP67-rated waterproof connectors
- DC4 thermal shock protection
- Braided EMI/RFI shielding
Package Contents
- 1× 4.0m Accelerometer Cable
- Standard coupling nuts (both ends)
- Warranty: 12 months
Global Shipping
Fast delivery via FedEx, UPS, DHL with tracking.
Frequently Asked Questions
Q: How does length affect signal quality?
A: This 4.0m version has enhanced signal integrity features to maintain accuracy.
Q: Difference between -00 and -10 nut options?
A: -00 = Standard nickel, -10 = Special high-temperature variant.
Q: Maximum recommended length?
A: 4.0m is optimal – longer cables may require signal boosters.
Q: Can I connect multiple cables?
A: Not recommended – use single continuous length for best performance.
DC4 compound requires 24-hour curing for optimal moisture protection.
