Description

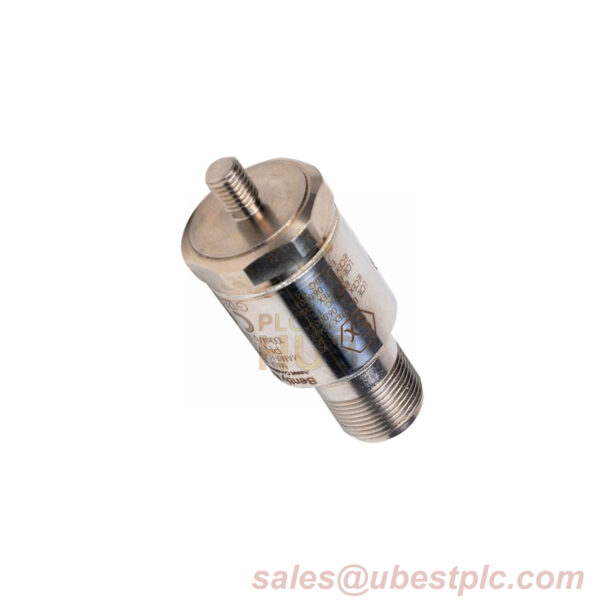

The Bently Nevada 330425-01-05 Accelerometer is a globally certified industrial sensor engineered for precision vibration monitoring in hazardous environments. With approvals for CSA, ATEX, and IECEx, this rugged device features a 10.2 mV/m/s² ±5% sensitivity, 316L stainless steel housing, and IP68-rated sensor body. Designed to thrive in extreme conditions, it operates from -55°C to +121°C (-67°F to +250°F) and withstands shocks up to 5000 g. An optional Certificate of Origin (COO) is available for compliance documentation.
Technical Specifications
- Model: 330425-01-05
- Certifications: CSA, ATEX, IECEx (Zone 1/2/21/22)
- Mounting: ¼-28 UNF integral stud
- Electrical:
- Sensitivity: 10.2 mV/m/s² ±5% (100 mV/g)
- Acceleration Range: 50 g peak (490 m/s²)
- Noise Floor: 0.004 g rms (10 Hz–15 kHz)
- Frequency Response: 10 Hz–15 kHz (±3dB)
- Power Input: -24 Vdc ±0.5V at 2 mA bias
- Environmental:
- Temperature Range: -55°C to +121°C (-67°F to +250°F)
- Shock Survivability: 5000 g peak
- Humidity: 100% condensing (IEC 68-2-3 tested)
- IP Rating: 68 (sensor body only)
- Physical:
- Weight: 100 g (3.5 oz)
- Dimensions: 23mm (0.93″) diameter × 59mm (2.3″) height
- Connector: 3-pin MIL-C-5015 (316L stainless steel)
- Mounting Torque: 4.1 N·m (3.0 ft·lb)
