Description
Product Description

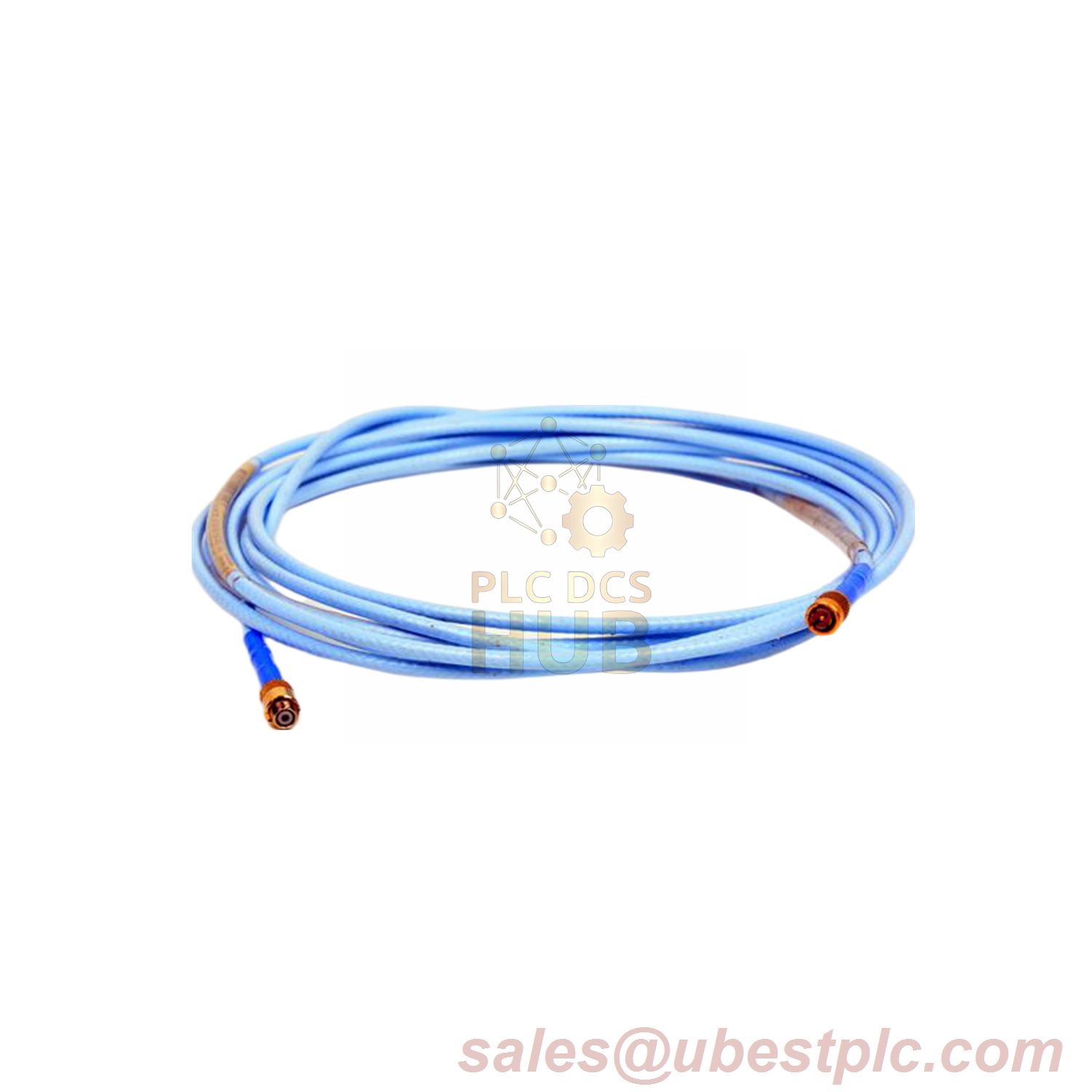

The Bently Nevada 330130-030-03-05 Extension Cable is a high-quality, industrial-grade cable designed to connect 3300 XL 8 mm, 3300 8 mm, and 5 mm proximity probes to a Proximitor sensor. Featuring a robust armored design with a connector protector, this cable ensures enhanced durability and reliability in demanding environments. It supports applications in machinery monitoring, power generation, and rotating equipment protection.
Technical Specifications
- Part Number: 330130-030-03-05
- Length: 3.0 meters (9.8 feet)
- Connector: Gold-plated ClickLoc corrosion-resistant connectors
- Capacitance: 69.9 pF/m (21.3 pF/ft) typical
- Output Resistance: 50 Ω
- Power Requirement: -17.5 Vdc to -26 Vdc, 12 mA max
- Armored Cable Weight: 103 g/m (1.5 oz/ft), 0.309 kg total
- Operating Temperature: +18˚C to +27˚C (+64˚F to +80˚F)
- Field Wiring: 16 to 24 AWG, max 305 meters (1,000 feet)
- Linear Range: 2 mm (80 mils), operates at -1 to -17 Vdc
