Product Description

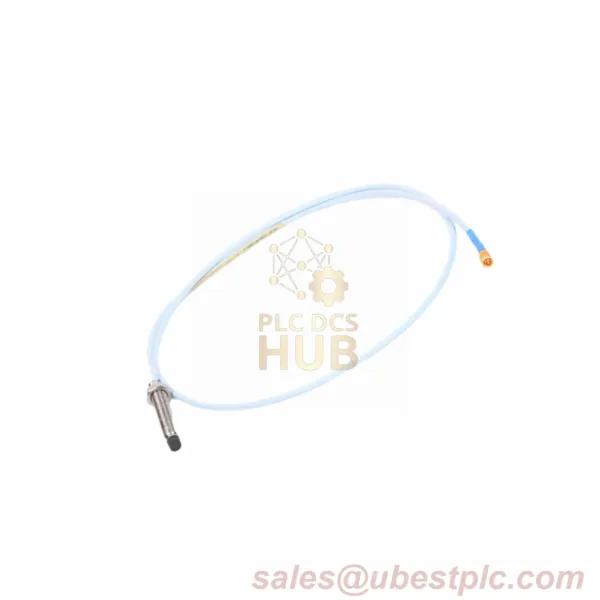

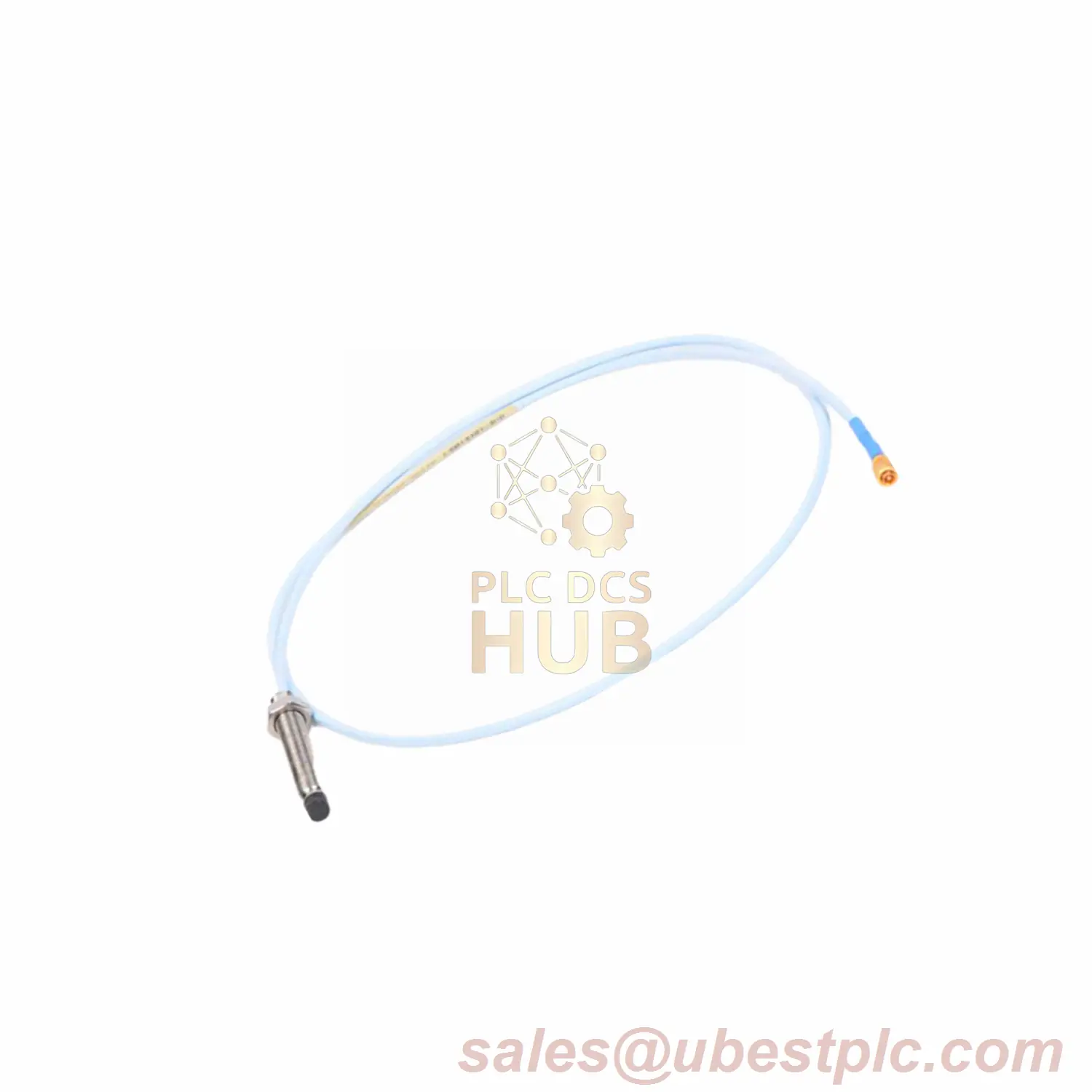

The Bently Nevada 3300 XL 8mm Proximity Probe (Model: 330102-00-32-10-01-00) is designed for precise vibration and position monitoring in industrial machinery. Featuring a 3/8-24 UNF threaded stainless steel case and a durable PPS probe tip, it ensures reliable performance in harsh environments.
Technical Data
- Brand: Bently Nevada
- Model: 330102-00-32-10-01-00
- Range: 0.25–2.3 mm (10–90 mils)
- Accuracy: 7.59Ω ±0.5 (1.0m cable)
- Output: -1 to -17 Vdc (Linear)
- Temp. Range: -52°C to +177°C (Standard)
- Thread: 3/8-24 UNF (Max engagement: 0.563 in)
- Cable: 1.0m (3.3 ft), 3-conductor shielded
Installation Guide
Mount using 3/8-24 UNF thread. Ensure O-ring seal (Viton®) is intact. Set gap to -9 Vdc (~1.27 mm) for radial vibration. Max wiring: 305m (1,000 ft).
Compatibility
- 1.0m cable: Compatible with 5m/9m Proximitor sensors.
Certifications
- Class I, Zone 0: AEx/Ex ia IIC T5-T1 Ga
- Class I, Div 2: Groups A-D
Package & Warranty
- Probe, documentation, connector protector, warranty card.
- 12-month warranty.
Application Example
Used in gas turbine vibration monitoring to detect shaft misalignment.
Contact Us: sales@ubestplc.com | +86 158 8020 0923
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
