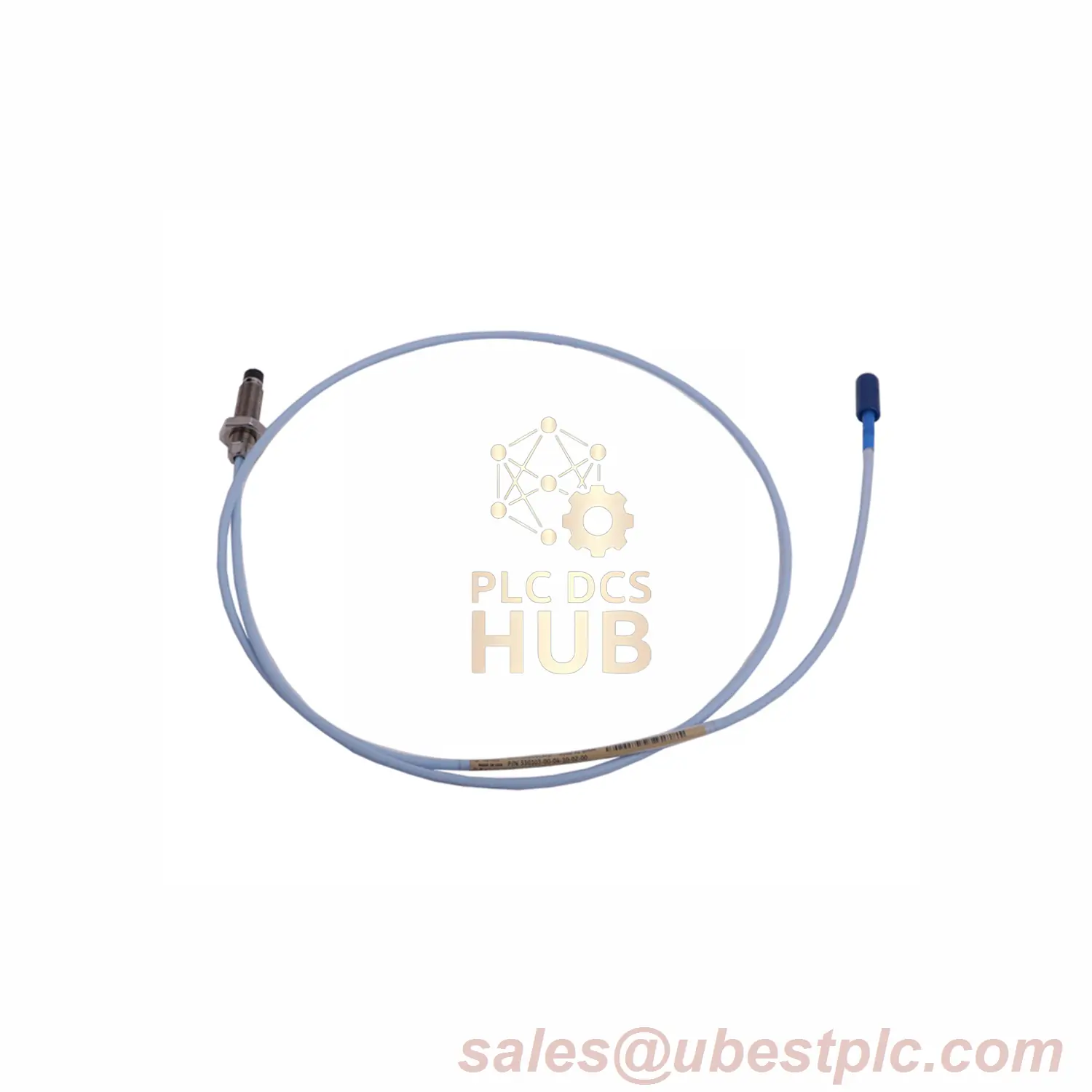

Bently Nevada 3300 XL 8 mm Proximity Probe 330103-00-05-50-02-00
Model: 330103-00-05-50-02-00
Configuration Breakdown
- 330103: 8 mm Probe, M10x1 Thread (Unarmored)
- 00: Unthreaded Length = 0 mm
- 05: Case Length = 50 mm
- 50: Cable Length = 5.0 m (16.4 ft)*
- 02: ClickLoc Miniature Connector
- 00: No Agency Approval Required
*Compatible only with 5-meter Proximitor sensors.
Key Technical Specifications
- Linear Range: 0.25–2.3 mm (10–90 mils)
- DC Resistance: 8.73 Ω ±0.50 @ 5.0 m
- Output Signal: -1 to -17 Vdc (Optimal Gap: -9 Vdc = 1.27 mm)
- Temperature Range:
- Probe: -52°C to +177°C
- Cable: -51°C to +260°C
- Weight: 323 g/m (11.4 oz)
Installation & Compatibility
- Thread: M10x1 (15 mm Max Engagement)
- Wiring: 16–24 AWG Shielded Triad (Max 305 m)
- Seal: Viton® O-Ring (Pressure Testing Optional)
- Humidity: <3% ASF Variation @ 93% RH (IEC 68-2-3)
Industrial Use Cases
- Underground Mining Conveyors: Monitors belt roller bearings in high-vibration, dusty environments using 5.0 m cable for remote sensor placement.
- Industrial Centrifuges: Detects rotor imbalance in chemical processing plants with 50 mm compact case for confined installations.
Compliance & Safety
- Material: AISI 303/304 SST & PPS for corrosion resistance.
- Safety: Compatible with non-incendive (nA/ec) systems.
Contact: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
