Bently Nevada – Probe Without Armor ATEX-Certified 330103-06-15-05-02-05

Description

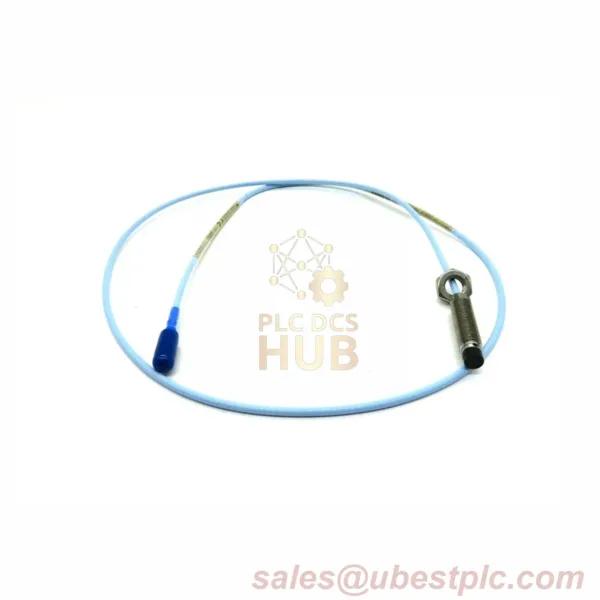

Bently Nevada 3300 XL 8mm Proximity Probe: Precision Vibration Monitoring

Key Electrical Parameters

• Brand: Bently Nevada
• Model: 330103-06-15-05-02-05
• DC Resistance: 7.45Ω ±0.5Ω (1m cable)
• Linear Range: 0.25–2.3mm (-1V to -17V DC)
• Recommended Gap: 1.27mm (-9V DC)
• Max Cable Length: 305m (shielded triad cable)

Installation & Compatibility

• Thread: M10×1 (max engagement: 15mm)
• Unthreaded Length: 60mm
• Case Length: 150mm
• Connector: Miniature coaxial ClickLoc
• Wiring: 0.2–1.5mm² shielded triad (16–24 AWG)
• Weight: 323g/m

Packaging & Shipping

Includes probe, cable (0.5m), and connector. Ships via FedEx/UPS/DHL. 12-month warranty.

Applications

Ideal for:
• Turbine shafts
• Pump bearings
• Gearbox monitoring
• Rotating machinery in oil/gas/chemical plants

Maintenance & Diagnostics

• Seal material: Viton® O-ring (pressure tested on request)
• Avoid temps < -34°C to prevent seal failure
• Check resistance tolerance (±0.5Ω) monthly

Safety & Certifications

ATEX/IECEx/CSA certified for explosive environments (Class I Zone 0). Operating temp: -52°C to +177°C (extended tip: +218°C). Humidity resistance: <3% signal drift at 93% RH.

FAQ

Q: Cable length impact?
A: Signal rolloff at >305m; use shielded triad cables.

Q: Pressure rating?
A: Not tested by default; contact for custom pressure tests.

Q: Material specs?
A: Tip: PPS plastic; Case: AISI 303/304 SST.

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
