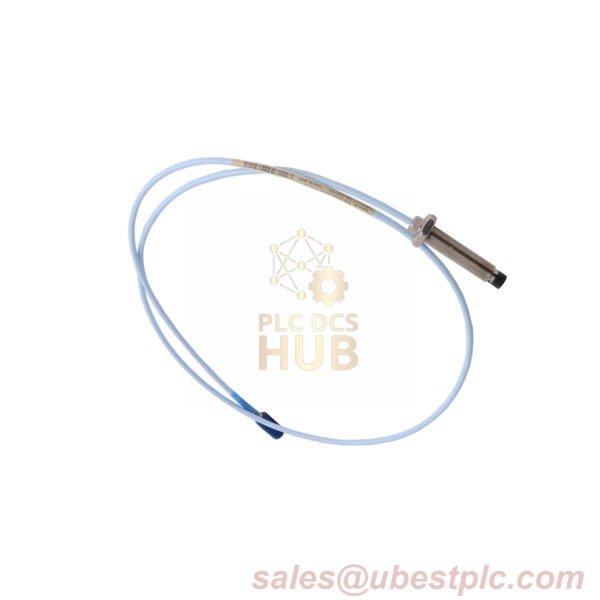

Bently Nevada 3300 XL 8 mm Proximity Probe (Model: 330104-00-04-10-01-05)
Description
The 330104-00-04-10-01-05 is a hazardous area-certified proximity probe engineered for precision vibration monitoring in explosive environments. Featuring a 1.0-meter armored cable, 40 mm ultra-compact case, and M10 x 1 thread, it delivers reliable performance in Zone 1/21 hazardous areas. With CSA, ATEX, and IECEx certifications, it’s ideal for confined spaces requiring explosion-proof compliance.
Technical Specifications
| Suffix Code | Parameter | Specification |
|---|---|---|
| AA: 00 | Unthreaded Length | 0 mm (Full thread engagement) |
| BB: 04 | Case Length | 40 mm (1.57 in) |
| CC: 10 | Cable Length | 1.0 m (3.28 ft) |
| DD: 01 | Connector Type | ClickLoc™ with MIL-STD-810H compliant protector |
| EE: 05 | Certifications | CSA/ATEX/IECEx (Group IIC/T4) |
| Electrical | ||
| Operating Voltage | -17.5 Vdc to -26 Vdc (≥-23.5 Vdc for linearity) | |
| Resistance @1.0m | 7.59 Ω ±0.50 (Center to Outer Conductor) | |
| Output Noise | <2 mV RMS (10 Hz–15 kHz) | |
| Mechanical | ||
| Tip Material | PPS (UL94 V-0, 1.5 kN tensile strength) | |
| Armor Rating | 304 SST, 330 N crush resistance | |
Support & Ordering
For COO or Ex documentation requests:
Email: sales@ubestplc.com
