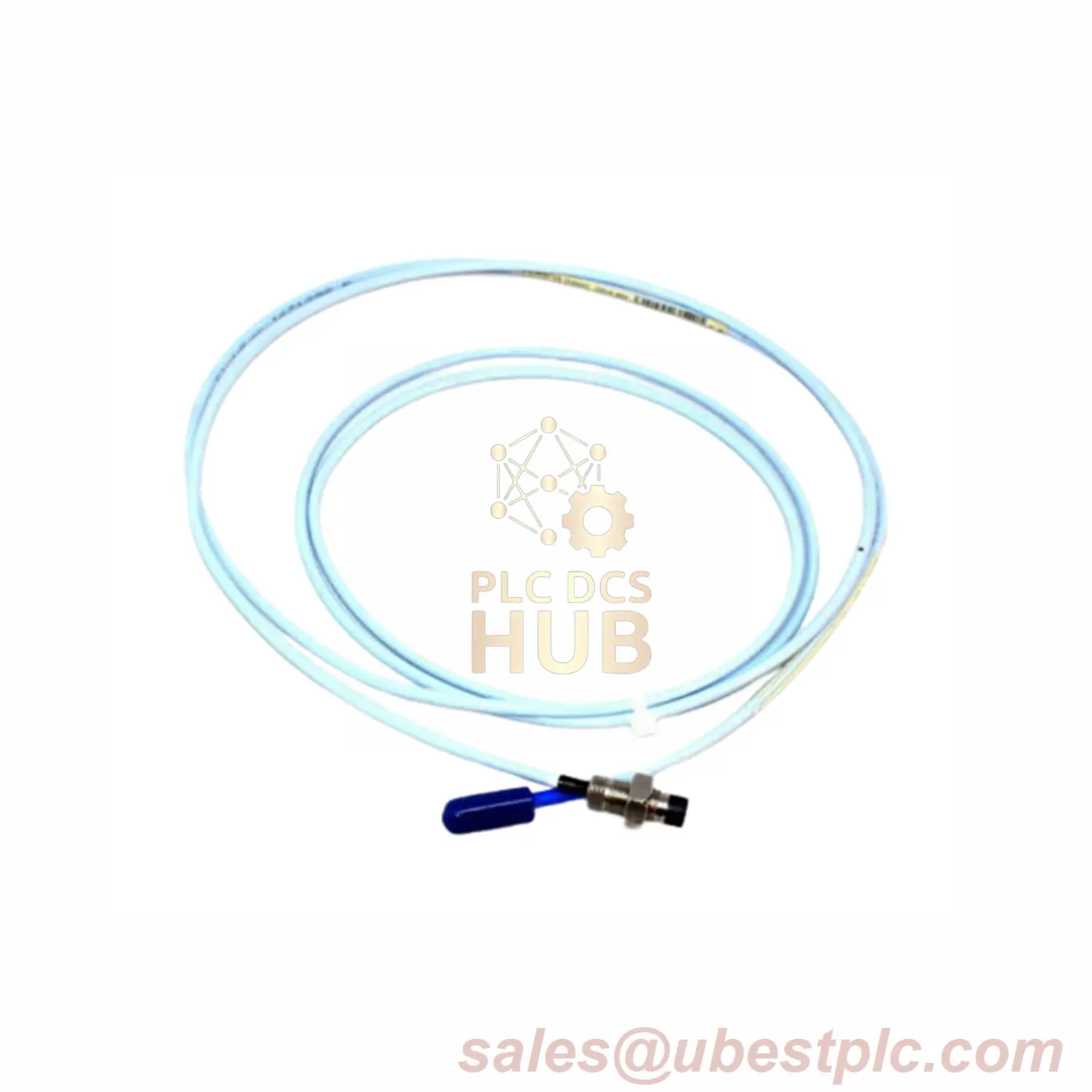

???? Product Overview: Bently Nevada 330905-00-08-05-01-00 NSv Proximity Probe
330905-00-08-05-01-00 Brand New & Original with 12-Month Factory Warranty. Direct replacement for 3300 RAM probes, offering enhanced chemical resistance and superior side-view performance for process compressors.
???? Suffix Breakdown & Configuration
- • Model: 330905
- • Thread: M10X1 (no armor)
- • Unthreaded Length: 00 mm
- • Case Length: 80 mm (-08-)
- • Total Probe Length: 0.5 meters / 20 inches (-05-)
- • Connector: ClickLoc Mini-Coaxial with protector (-01-)
- • Agency Approvals: None (-00-)
⚡ Key Performance Metrics
- • DC Resistance: 4.0Ω ±0.5Ω (0.5m probe)
- • Frequency Response: 0-10kHz (±3dB) with 305m field wiring
- • Linear Range: 0.25-1.75mm (10-70 mils)
- • Scale Factor: 7.87V/mm ±12.5%
- • Max Torque: 0.56N·m (5 in·lb)
???? Installation & Compatibility
- • Thread Engagement: 15mm max
- • Cable Specs: 75Ω coaxial FEP, 25.4mm bend radius
- • Temperature Range: -52°C to +177°C
- • Pressure Seal: Viton O-ring (not factory tested)
