Description

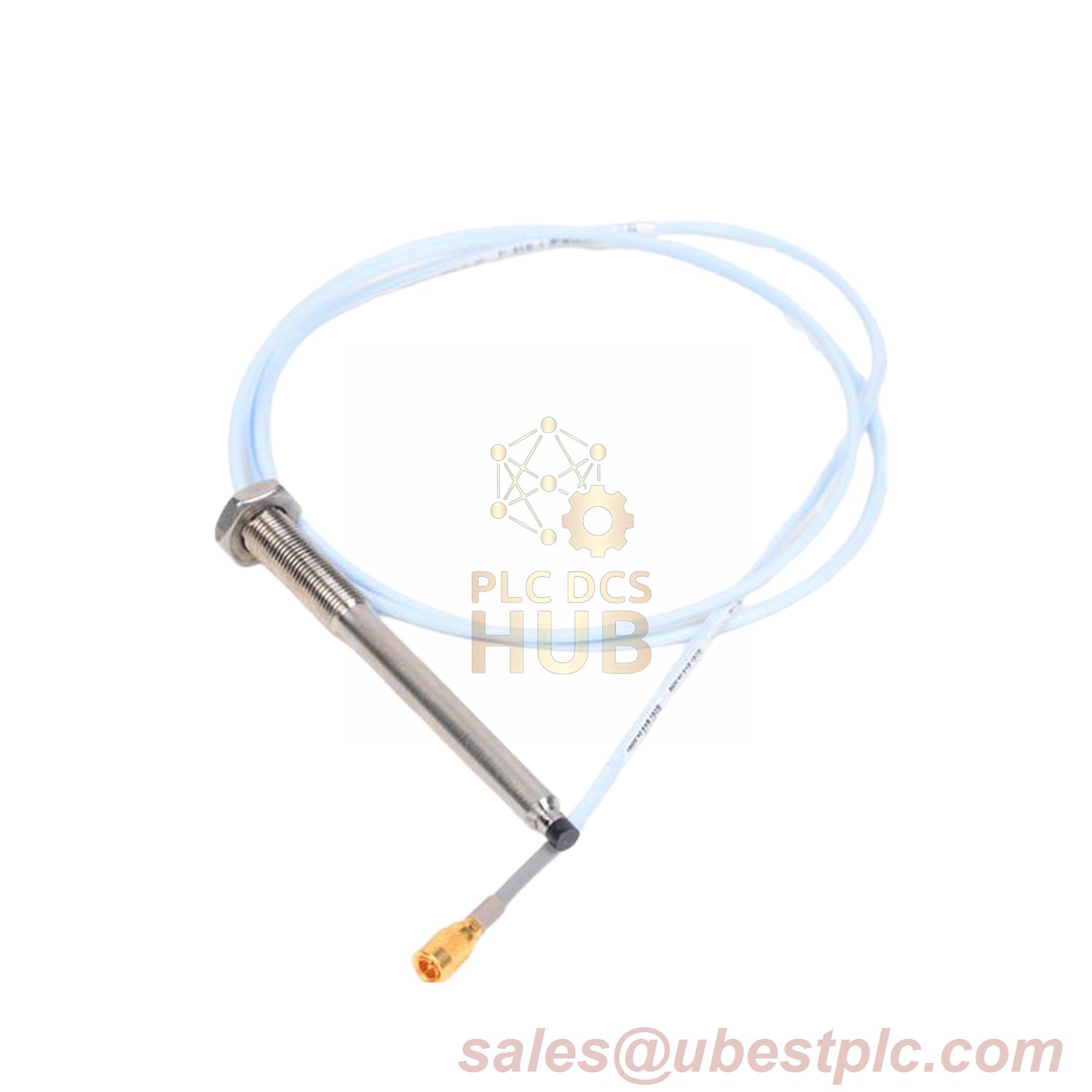

The Bently Nevada 330905-00-16-10-02-05 is a 3300 NSv Proximity Probe engineered for hazardous area monitoring with global certifications. Featuring a 160 mm stainless steel case and 1.0 m armored cable, this probe combines chemical resistance with precision vibration measurement. Its reverse-mount design and CSA/ATEX/IECEx approvals make it ideal for explosive environments in oil & gas and chemical processing.
Technical Specifications
- Model: 330905-00-16-10-02-05
- Suffix Code Breakdown:
- -00: 0 mm unthreaded length
- -16: 160 mm (6.3″) case length
- -10: 1.0 m (39″) cable length
- -02: ClickLoc™ connector + standard cable
- -05: CSA/ATEX/IECEx certified
- Electrical:
- DC Resistance: 4.2 Ω ±0.5 (1.0m length)
- Scale Factor: 7.87 V/mm (±12.5%)
- Frequency Response: 0-10 kHz (±3 dB)
- Linearity: ±0.06 mm (±2.3 mils)
- Mechanical:
- Case: AISI 304 SST | Tip: PPS
- Thread: M10X1 (33.9 N·m max torque)
- Bend Radius: 25.4 mm (1.0″)
- Environmental:
- Temperature: -52°C to +177°C (-62°F to +351°F)
- Certifications: ATEX II 3G/IIC T4, IECEx, CSA
- Pressure Seal: Viton® O-ring (500 psi differential)
Key Applications
- API 618/670-compliant process gas compressors
- Hazardous area (Zone 1/21) machinery monitoring
- High-speed turbomachinery in chemical plants
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
