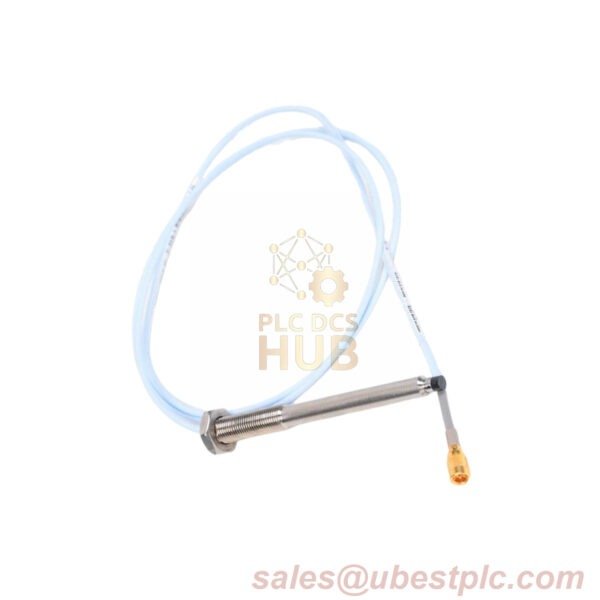

Bently Nevada 3300 NSv Proximity Probe (Model: 330905-00-21-05-02-00)
Product Overview
The 330905-00-21-05-02-00 is a deep-mount industrial probe with a 210mm stainless steel case and 0.5m armored cable. Engineered for critical machinery monitoring, it operates in extreme conditions from -52°C to +177°C, providing precise vibration measurement in compressors and rotating equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number Code | 00(Full Thread)-21(210mm)-05(0.5m)-02(ClickLoc)-00(Std) |
| Electrical Resistance | 4.0Ω ±0.5 @ 0.5m |
| Linear Measurement Range | 0.25-1.75mm (±0.06mm accuracy) |
| Frequency Response | 0-10 kHz (±3dB) |
| Case Material | AISI 304 Stainless Steel |
| Pressure Rating | 5 bar (Viton® O-ring) |
Why Choose This Model?
- Maintains ±3dB signal integrity at 10 kHz over 305m cables
- Withstands 25G vibration (IEC 60068-2-6)
- PPS tip resists H₂S corrosion up to 5,000 ppm
