Bently Nevada – Proximity Probe With Armor 330102-00-24-10-02-CN

Description

Core Specifications

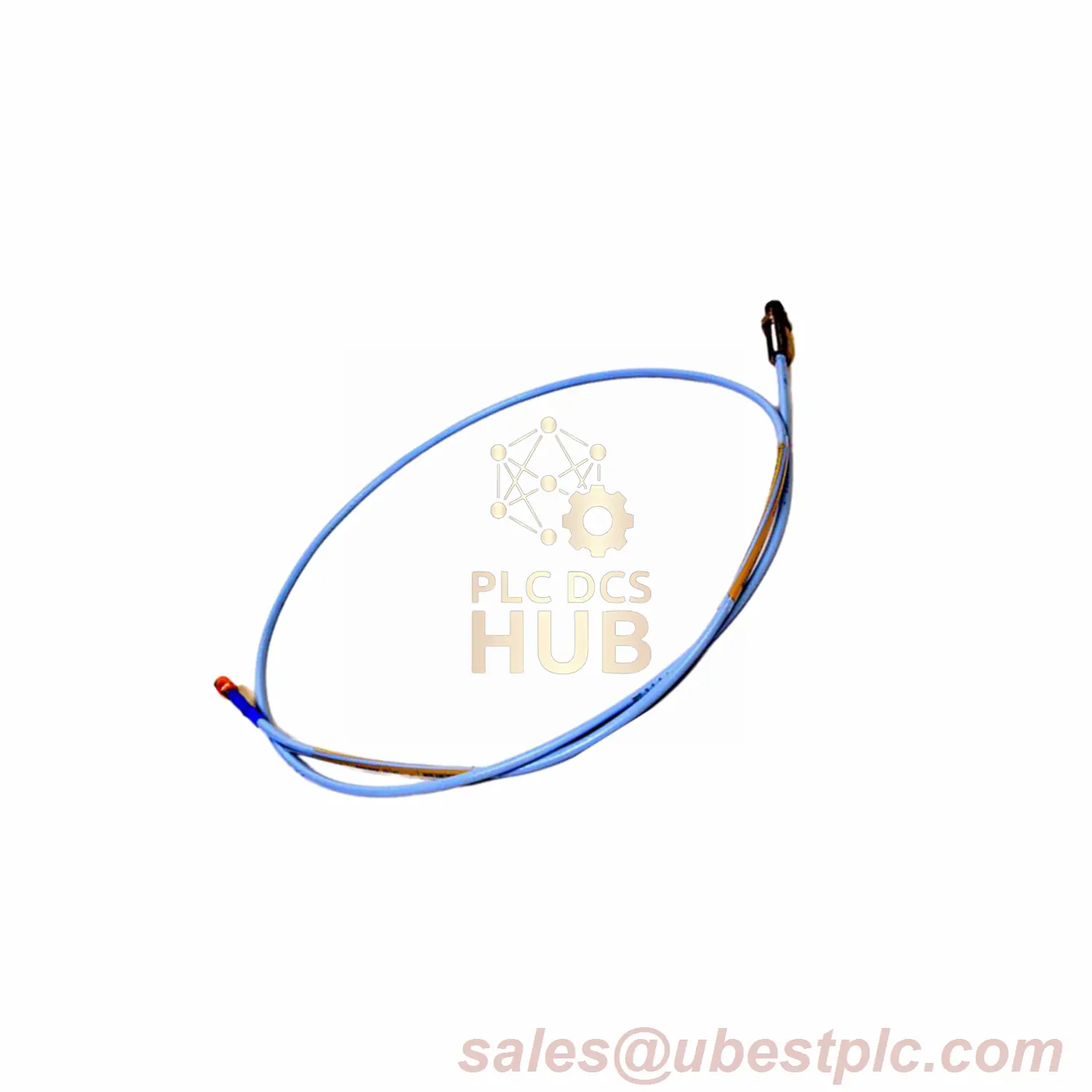

Bently Nevada 3300 XL 8mm Probe (Model: 330102-00-24-10-02-CN) offers precise vibration detection for critical machinery. Built with a 2.4-inch stainless steel case (Option 24) and PPS tip, it is ideal for tight spaces. Includes a 1.0m cable with ClickLoc connector (Option 02).

Design Highlights

• Unthreaded Length: 0 in (Option 00)
• Certification: CN (Country-Specific Approval)
• Thread: 3/8-24 UNF (Max grip: 0.563 in)
• Humidity Test: <3% ASF change (93%, 56 days)

Performance Details

• Range: 0.25–2.3 mm (Linear output: -1 to -17 Vdc)
• Resistance: 7.59Ω ±0.5 (1.0m cable)
• Weight: 323 g/m (11.4 oz per meter)
• Temp Limits: -52°C to +177°C (Probe), +260°C (Cable)
• Pressure Seal: Viton® O-ring (Contact us for testing).

Setup Guide

Install using 3/8-24 UNF thread. Set gap to -9 Vdc (~1.27 mm) for best results. Avoid temperatures below -34°C to protect the seal.

Compatibility Notes

• Use 1.0m cable with 5m/9m Proximitor sensors.
• 3m cables (Model 330101 only) require 9m Proximitor.

Safety Certifications

• Class I, Zone 0: AEx/Ex ia IIC T5-T1 Ga
• Class I, Zone 2: AEx/Ex nA IIC T5-T1 Gc
• Country Approval: CN (Local compliance)

Package Contents

• Probe, 1.0m cable
• 12-month limited warranty.

Industry Application

Used in wind turbine gearboxes to monitor shaft vibrations, reducing maintenance costs and preventing gear failures.

Questions? Reach us at sales@ubestplc.com or +86 158 8020 0923

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
