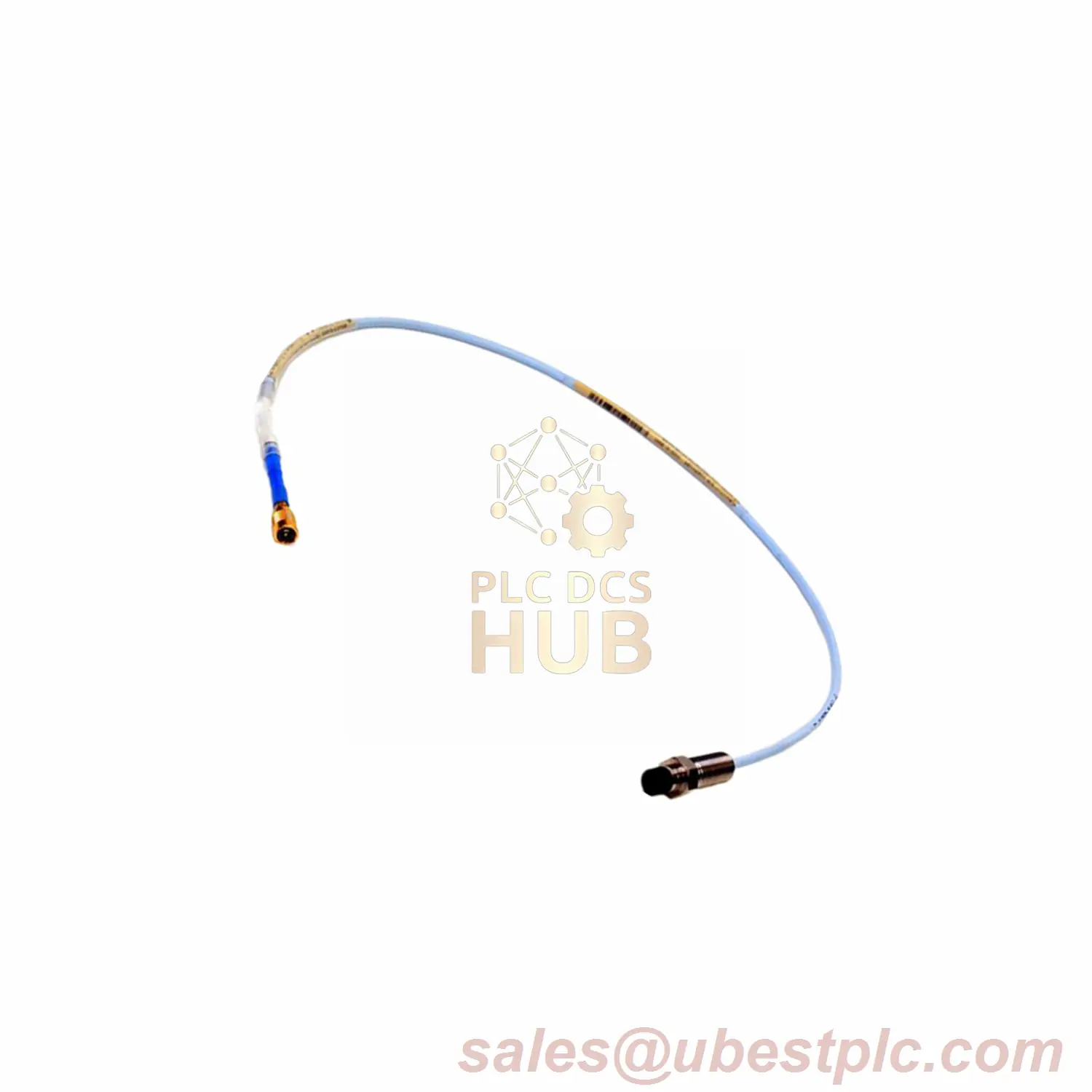

The Bently Nevada 330103-00-05-10-11-00 is a high-performance 3300 XL 8 mm Proximity Probe designed for precise vibration and position monitoring in industrial applications. Featuring an M10x1 thread, unarmored construction, and a 1.0-meter cable, this probe delivers reliable measurements with a linear range of 2 mm (80 mils) and a recommended gap setting of -9 Vdc (50 mils). Its robust design includes a PPS probe tip and stainless steel case, ensuring durability in harsh environments.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- Product No.: 330103-00-05-10-11-00
- Suffix Details:
- 00: No armor
- 05: 50mm case length
- 10: 1.0m cable
- 11: Miniature ClickLoc connector
- 00: No agency approval
- Measurement Range: 0.25–2.3 mm (10–90 mils)
- Accuracy: ±0.50 Ω resistance tolerance
- Output Signal: -1 to -17 Vdc (linear range)
- Operating Temperature: -52°C to +177°C (standard)
- Probe Resistance: 7.59 Ω ±0.50 @1.0m
- Cable Specification: 3-conductor shielded triad, up to 305m
Installation Guidelines
- Use M10x1 thread with max 15mm engagement.
- Recommended gap setting: -9 Vdc (50 mils) for radial vibration.
- Field wiring: 16–24 AWG shielded cable.
- Avoid temperatures below -34°C to preserve pressure seal integrity.
Compatibility
Compatible with 3300 XL Proximitor Sensors and systems supporting intrinsically safe (ia) or non-incendive (nA/ec) configurations. Suitable for use with galvanic isolators or zener barriers per IEC/ATEX standards.
Certifications
- ATEX/IECEx: AEx/Ex ia IIC T1-T5, AEx/Ex nA IIC T1-T5
- Class I Div 2 (Groups A-D), Class II/III (Groups E-G)
Application Examples
- Gas turbine shaft vibration monitoring
- Compressor thrust position measurement
- Industrial pump health diagnostics
