Product Description

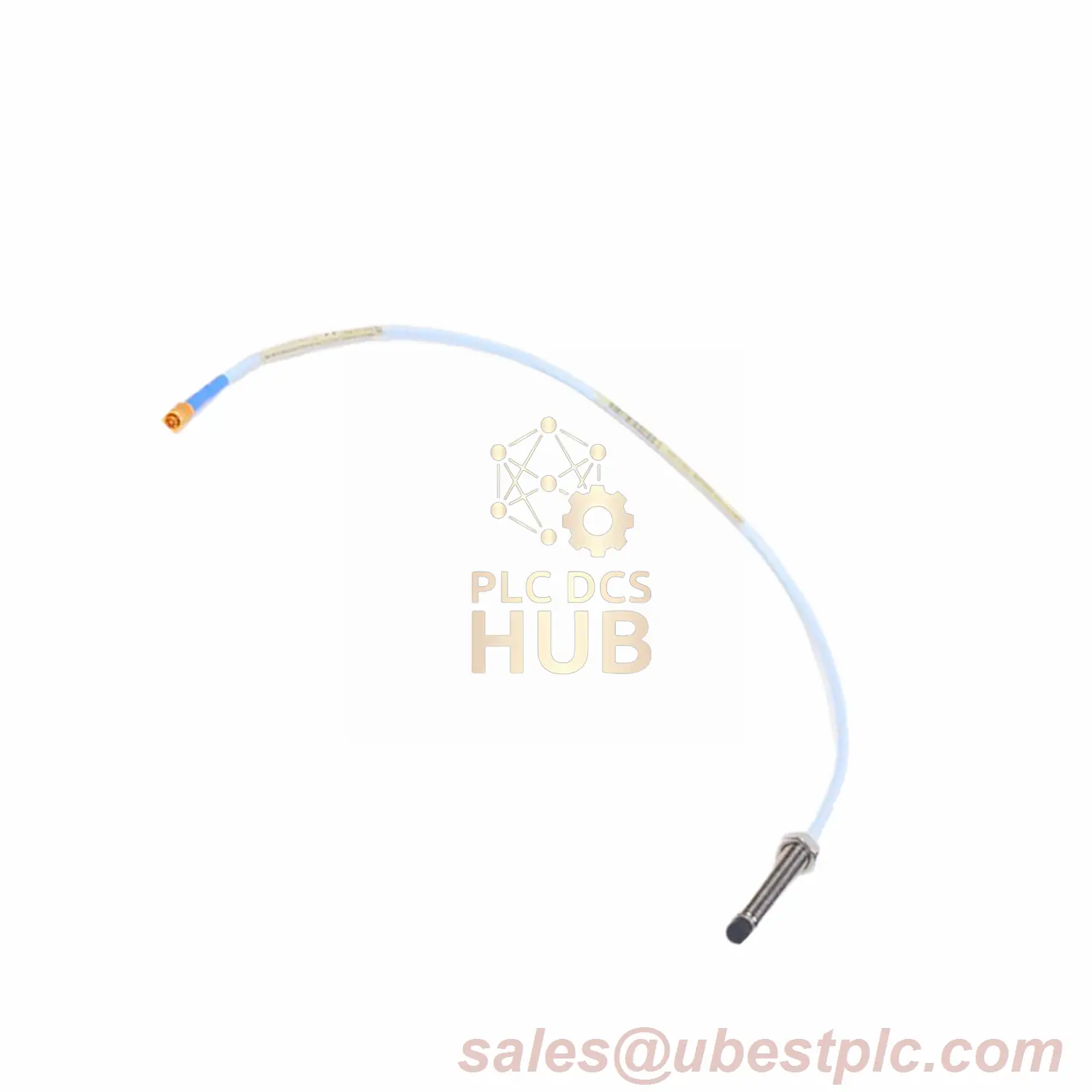

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model: 330103-04-09-10-02-CN) delivers precision vibration and displacement measurement for critical industrial applications. Built with a stainless steel case and PPS probe tip, it withstands extreme conditions while maintaining accuracy. Features a Viton® O-ring seal for pressure differential resistance and an M10x1 thread for secure mounting.
Technical Data
- Brand: Bently Nevada
- Model: 330103-04-09-10-02-CN
- Range: 2 mm (80 mils), linear from 0.25 mm to 2.3 mm
- Accuracy: DC Resistance 7.59 ±0.50 Ω (1.0 m cable)
- Output Signal: -1 to -17 Vdc (Recommended gap: -9 Vdc @1.27 mm)
- Operating Temperature: -52°C to +177°C (Standard) / -52°C to +218°C (Extended)
- Weight: 323 g/m (11.4 oz)
- Humidity Tolerance: ≤3% ASF variation at 93% RH (IEC 68-2-3)
Model Suffix Breakdown
- 04: Unthreaded Length = 40 mm
- 09: Case Length = 90 mm
- 10: Cable Length = 1.0 meter
- 02: Miniature ClickLoc connector
- CN: Country-specific agency approvals
Installation Guidelines
- Use shielded triad cable (0.2-1.5 mm² / 16-24 AWG) for noise immunity
- Max wiring distance: 305 meters (1,000 feet)
- Thread engagement limit: 15 mm for M10x1
- Avoid temperatures below -34°C (-30°F) to preserve seal integrity
Compatibility & Certifications
- ATEX/IECEx: AEx/Ex ia IIC T1-T5 (Zone 0), AEx/Ex ec IIC (Zone 2)
- Hazardous Groups: Class I/II/III (Gas/Dust)
- Compatible with non-incendive circuits (Drawing 140979)
Application Examples
- Oil refinery pump vibration analysis
- Paper mill roll eccentricity detection
- Wind turbine gearbox health monitoring
Contact: sales@ubestplc.com for custom pressure seal validation or bulk orders.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
