Description

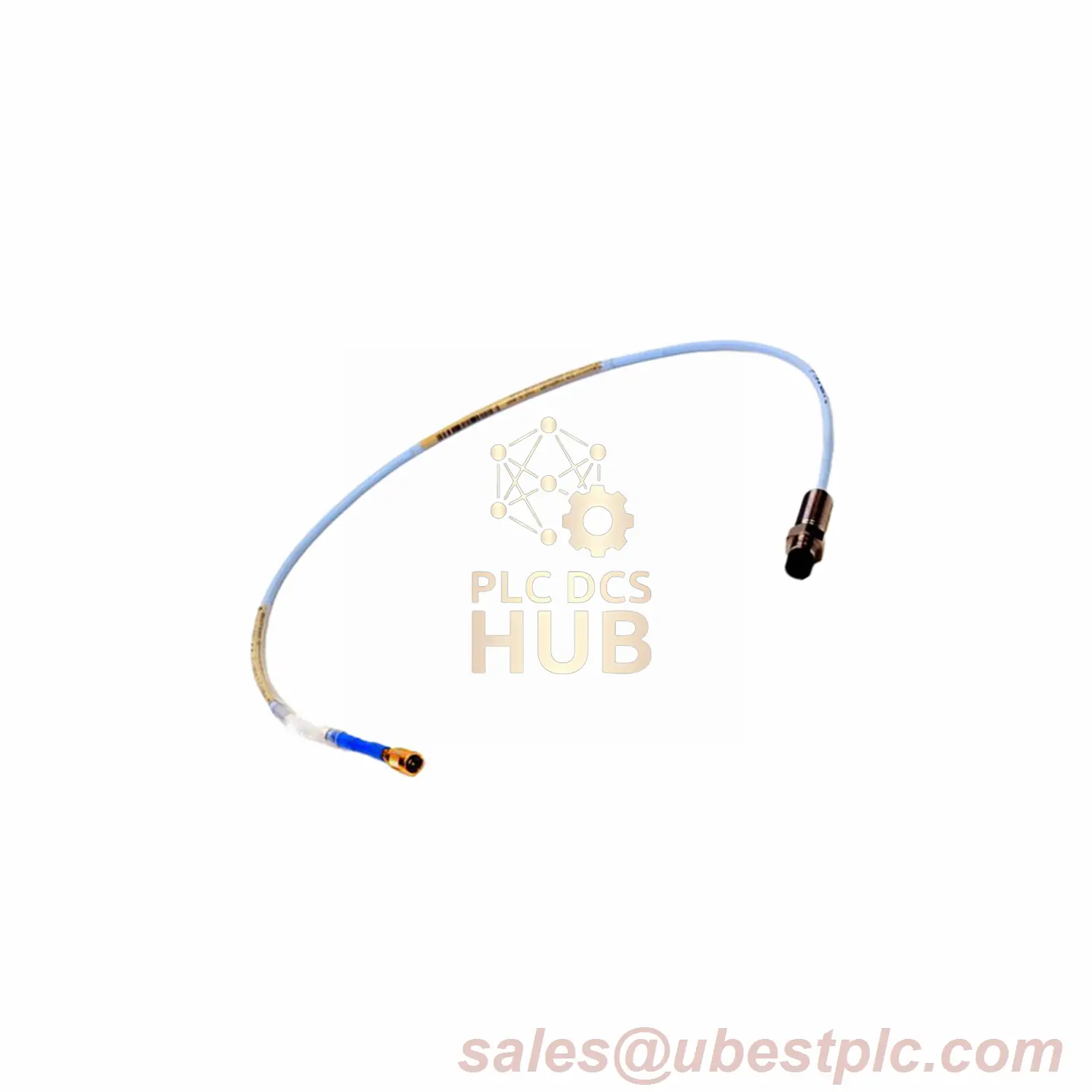

Bently Nevada 3300 XL 8 mm Proximity Probe
Versatile industrial sensor (Model Number 330103-00-05-10-02-00) with optimized 50mm housing for space-constrained installations, delivering precision measurements in extreme thermal conditions.
Technical Profile (P/N 330103-00-05-10-02-00)
- Case Code 05: 50mm threaded body
- Cable Code 10: 1.0m integral wiring
- Connector 02: MIL-SPEC ClickLoc®
- RFI Suppression: 40 dB @ 1MHz-1GHz
- Vibration Immunity: 15g RMS (10-2000Hz)
- Cable Flex Life: 1M cycles @ 25mm radius
- Seal Integrity: 5 bar static pressure
Certification & Compliance
- MIL-STD-202G Method 214
- EN 61373 Category 1 Class B
- ATEX II 3G Ex nA nc IIC T4
Material Science
- Tip Coating: Xylan® 1014 low-friction layer
- Thread Lubricant: Molykote 111 compound
- Cable Armor: 316L stainless steel braid
Performance Validation
- 500 thermal shock cycles (-55°C ↔ +125°C)
- 0.02% linearity deviation @ 2.3mm gap
- ±0.8 μV/°C thermal EMF coefficient
Application Spotlight: Monitors turbine blade clearance in aerospace test stands with 0.05mm resolution. Configuration files available via sales@ubestplc.com.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
