Description
Product Introduction

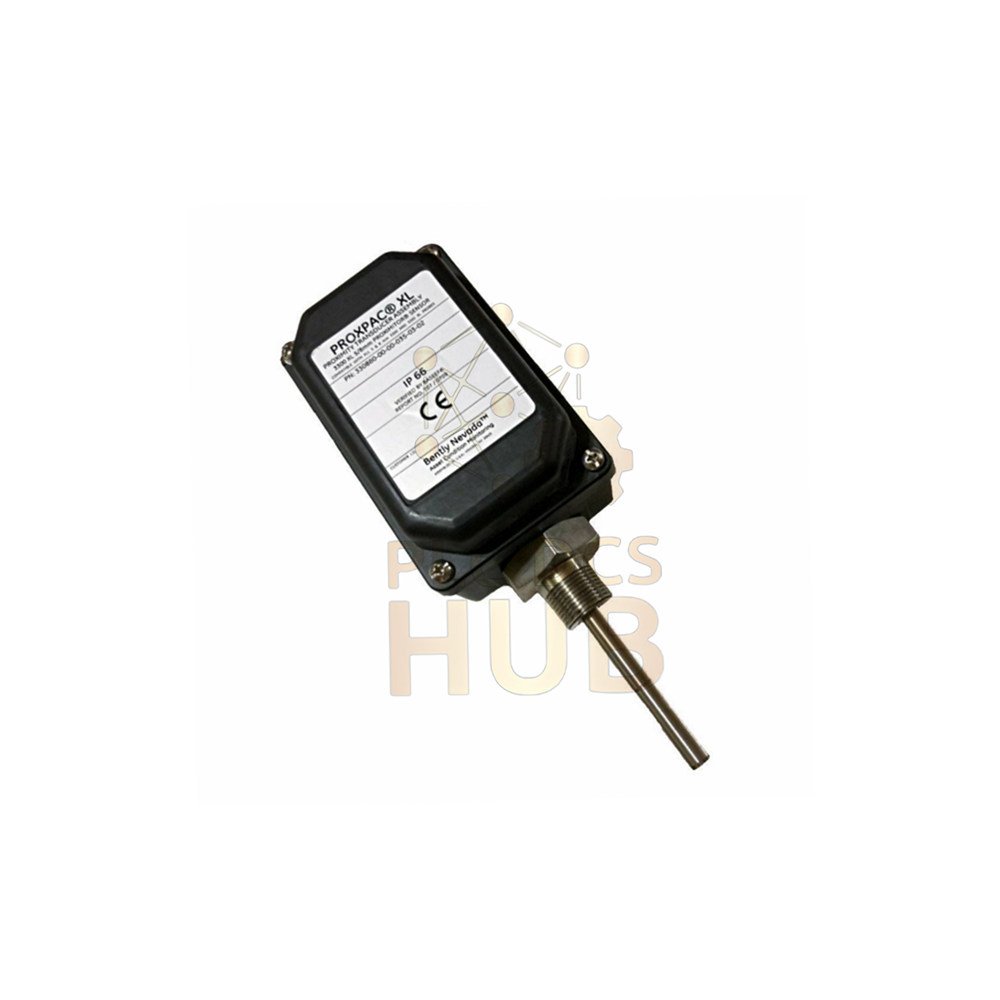

Genuine Bently Nevada PROXPAC XL Proximity Transducer. Made in USA. This is a complete, pre-assembled vibration measurement system. It is new in factory packaging.
Key Benefits
- Plug-and-Play System: Fully assembled and ready for installation.
- Robust Outdoor Housing: UV-resistant, IP66 rated for harsh environments.
- High Precision: Excellent linearity and frequency response for accurate data.
- Vibration Isolation: Includes silicone isolators to protect the signal from noise.
Complete System Specifications
- Brand & Model: Bently Nevada 330881-16-04-132-03-02
- Part Number Configuration:
- 330881: PROXPAC XL Transducer Base
- 16: Probe = 3300 XL 8 mm, no approvals
- 04: Standoff Adapter (B) = 40 mm
- 132: Probe Penetration (C) = 132 mm
- 03: Fittings = One M20 fitting, two plugs
- 02: Mounting Thread = 3/4-14 NPT
- Measurement Performance:
- Linear Range: 2.0 mm (0.25 to 2.3 mm from target)
- Sensitivity (Scale Factor): 7.87 V/mm ±5%
- Linearity (DSL): Better than ±0.025 mm
- Frequency Response: 0 to 10 kHz
- Recommended Gap: 1.27 mm (50 mils)
- Min. Target/Shaft: 15.2 mm diameter / 50.8 mm shaft
- Electrical Data:
- Power Supply: -17.5 to -26 VDC
- Output Impedance: 50 Ω
- Field Wiring: Up to 305 meters of triax cable
- Probe Cable: 1 meter, 75 Ω triaxial, FEP insulated
- Mechanical & Environmental:
- Housing: Conductive, UV-resistant PPS (IP66 Rated)
- Probe Case & Sleeve: AISI 304 Stainless Steel
- Temperature Range: -51°C to +177°C (Probe)
- Impact Strength: Certified 4J impacts at extreme temperatures
- Weight: 1.44 kg typical
- Retaining Nut Torque: 29.5 N·m recommended
What’s Included?
The 330881-16-04-132-03-02 system includes:
- One PROXPAC XL housing with cover
- One pre-installed 3300 XL 8 mm probe (1m cable)
- Stainless steel sleeve, chain, and grounding liner
- Vibration isolation mounts (extra soft silicone)
- One M20 fitting and two plugs
Ideal Applications
- Permanent vibration monitoring on critical machinery (turbines, fans).
- Outdoor installations requiring weatherproof (IP66) protection.
- Applications where electrical noise and vibration isolation are important.
Ordering & Support
- Condition: 100% New Original.
- Warranty: Full 12-month manufacturer warranty.
- Shipping: Fast delivery via FedEx, UPS, or DHL worldwide.
- Need help? Contact our experts on WhatsApp: +86 158 8020 0923.
Frequently Asked Questions (FAQ)
System Configuration
What do the “B” and “C” dimensions mean?
“B” (40mm) is the standoff. “C” (132mm) is how far the probe sticks into the machine. These set the measurement point.
Is the transducer cable included?
Yes. A 1-meter triaxial cable connects the internal probe to your junction box. You need longer field wiring to the monitor.
Performance & Installation
What is the benefit of “vibration isolation”?
The silicone mounts reduce shaking from the housing. This gives a cleaner vibration signal from the machine shaft.
What voltage should I supply?
Use -24 VDC standard. If using safety barriers, ensure the supply is between -23 VDC and -26 VDC.
Purchasing Guidance
Why choose PROXPAC XL over separate parts?
It saves time. The probe is already aligned and sealed in the housing. You install one complete unit, not multiple pieces.
