Bently Nevada Reverse Mount Probe 330105-02-12-05-02-00

Description

Description

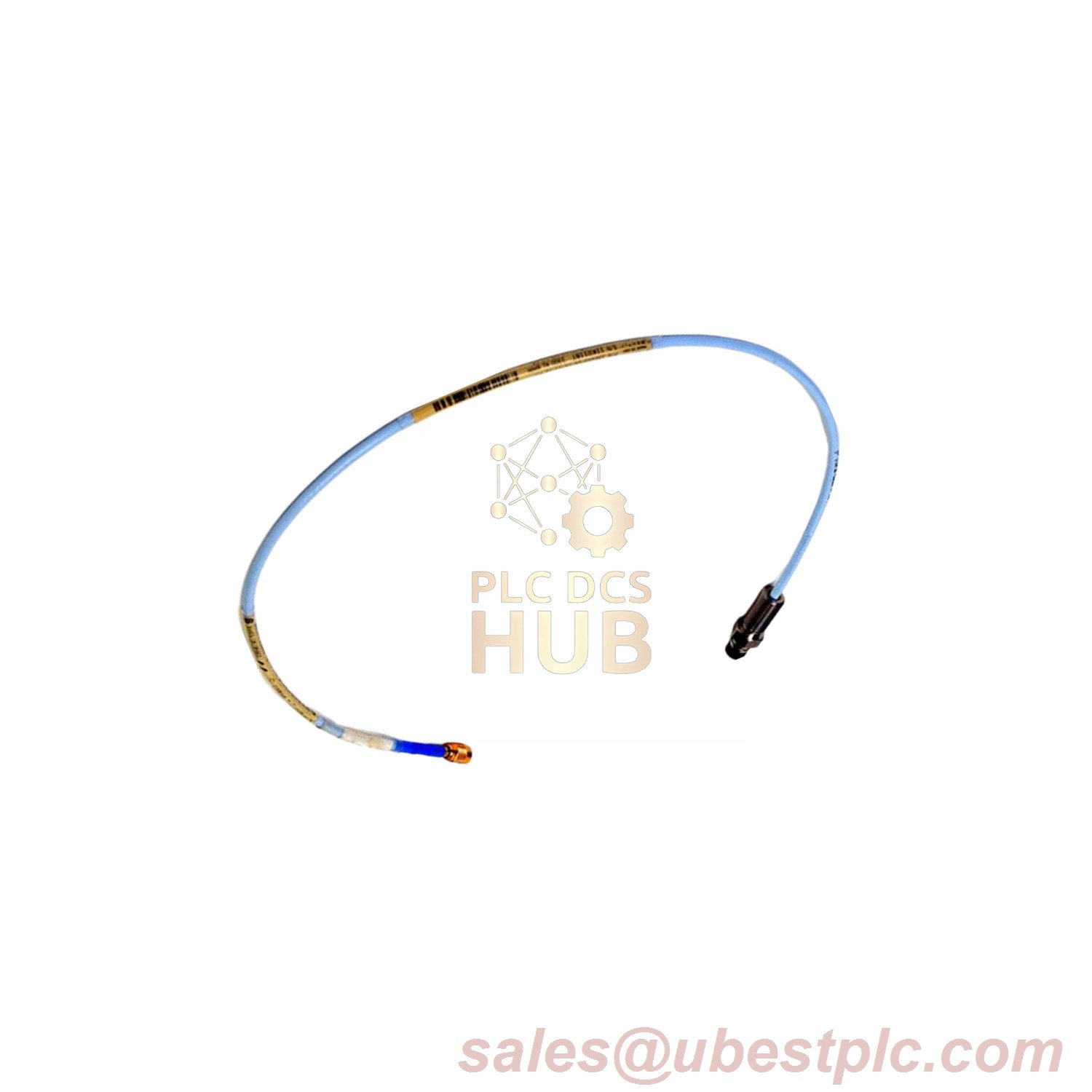

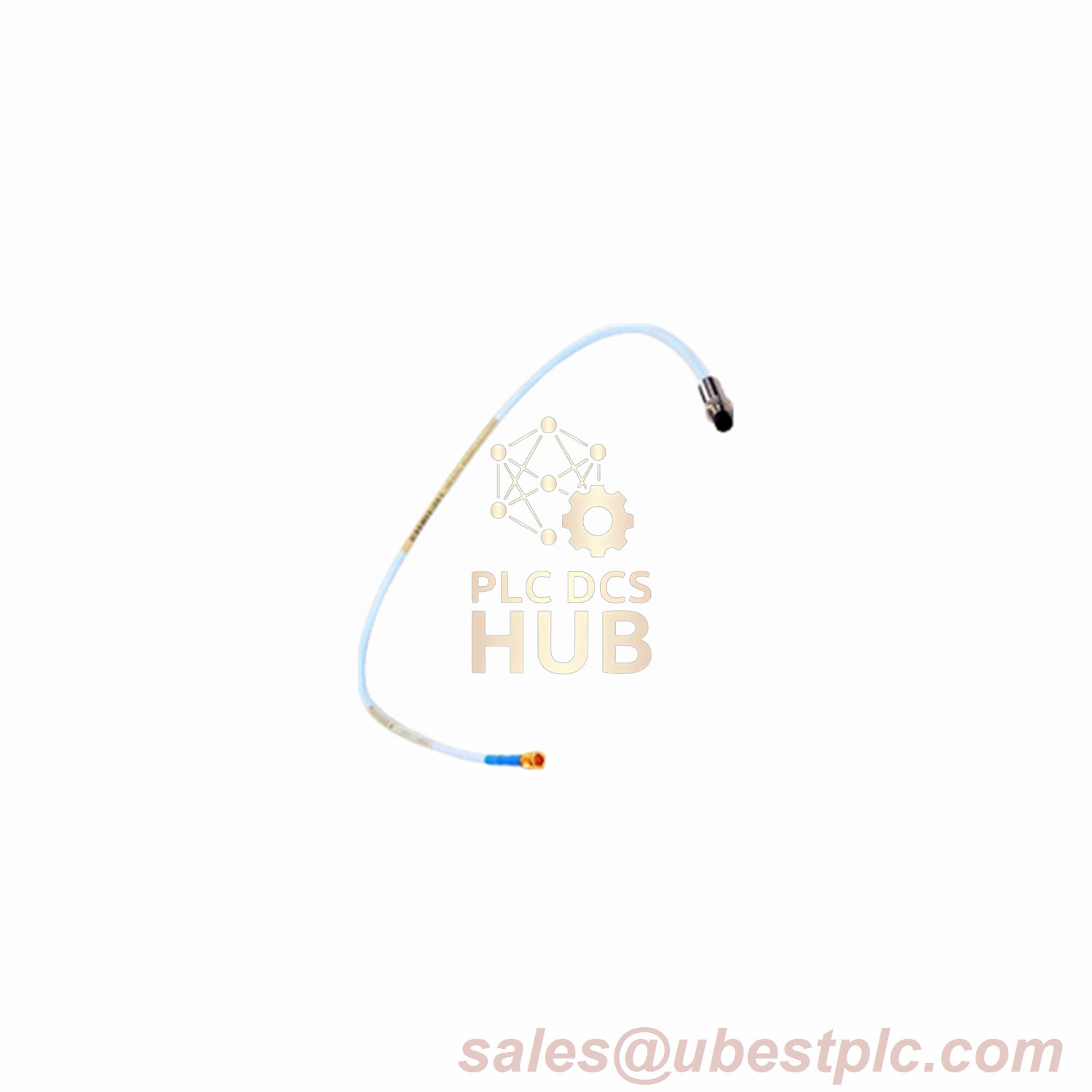

The Bently Nevada 330105-02-12-05-02-00 3300 XL 8 mm Probe is a compact, precision-engineered sensor manufactured in the U.S.A. Designed for installations requiring minimal cable length, this 0.5 m (1.6 ft) probe features a Miniature ClickLoc connector and stainless steel construction. Ideal for non-certified environments, it delivers reliable performance without regulatory compliance overhead.

Technical Specifications

• Brand/Model: Bently Nevada 330105-02-12-05-02-00
• Suffix Details:
  • 05: 0.5 m cable length
  • 02: ClickLoc coaxial connector
  • 00: No agency certifications
• Electrical:
  • DC Resistance: 7.45Ω ±0.50
  • Cable Options: FEP/PFA insulation (0.5-9m)
• Mechanical:
  • Thread: 3/8-24 UNF (14.3 mm max engagement)
  • Tensile Strength: 330N (case) / 270N (connectors)
• Environmental:
  • Temp Range: -52°C to +177°C (Standard)
  • Humidity: <3% ASF drift @ 93% RH (IEC 68-2-3)
