Bently Nevada – Reverse Mount Probe 330105-02-12-05-12-05

Description

Description

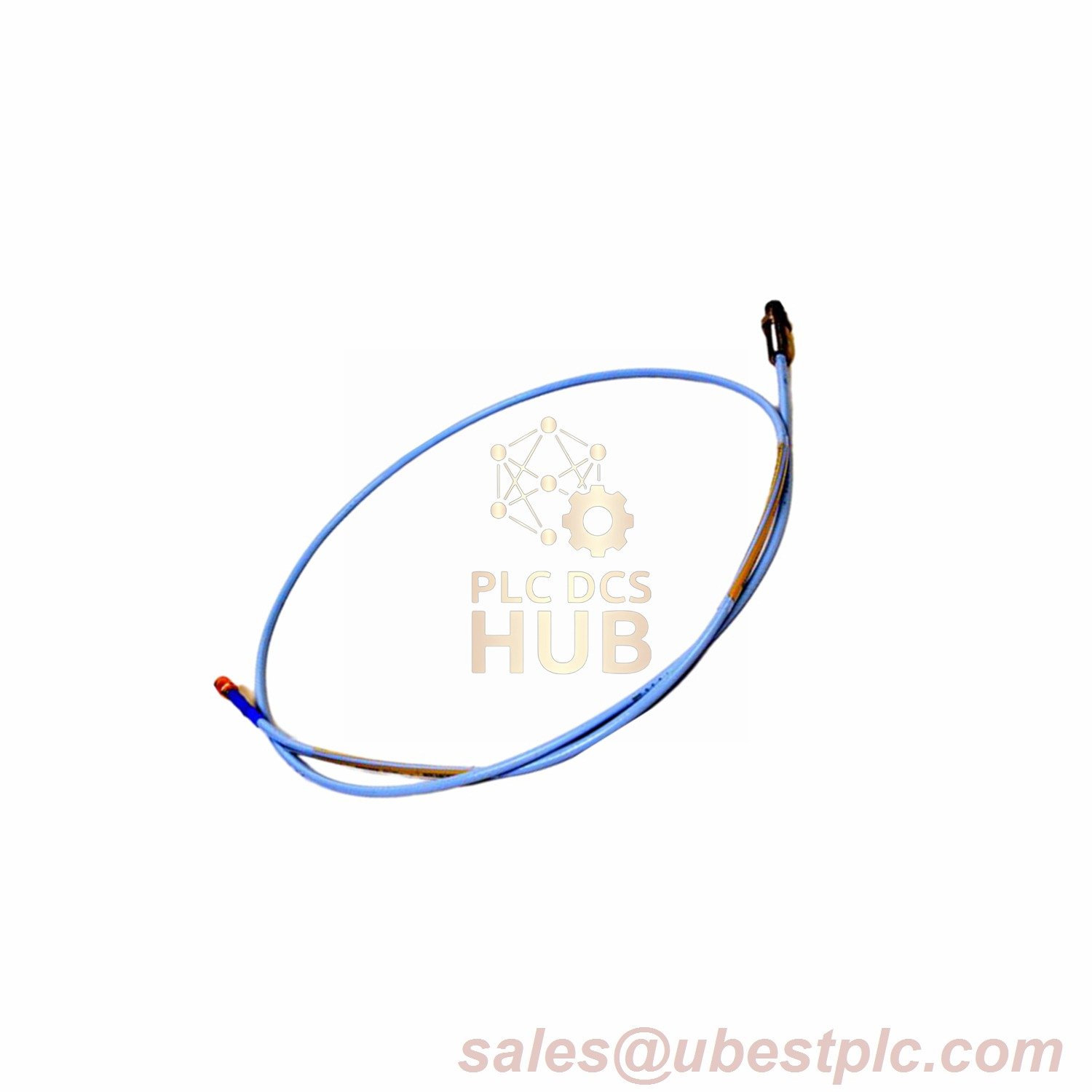

The Bently Nevada 330105-02-12-05-12-05 3300 XL 8 mm Probe is a hazardous-area certified sensor with a specialized 0.5 m (1.6 ft) FluidLoc cable. Designed for fluid-exposed environments, it combines CSA/ATEX/IECEx certifications with a stainless steel housing and PPS tip. Ideal for installations requiring both explosion-proof compliance and fluid resistance.

Technical Specifications

• Brand/Model: Bently Nevada 330105-02-12-05-12-05
• Suffix Decoding:
  • 05: 0.5 m cable length
  • 12: FluidLoc + ClickLoc connectors
  • 05: CSA/ATEX/IECEx approvals
• Core Performance:
  • Resistance: 7.45Ω ±0.50 @ 25°C
  • Insulation: FEP/PFA options (-52°C to +260°C)
  • Thread: 3/8-24 UNF (14.3 mm max depth)
• Robust Construction:
  • Housing: AISI 303/304 stainless steel
  • Seals: Viton® O-ring (-34°C limit)
  • Armor: Optional SST jacket (+115 g/m)
