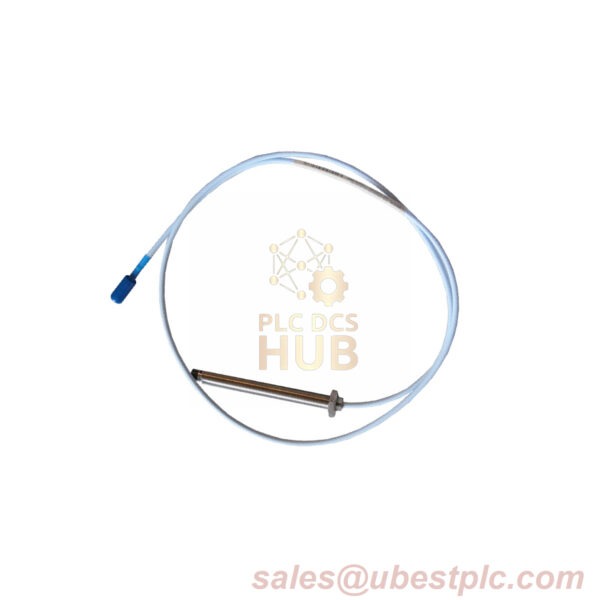

The Bently Nevada 330105 Reverse Mount Probe (Part No. 330105-02-12-50-02-05) is engineered for precision vibration analysis in explosive and high-temperature environments. Featuring a 5.0-meter cable and Miniature ClickLoc connector, this probe ensures reliable reverse-mount installations in demanding industrial settings. Certified for CSA, ATEX, and IECEx standards, it combines a rugged PPS plastic tip, stainless steel casing, and patented TipLoc/CableLoc technologies for durability in corrosive or high-vibration applications.

Technical Specifications for 330105-02-12-50-02-05

• Brand: Bently Nevada
• Model: 330105-02-12 (3300 XL 8mm Reverse Mount Probe)
• Part Number Breakdown:
  • 330105-02-12 – 3300 XL 8 mm Reverse Mount Probes
  • 50: 5.0-meter cable (16.4 feet)
  • 02: Miniature ClickLoc coaxial connector
  • 05: CSA, ATEX, IECEx certifications
• Electrical Parameters:
  • DC Resistance: 8.70 Ω ±0.49 (5.0m cable)
  • Operating Voltage: -23.8 Vdc to -26 Vdc (barrier-compatible)
• Mechanical Design:
  • Tip Material: Polyphenylene sulfide (PPS)
  • Case Material: AISI 316 stainless steel
  • Thread: 3/8-24 UNF, 0.563-inch engagement
  • Weight: 328 g/m (11.6 oz/ft)
• Temperature Range:
  • Standard (EPL Ga/Gc): -55°C to +235°C (-67°F to +455°F)
  • Extended (EPL Dc): -55°C to +265°C (cable/connector)
• Humidity Tolerance: <2.6% ASF shift at 95% humidity (IEC 68-2-3, 55 days)

Key Advantages

1. Certified Safety: Complies with CSA, ATEX, and IECEx for Zone 0/2 hazardous areas.
2. Extended Reach: 5.0-meter cable supports remote installations.
3. Corrosion Resistance: AISI 316 stainless steel ensures longevity.
4. Precision Measurement: ±0.49 Ω DC resistance guarantees signal stability.

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
