Description

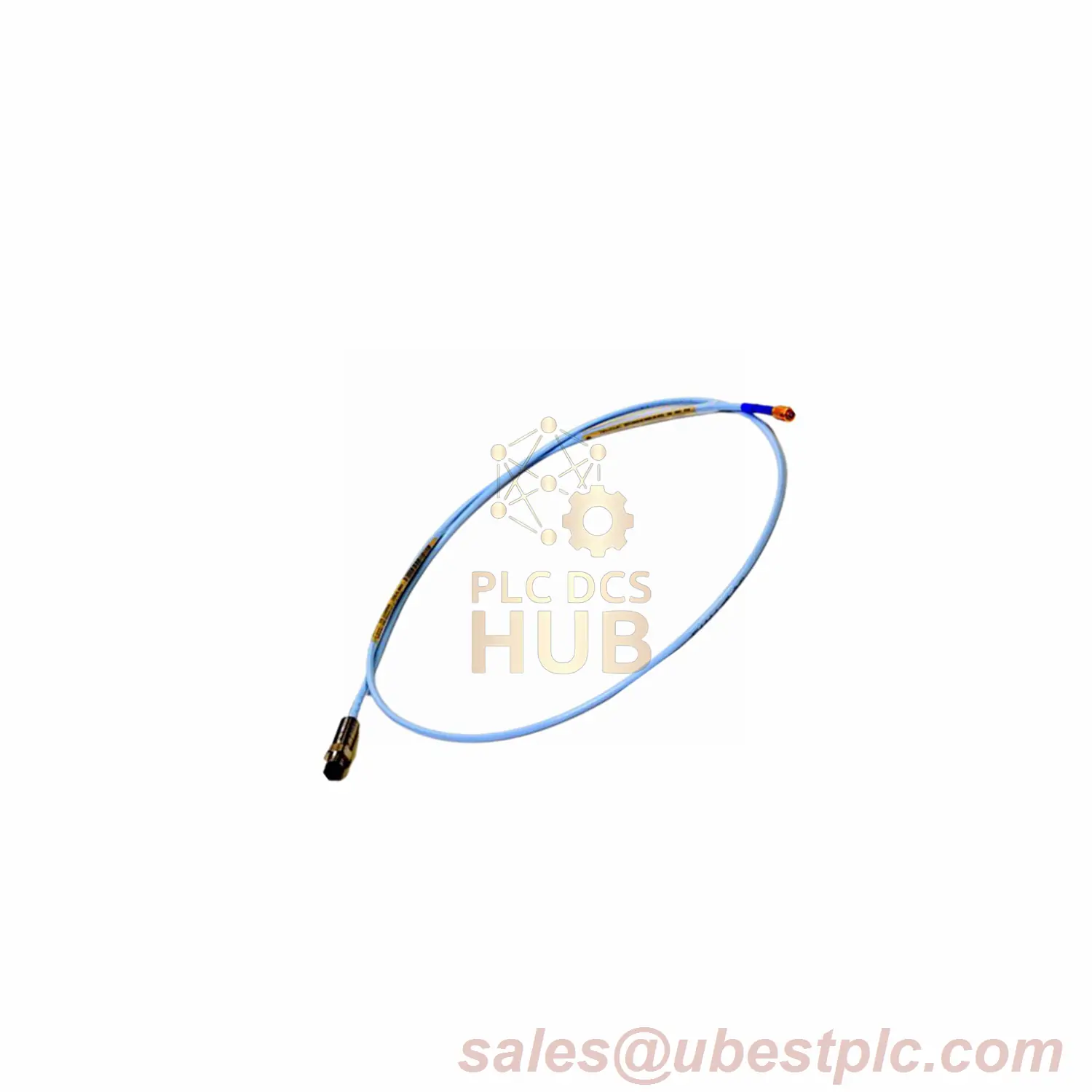

Bently Nevada 3300 XL 8mm Reverse Mount Proximity Probe System
Premium vibration monitoring probes for industrial machinery. Designed in USA with global safety certifications (CSA/ATEX/IECEx). Ideal for predictive maintenance in turbines, compressors, and rotating equipment.
TECHNICAL DATA
- Brand: Bently Nevada
- Model: 330106-05-30-10-02-05
- Series: 3300 XL 8mm Reverse Mount
- Resistance: 7.59Ω ±0.50 (center to outer conductor)
- Temp Range: -52°C to +177°C (Extended: +218°C tip)
- Cable Length: 1.0 meter (3.3 ft)
- Connector: Miniature ClickLoc coaxial (Gold-plated)
- Thread: M10×1 (Max engagement: 15mm)
- Weight: 323 g/m (11.4 oz/ft)
- Ingress Protection: Viton® O-ring pressure seal
- Humidity: <3% ASF change at 93% RH
INSTALLATION GUIDE
- Mount with M10×1 threads (max 15mm engagement)
- Avoid bending cable within 15cm of probe tip
- Do not expose to temps below -34°C before installation
- Max tensile load: 330N (75 lbf) at probe case
DIAGNOSTICS & MAINTENANCE
- Check resistance regularly (spec: 7.59Ω±0.50)
- Inspect for cable abrasion/damage
- Monitor for humidity-related ASF drift
- Replace if exposed to over-temperature events
PACKAGING LIST
- 1 × Probe assembly (1.0 meter)
- Installation documentation
- Specification sheet
SHIPPING METHODS
Global express delivery via FedEx, UPS, or DHL. Tracking provided.
FREQUENTLY ASKED QUESTIONS
Q: What’s the maximum temperature rating?
A: Standard: 177°C, Extended range: 218°C (tip), 260°C (cable)
Q: Is this explosion-proof?
A: Yes – certified for ATEX, CSA, and IECEx hazardous areas
Q: Can I use this in high-humidity environments?
A: Yes, tested at 93% humidity with <3% ASF change
Q: What cable options exist?
A: Standard FEP (177°C) or Extended PFA (260°C) in 0.5-9m lengths
