Bently Nevada 3300 NSv Reverse Mount Probe
Description

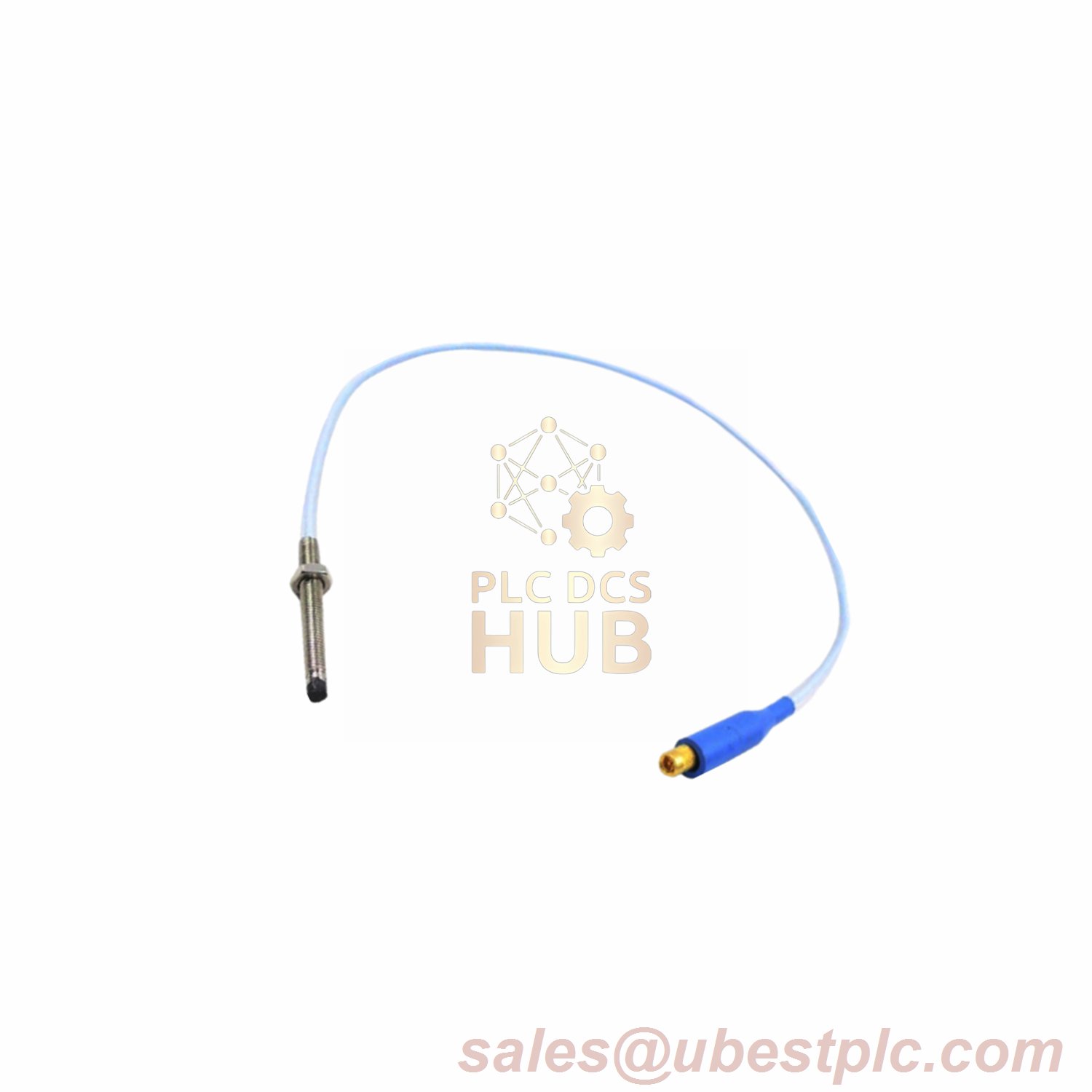

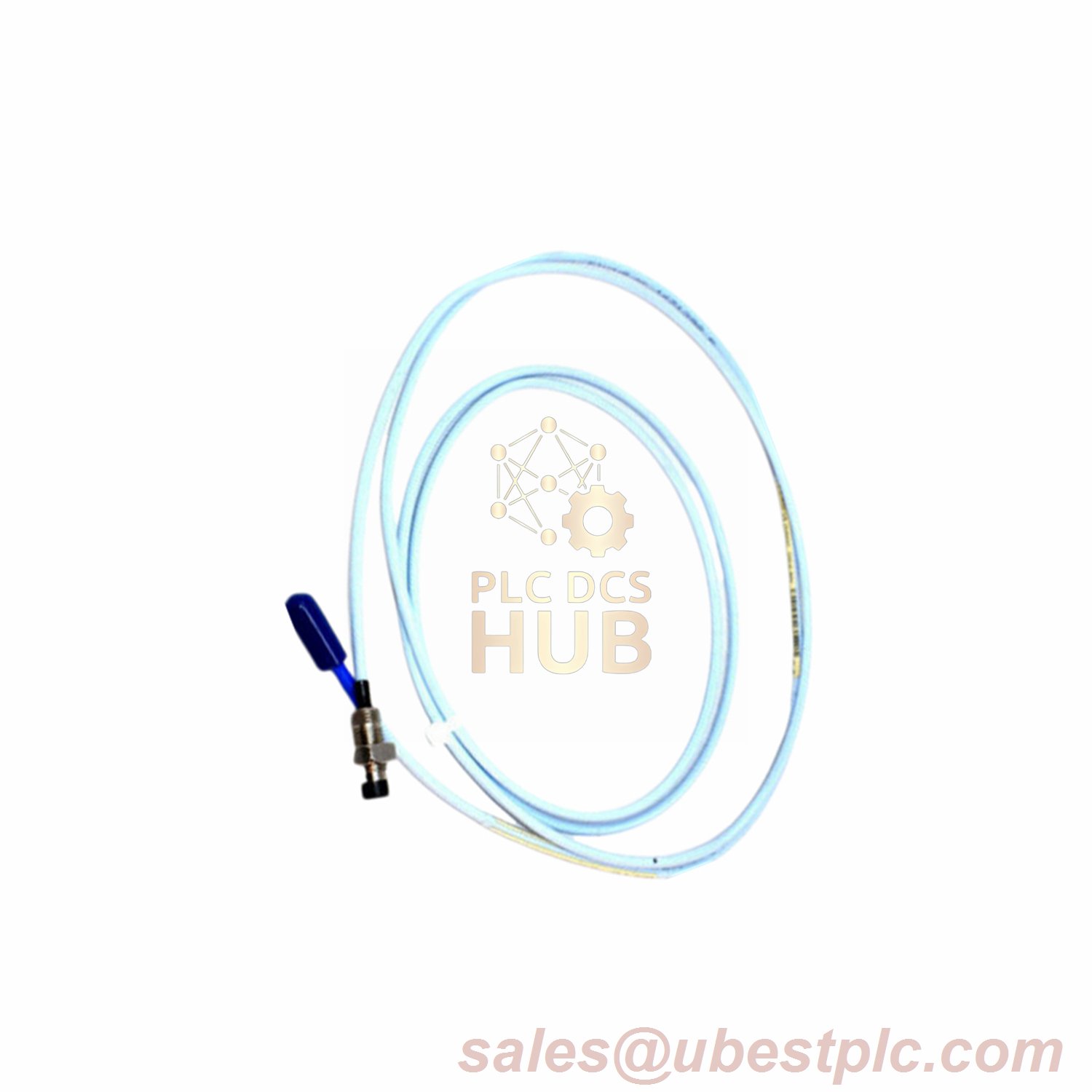

The 3300 NSv Reverse Mount Probe 330907-05-30-10-02-00 is engineered for harsh industrial environments, featuring M10x1 threads and enhanced chemical resistance. With a 1.0 m armored cable and gold-plated ClickLoc connectors, this probe delivers superior performance in process compressors and rotating machinery applications.
Technical Data
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| 330907-05-30-10-02-00 Suffix | 05-30-10-02-00 (M10x1 threads | 1.0m cable | ClickLoc connector) |
| Probe Resistance | 4.2Ω ±0.5 @ 1.0m |
| Linear Range | 0.25–1.75mm (-1 to -13 Vdc) |
| Temperature Range | -52°C to +177°C operational |
| Case Material | AISI 304 stainless steel |
| Thread Engagement | 15mm max (M10x1) |
Why Choose This Probe?
- Viton O-ring seals for pressure differentials
- PPS tip material resists chemical corrosion
- Reverse-mount design simplifies installation in tight spaces
