Bently Nevada | Standard Mount Probe 21505-000-016-10-02

Description

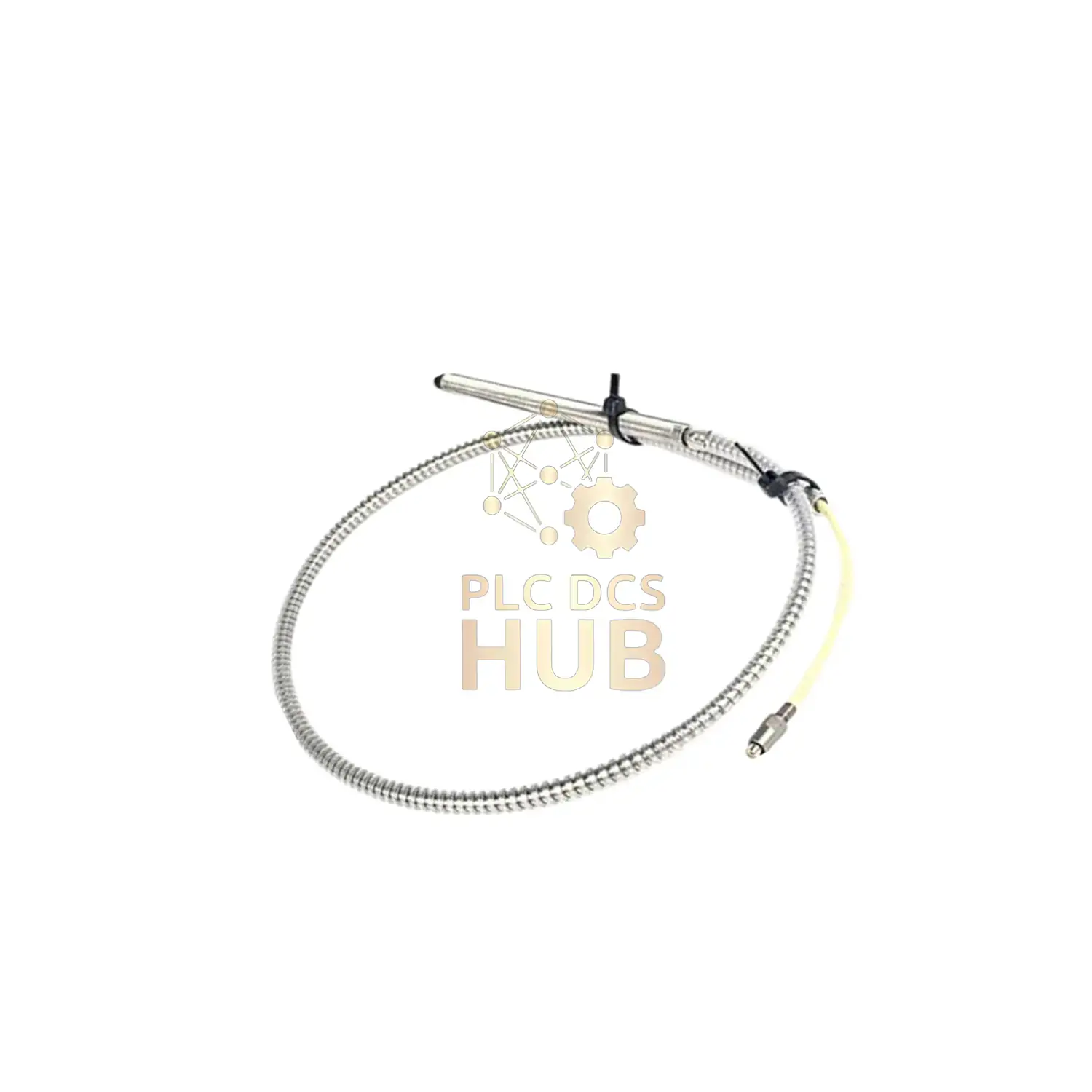

NEW Bently Nevada 21505-000-016-10-02 Proximity Vibration Probe

 Description

Brand-new factory-sealed vibration sensor for industrial machinery monitoring. Features stainless steel armor and corrosion-resistant tip. Ideal for precise vibration measurement in harsh environments.

Technical Data

• Brand: Bently Nevada
• Model: 21505-000-016-10-02
• Series: 7200 Proximity Transducer
• Range: 80 mils (2.0 mm)
• Accuracy: ±4% (system calibrated)
• Output: 200 mV/mil (7.87 V/mm)
• Temp Range:
  -60°F to +350°F (-51°C to +177°C)
• Power: -17.5V to -26V DC, 12mA max
• Response: 0-10 kHz

 Core Specifications

• Diameter: 8 mm
• Threads: 3/8-24
• Cable: 1.0 meter armored
• Connector: Miniature male coaxial
• Weight: 1.3 lbs (0.59 kg)
• Chemical Resistance: Oil, acids, solvents

Packaging List

• 1x Vibration Probe
• Factory packaging

 Shipping

Global delivery via: FedEx • UPS • DHL

 Installation Guide

1. Mount using 3/8-24 threads
2. Ensure 10 mils (0.25 mm) gap from target
3. Connect coaxial cable to monitor

 FAQ

Q: Cable length options?
A: Standard 1.0m (39″) ±0.25m

Q: Chemical resistance?
A: Withstands oil, 10% sulfuric acid, and solvents

Q: Warranty period?
A: 12 months from shipment date
