Bently Nevada Vibration Accelerometer: Precision Motion Detection
Industrial-Grade Vibration Monitoring

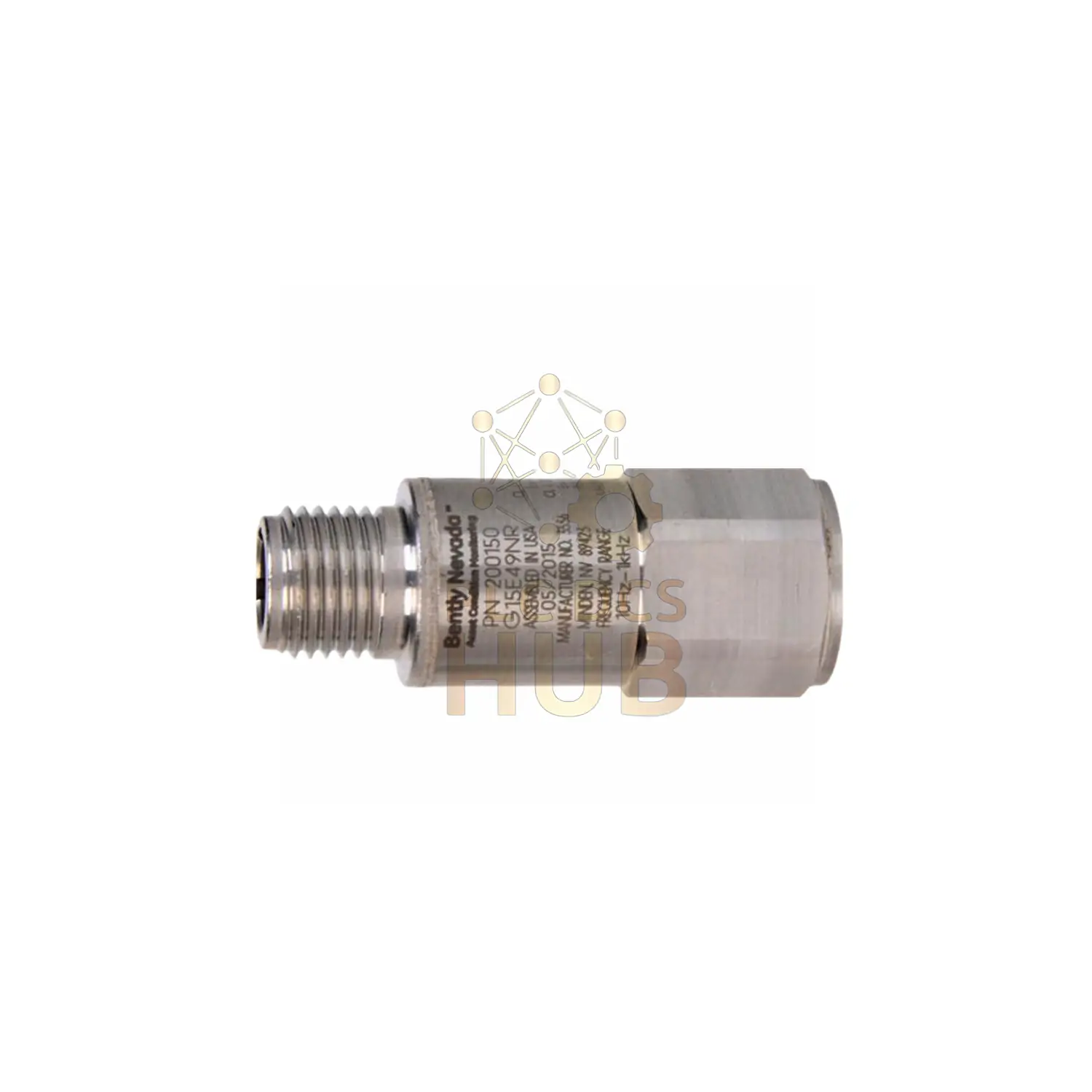

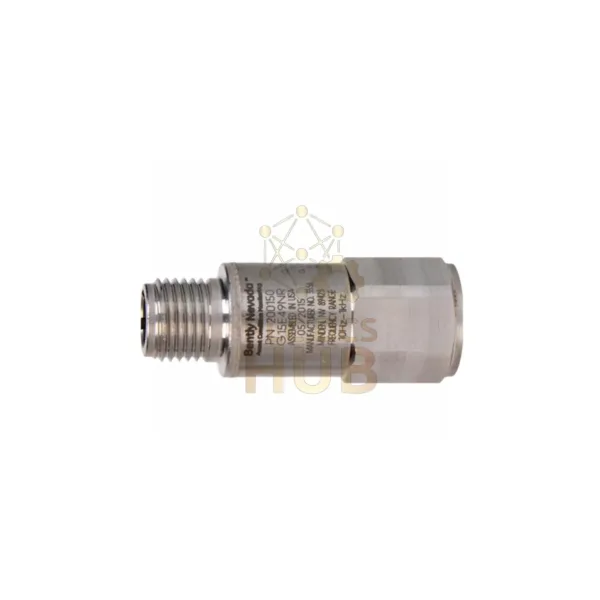

New Bently Nevada 200150-05-05 accelerometer for Trendmaster systems. Made in USA with global certifications. Features ceramic shear sensing and stainless steel housing. Optional COO available.
Technical Specifications
- Manufacturer: Bently Nevada
- Full Part No: 200150-05-05
- Suffix Details:
- First 05: 3/8-24 to 1/4-28 UNF mounting stud
- Second 05: CSA/ATEX/IECEx approvals
- Sensitivity: 100mV/g @80Hz
- Range: ±25g (±245m/s²)
- Frequency Response: 10-1000Hz
- Resonant Frequency: >20kHz
- Linearity: ±2% (1-10g)
- Operating Temp: -40°C to +105°C
Installation Features
- 3/8-24 female mounting thread
- 1-3/8″ hex plate stud included
- Torque range: 2-5 ft·lbf
- Compact size: 17.5×45.7mm
Electrical Characteristics
| Parameter | Value |
|---|---|
| Excitation Voltage | 4.7-5.5VDC |
| Bias Voltage | +2.5±0.23V |
| Current Draw | <800μA |
| Settling Time | ≤300ms |
Package & Warranty
- New in factory packaging
- Mounting hardware included
- 12-month manufacturer warranty
Global Shipping
Fast delivery via FedEx, UPS or DHL. International tracking provided.
Expert Answers
Q: What’s the shock resistance?
A: Withstands 5,000g peak shock loads
Q: Humidity tolerance?
A: 100% condensing humidity (non-submerged)
Q: Sensing technology?
A: Ceramic shear element in 316L stainless housing
