Compact Vibration Monitoring: Bently Nevada Short-Cable Solution
Space-Saving Machine Health Sensor

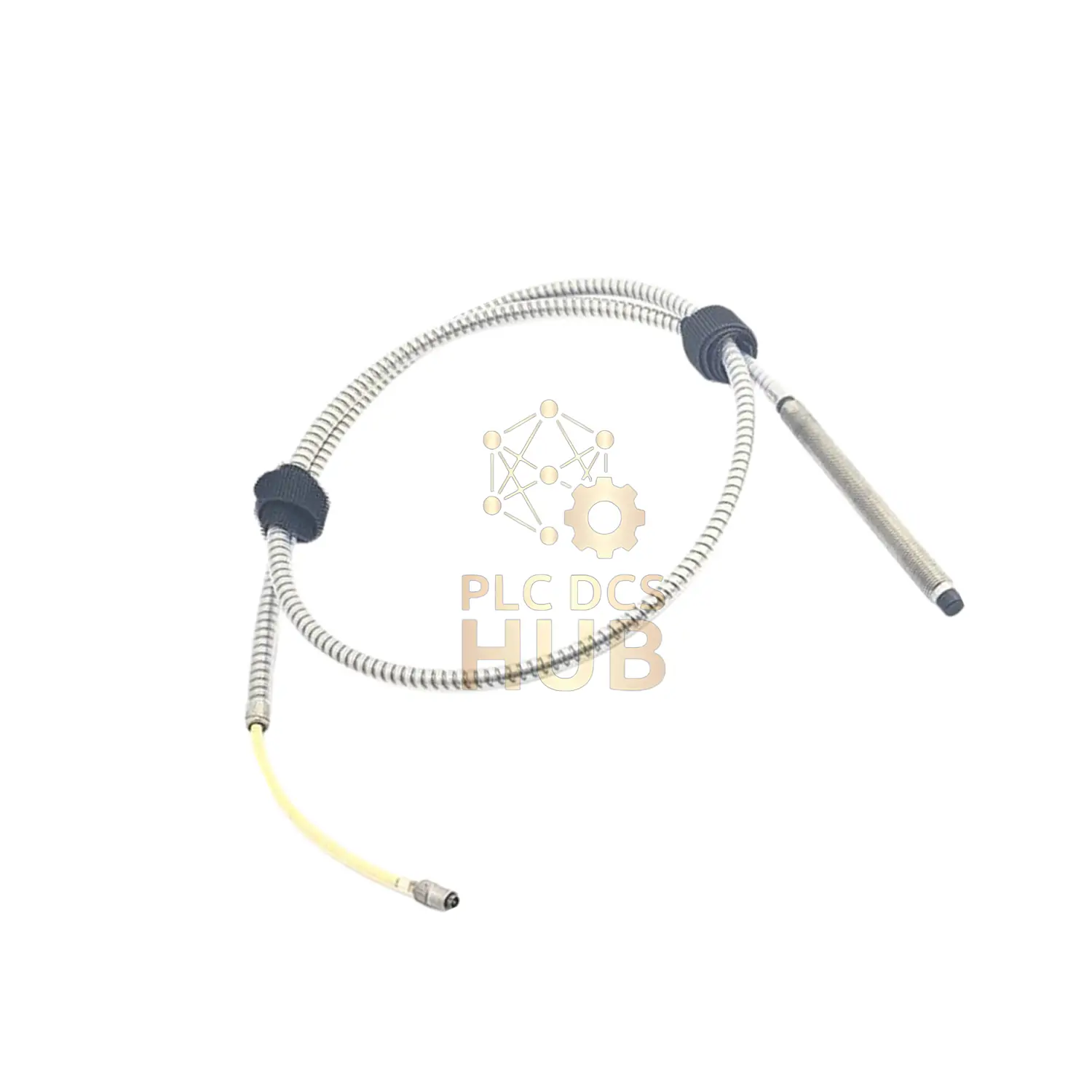

New factory-packed Bently Nevada 21505-00-12-05-02 proximity probe. Features 120mm case and 0.5m cable for tight spaces. Industrial durability with 12-month warranty.
Technical Specifications
- Brand: Bently Nevada
- Full Part No: 21505-00-12-05-02
- Configuration Details:
- 00: Zero unthreaded section
- 12: 120mm (4.72″) case length
- 05: 0.5m cable (20±3″)
- 02: Miniature coaxial connector
- Range: 0.25-2.0mm gap detection
- Output Sensitivity: 7.87V/mm
- Linearity Error: < 0.02mm (system calibrated)
- Frequency Response: DC to 10,000Hz
- Power Consumption: 12mA max at -24VDC
Installation Guide
- Position 0.25mm from target surface
- Thread mount using 3/8-24 pattern
- Connect miniature coaxial plug
- Apply -18V to -26V DC power
Model Comparison
| Feature | This Model (21505-00-12-05-02) | 21505-00-20-10-02 | 21505-00-72-10-02 |
|---|---|---|---|
| Case Length | 120mm (4.72″) | 2.0″ | 7.2″ |
| Cable Length | 0.5m (20″) | 1.0m (39″) | 1.0m (39″) |
| Best For | Control panel proximity | Standard installations | Deep-reach applications |
Package & Warranty
- Factory-sealed original packaging
- 12-month manufacturer warranty
Global Shipping Options
Fast delivery via FedEx, UPS or DHL. International shipping available.
Customer Questions
Q: Cable length tolerance?
A: 0.5m +0.13m/-0.05m (20″ +5″/-2″)
Q: Minimum installation gap?
A: 0.25mm (10 mils) from target surface
Q: Vibration frequency limit?
A: Measures vibrations up to 10,000 cycles per second
